Headlamp Leveling Rear Suspension Height Sensor Replacement

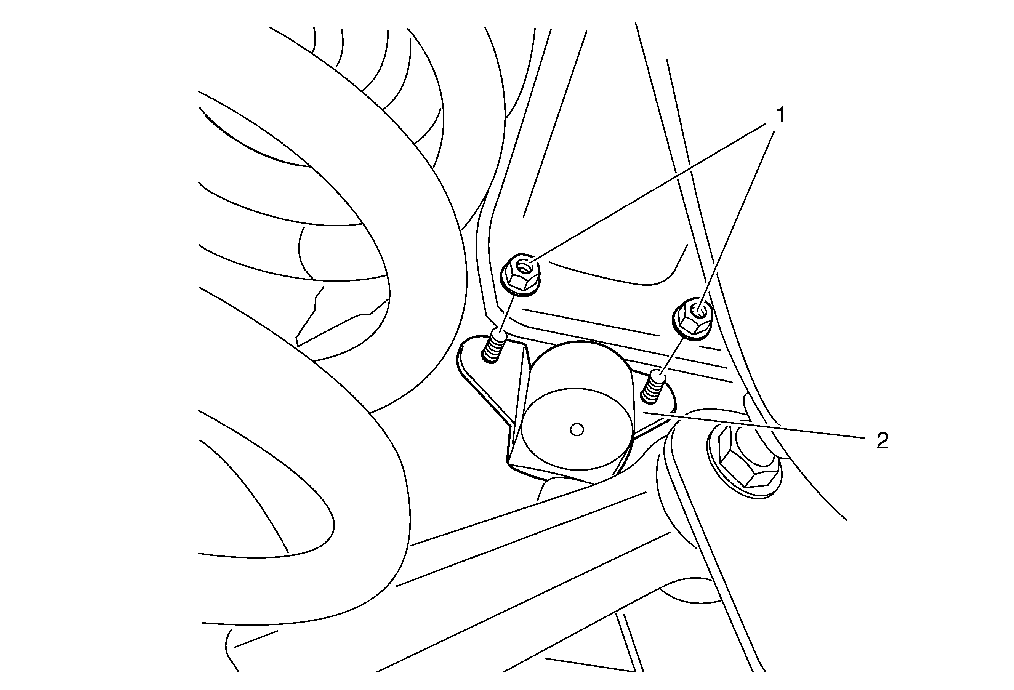

Fig 1: Headlamp Leveling Rear Suspension Height Sensor And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Headlamp Leveling Rear Suspension Height Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Headlamp Leveling Rear Suspension Height Sensor Procedure Disconnect the electrical connector. Set up and program the headlamp control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Headlamp Leveling Rear Suspension Height Sensor Fastener (Qty: 2)

CAUTION:

Tighten
5 N.m (44 lb in)

Headlamp Leveling Rear Suspension Height Sensor

Procedure

Disconnect the electrical connector.
Set up and program the headlamp control module. Refer to Control Module References .
