Headlamp Bulb Replacement (TT4 Low Beam)
Headlamp Bulb Replacement (TT4 Low Beam)

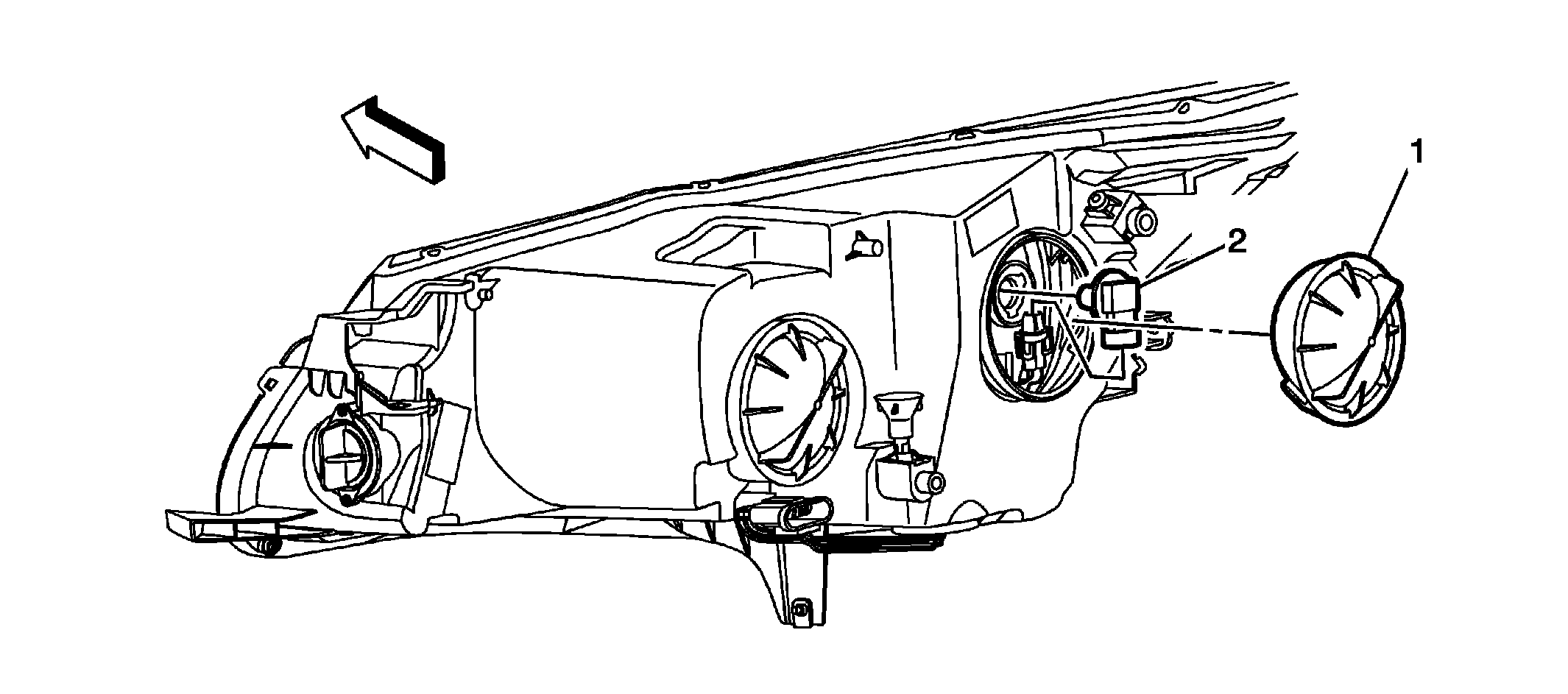

| Callout | Component Name |
|---|---|
| Preliminary Procedure Open and support the hood assembly. |
|
| 1 | Headlamp Bulb Accessory Cover Assembly TIP: Disconnect the electrical connector from the headlamp bulb socket. |
| 2 | Headlamp Bulb
WARNING:
Refer to Halogen Bulb Warning . Procedure Rotate the bulb socket a quarter turn counter-clockwise and remove. |
