Front Turn Signal Lamp Bulb Replacement
Front Turn Signal Lamp Bulb Replacement

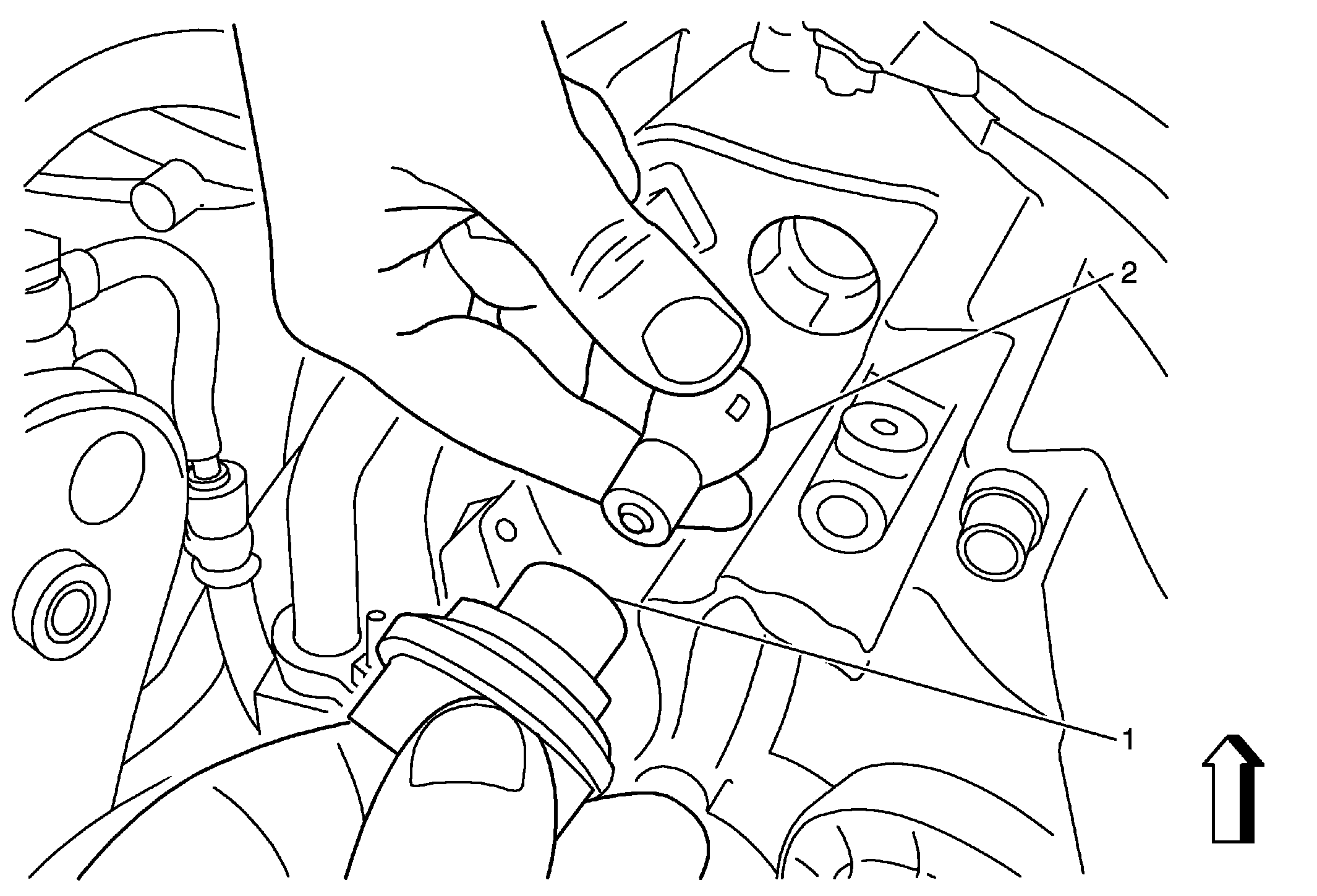

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front turn signal lamp bulb dust cover. |
|
| 1 | Front Turn Signal Lamp Bulb Socket Bracket Procedure Unscrew the bulb socket bracket counterclockwise from the headlamp. |
| 2 | Front Turn Signal Lamp Bulb
WARNING:
Refer to Halogen Bulb Warning . Procedure Remove the bulb from the lamp socket. |
