Front Side Marker Lamp Bulb Replacement
Courtesy of GENERAL MOTORS COMPANY Front Side Marker Lamp Bulb Replacement
| Callout |
Component Name |
Preliminary Procedure
Open and support the hood assembly. |
| 1 |

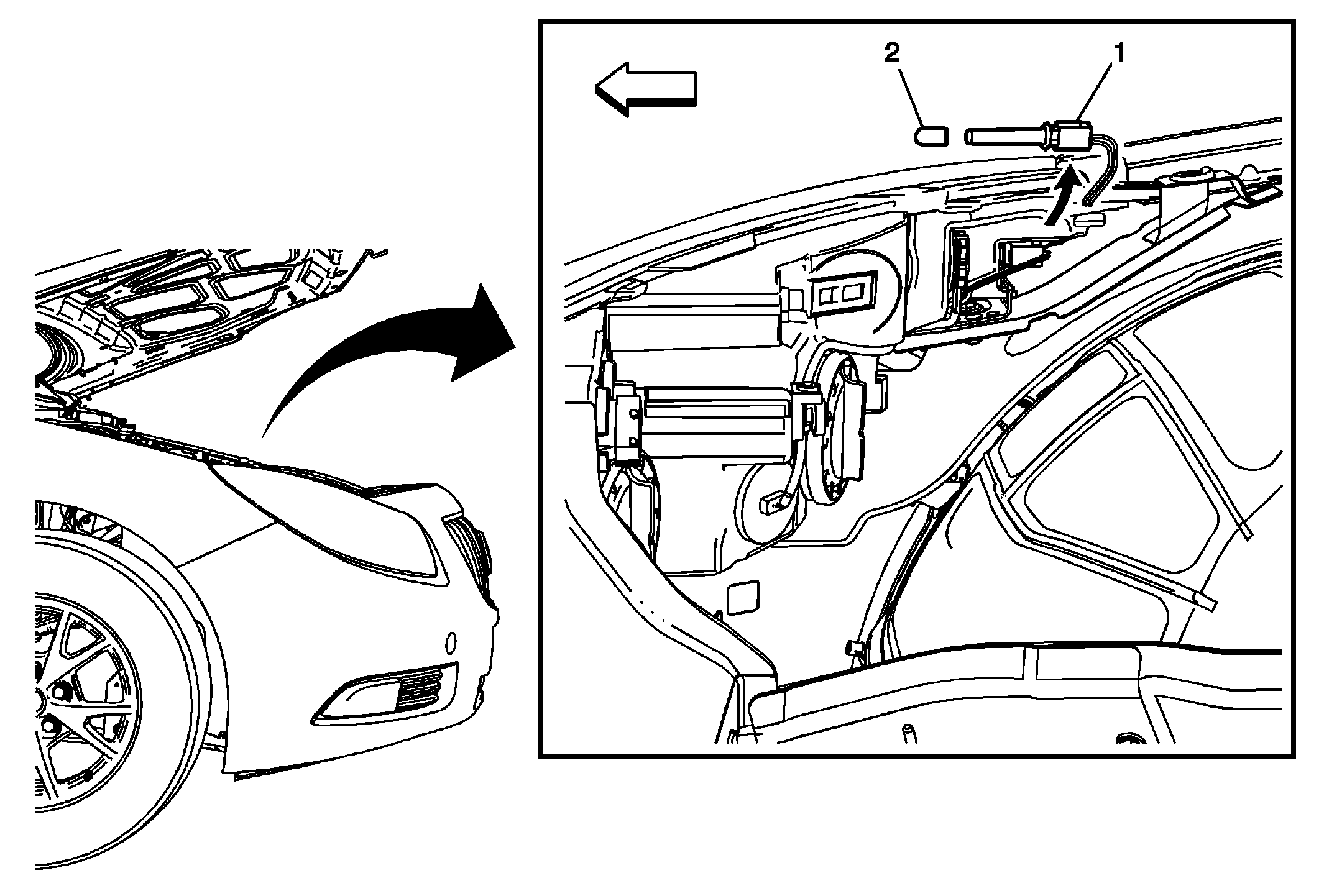

Front Side Marker Lamp Bulb Socket
TIP:
Rotate the bulb socket counter-clockwise and remove the socket from the headlamp assembly. |
| 2 |
Front Side Marker Lamp Bulb |
