Dome and Reading Lamp Replacement

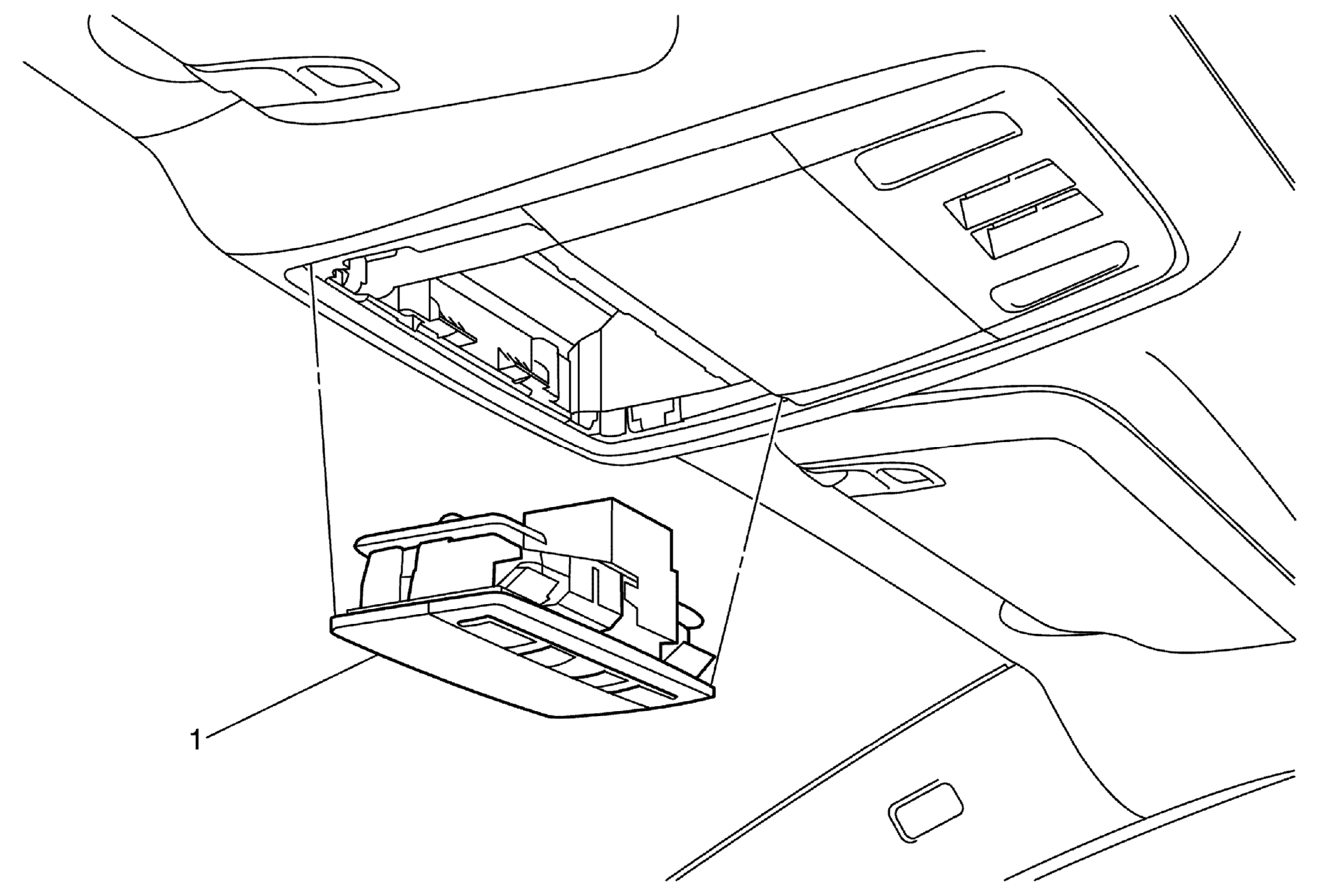

Fig 1: Dome and Reading Lamp
GM2019775Courtesy of GENERAL MOTORS COMPANY
Dome and Reading Lamp Replacement

Callout Component Name
Preliminary Procedure
Remove the roof console reading lamp bezel. Refer to Roof Console Reading Lamp Bezel Replacement .
1 Dome and Reading Lamp
TIP:  Carefully use a flat-bladed tool to release the retainer from the dome and reading lamp to the roof console.
