Instrument Panel and Floor Console Lamps Wiring Schematics

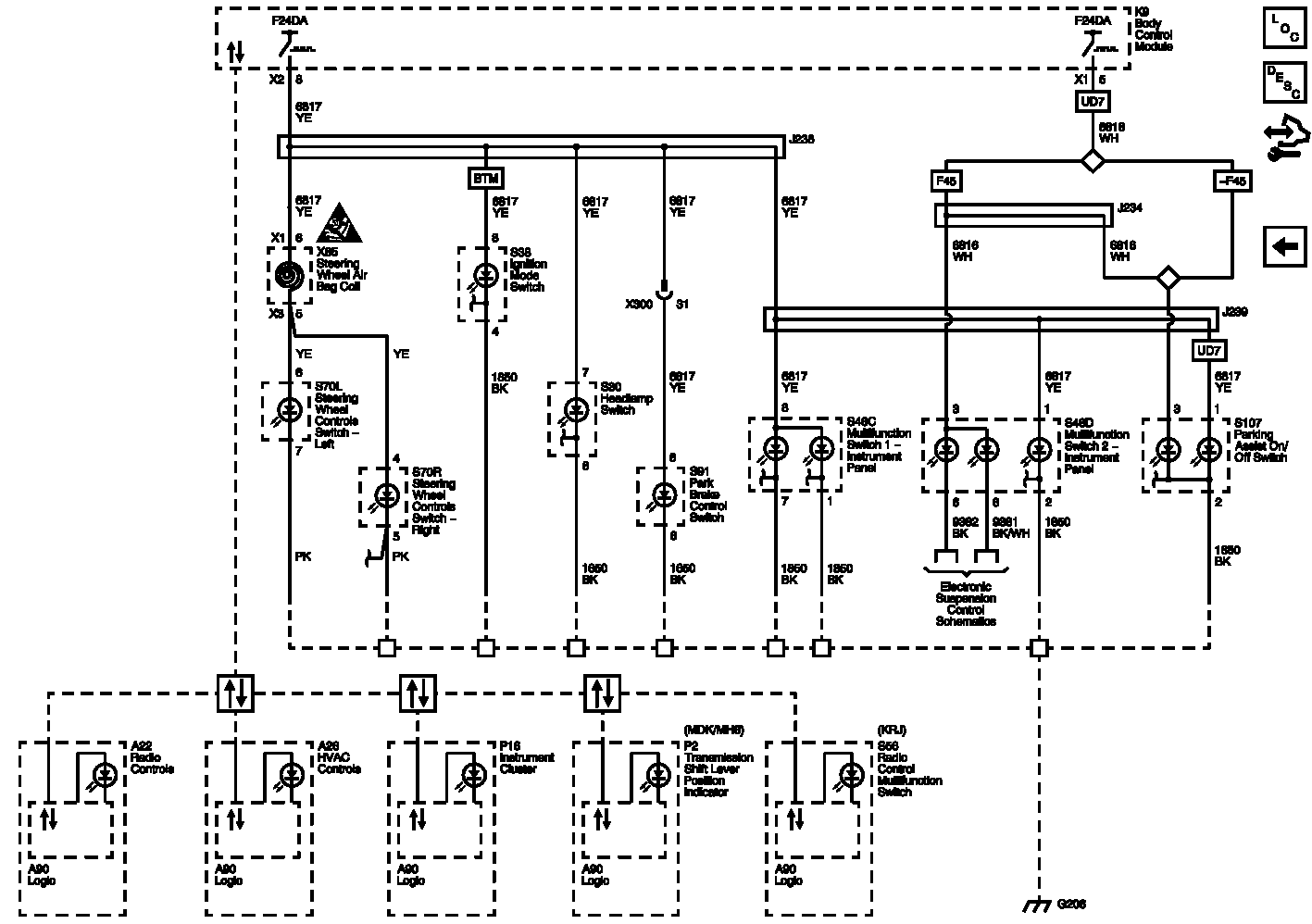

Fig 1: Instrument Panel and Floor Console Lamps Wiring Schematic

GM2611347

Courtesy of GENERAL MOTORS COMPANY
