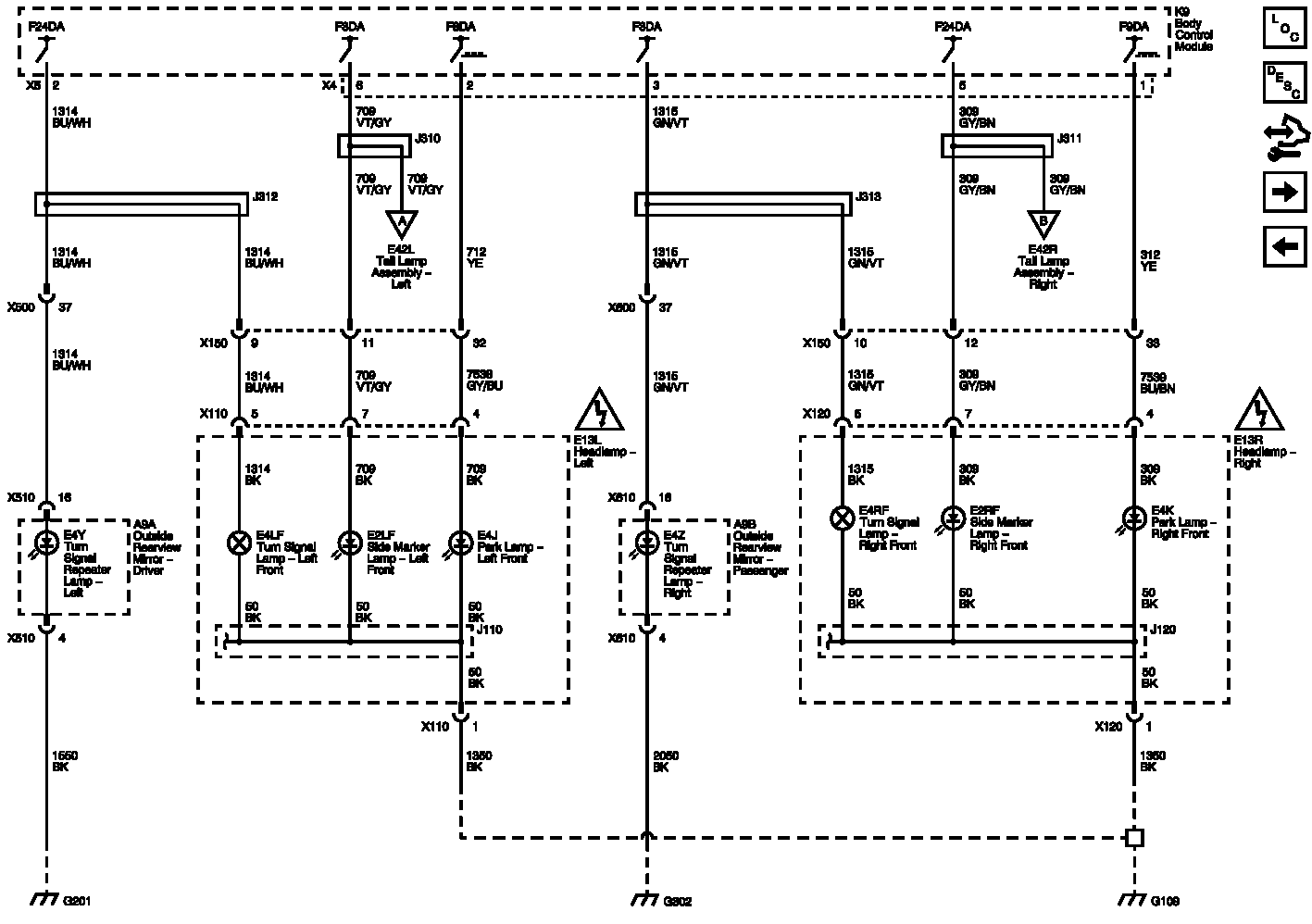

Home >> Buick >> 2012 >> Regal Turbo, Automatic Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Headlights >> Lighting System >> Wiring Diagrams >> Exterior Lights Wiring Schematics >> Front Lamps (T4F) Wiring Schematics
