Transmission Mode Switch: Locations




Powertrain Component Views

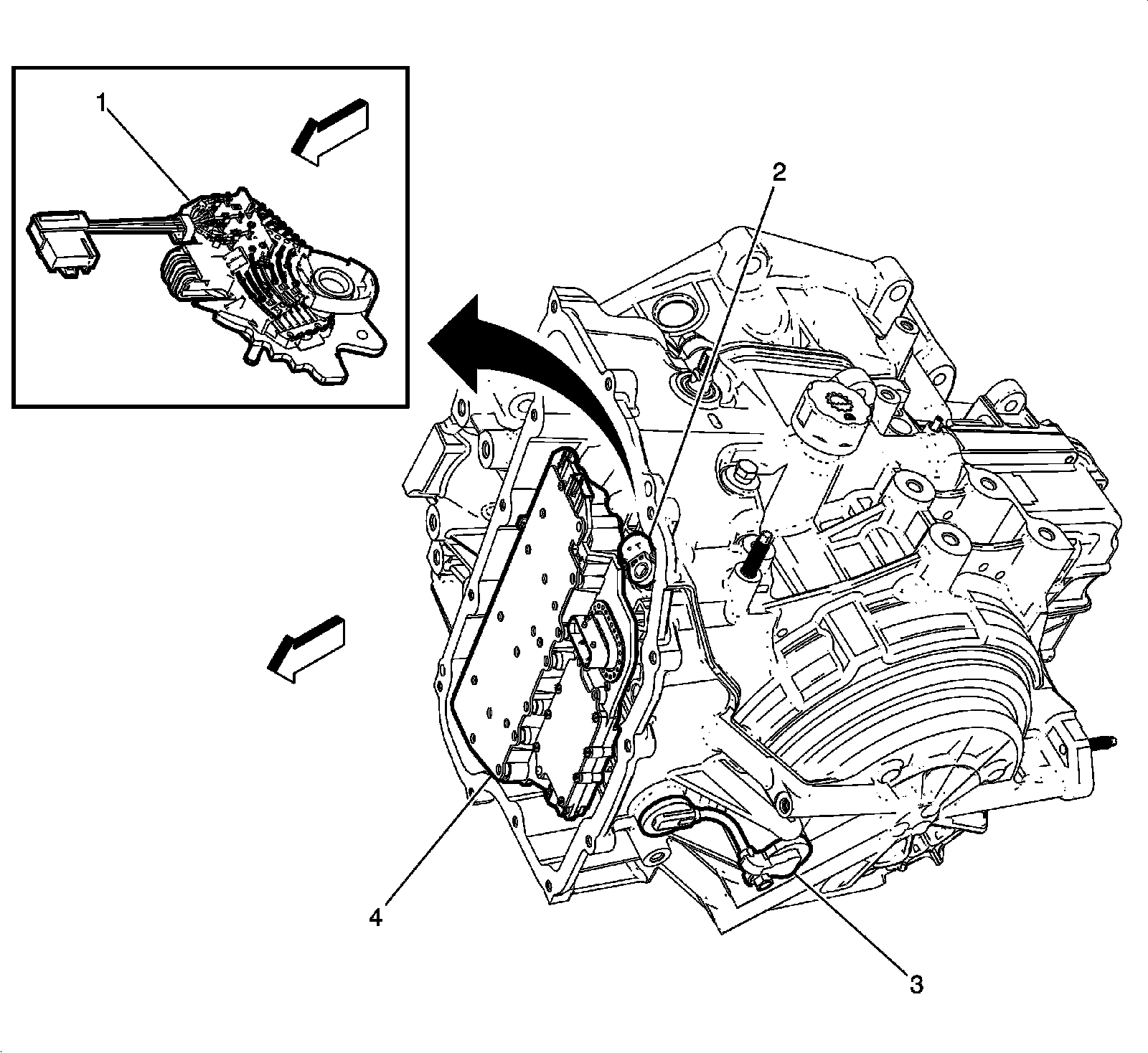

Automatic Transmission Components (MH8)





1 - B15 Transmission Internal Mode Switch

2 - B14A Transmission Output Shaft Speed Sensor

3 - B14C Transmission Input Shaft Speed Sensor

4 - Q8 Control Solenoid Valve Assembly
