Transmission Shift Lever




Instrument Panel/Center Console Component Views

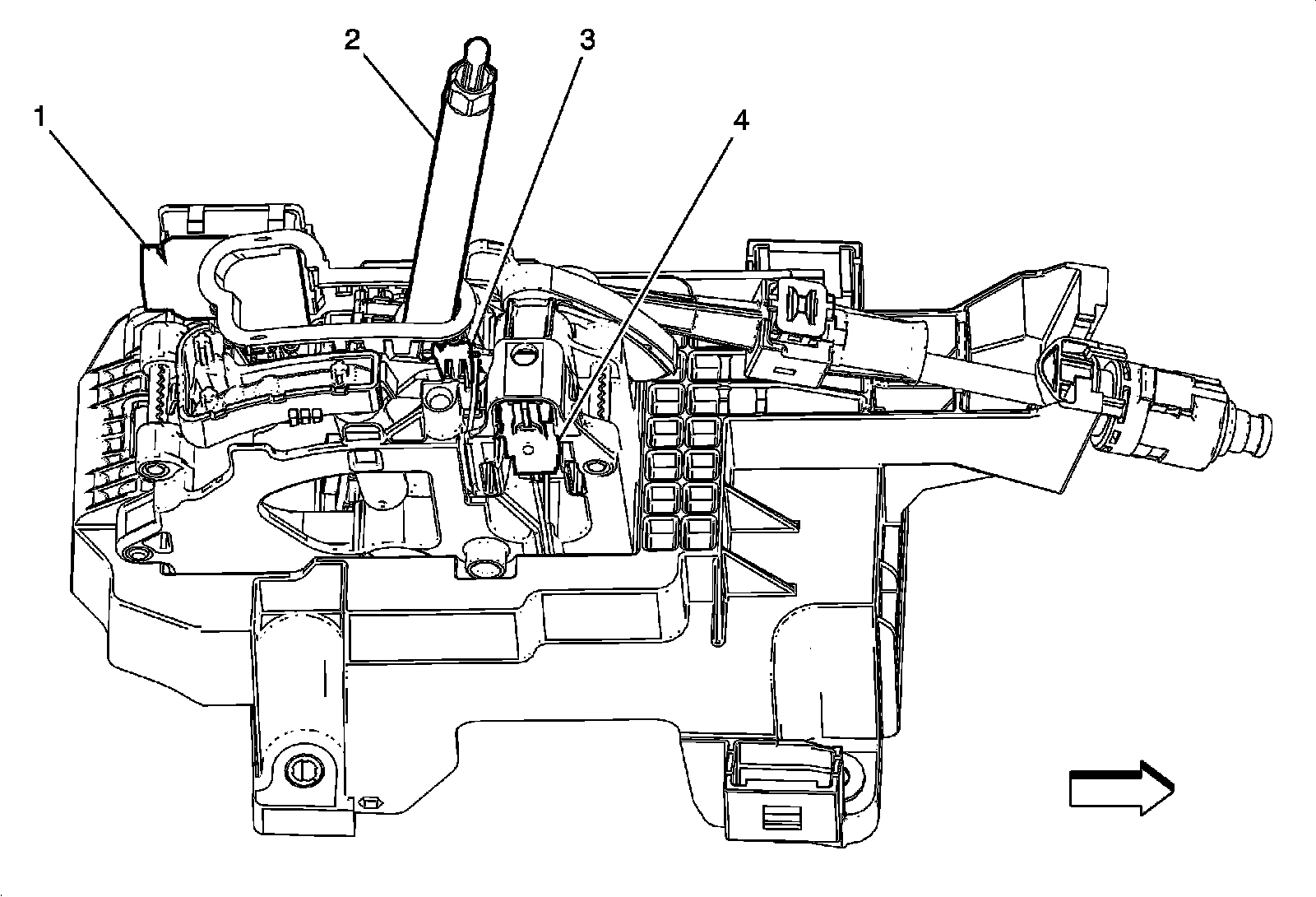

Automatic Transmission Shifter Components (MDK, MH8, MHH or MHK)





1 - S2 Transmission Manual Shift Switch

2 - S3 Transmission Shift Lever

3 - B81B Park Position Switch

4 - M7 Transmission Shift Lock Control Solenoid Actuator
