X50A Fuse Block - Underhood X3 (LUK)
X50A Fuse Block - Underhood X3 (LUK)

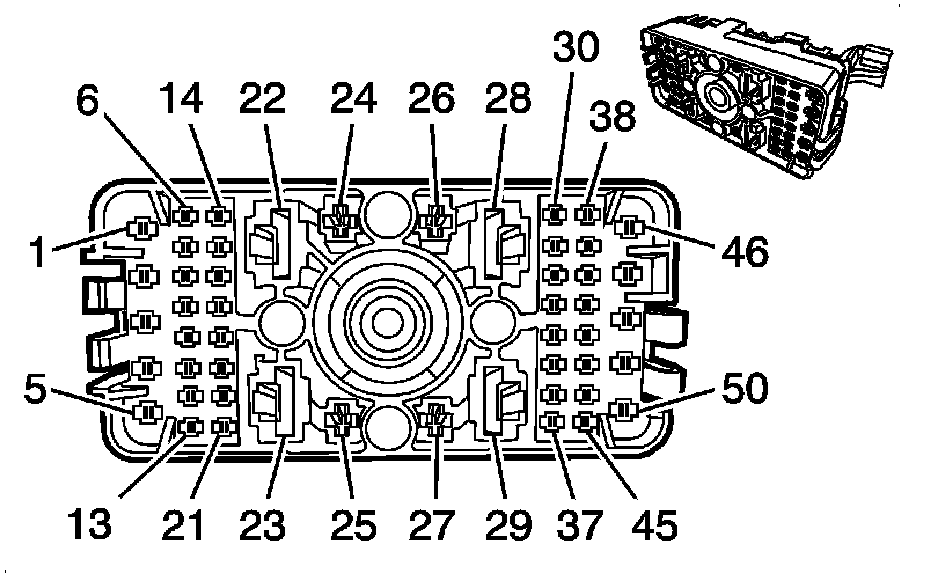

Electrical Center Identification Views

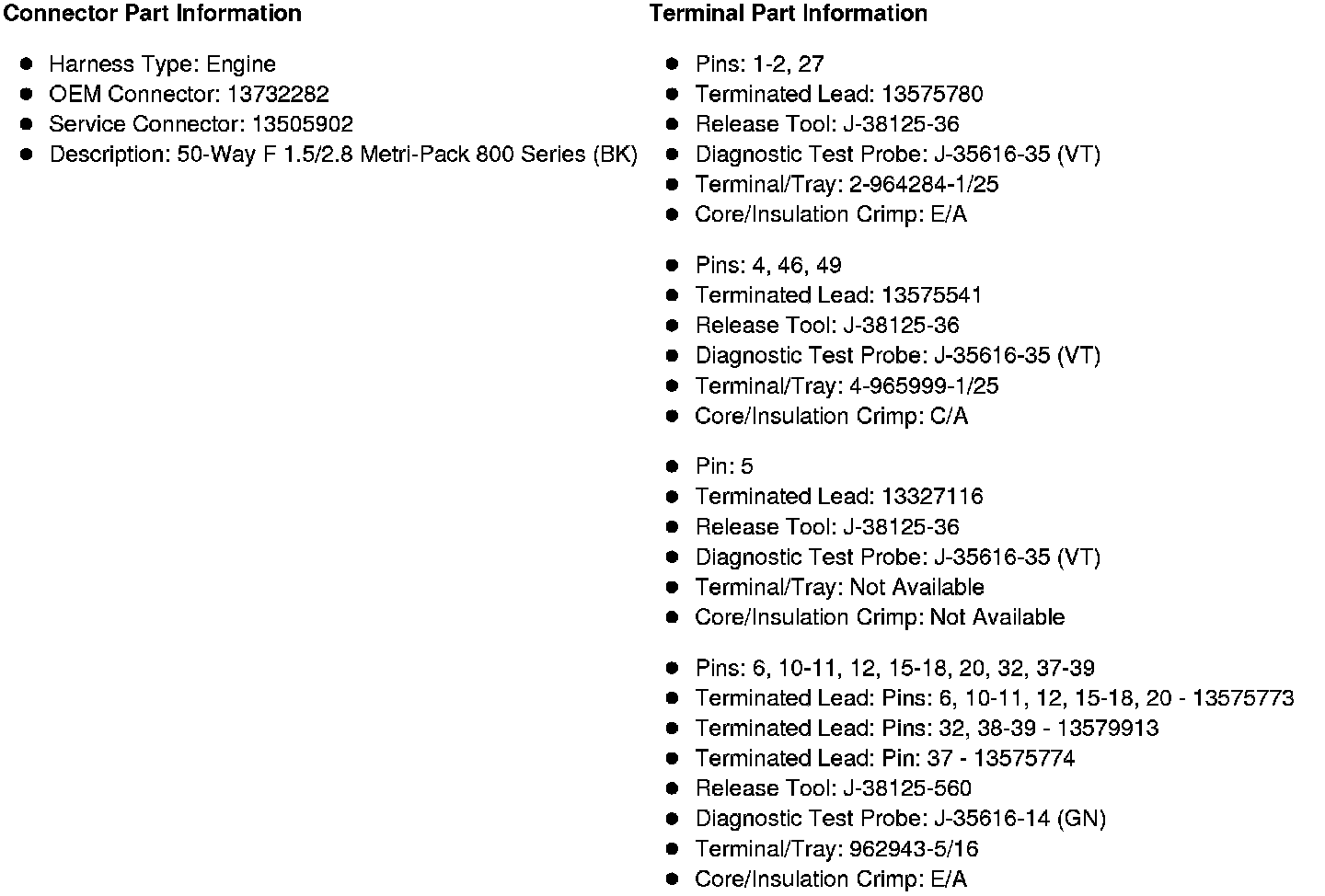

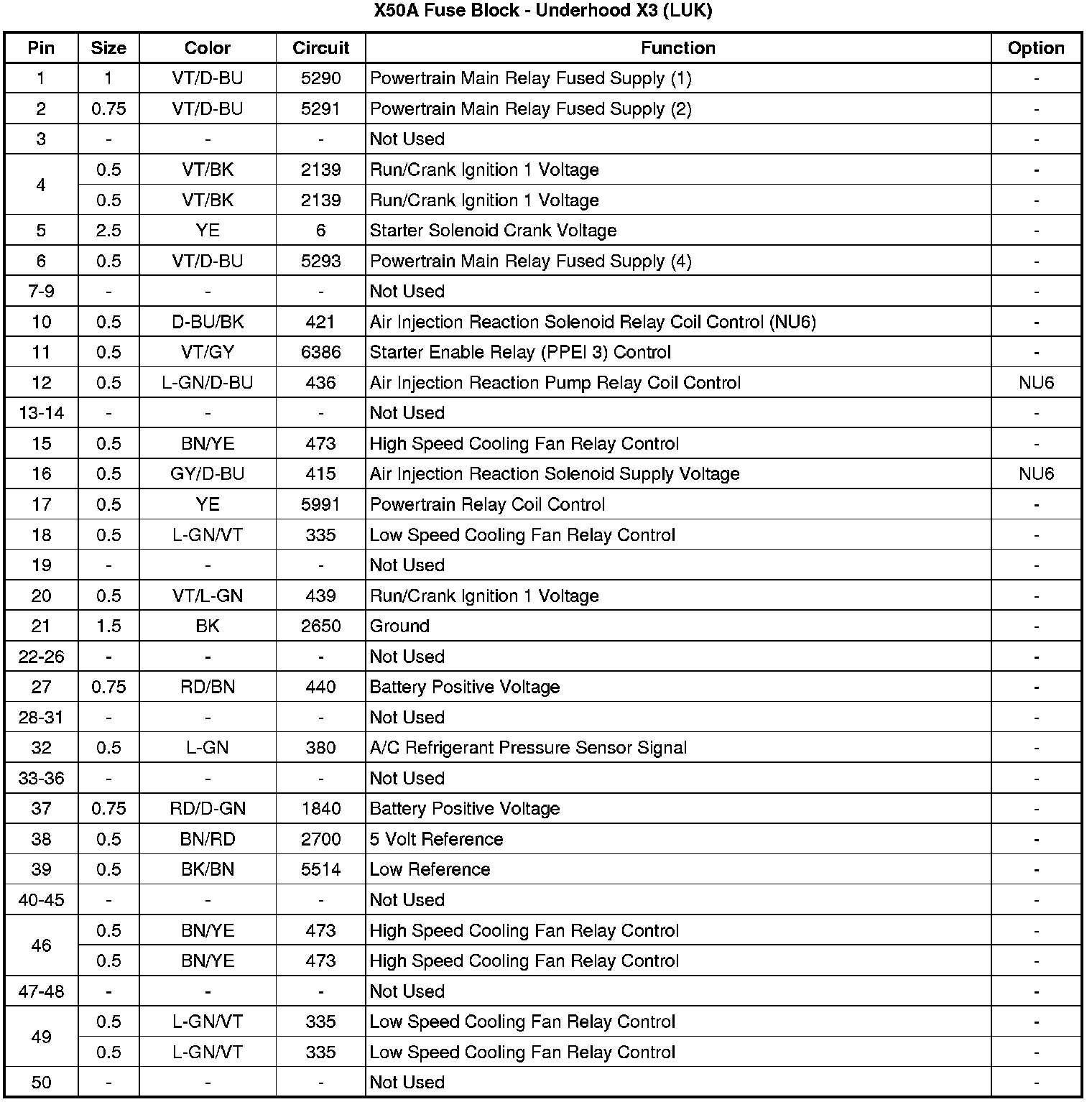

X50A Fuse Block - Underhood X3 (LUK)
