Seat Belt Switch - Passenger

Passenger Compartment/Roof Component Views

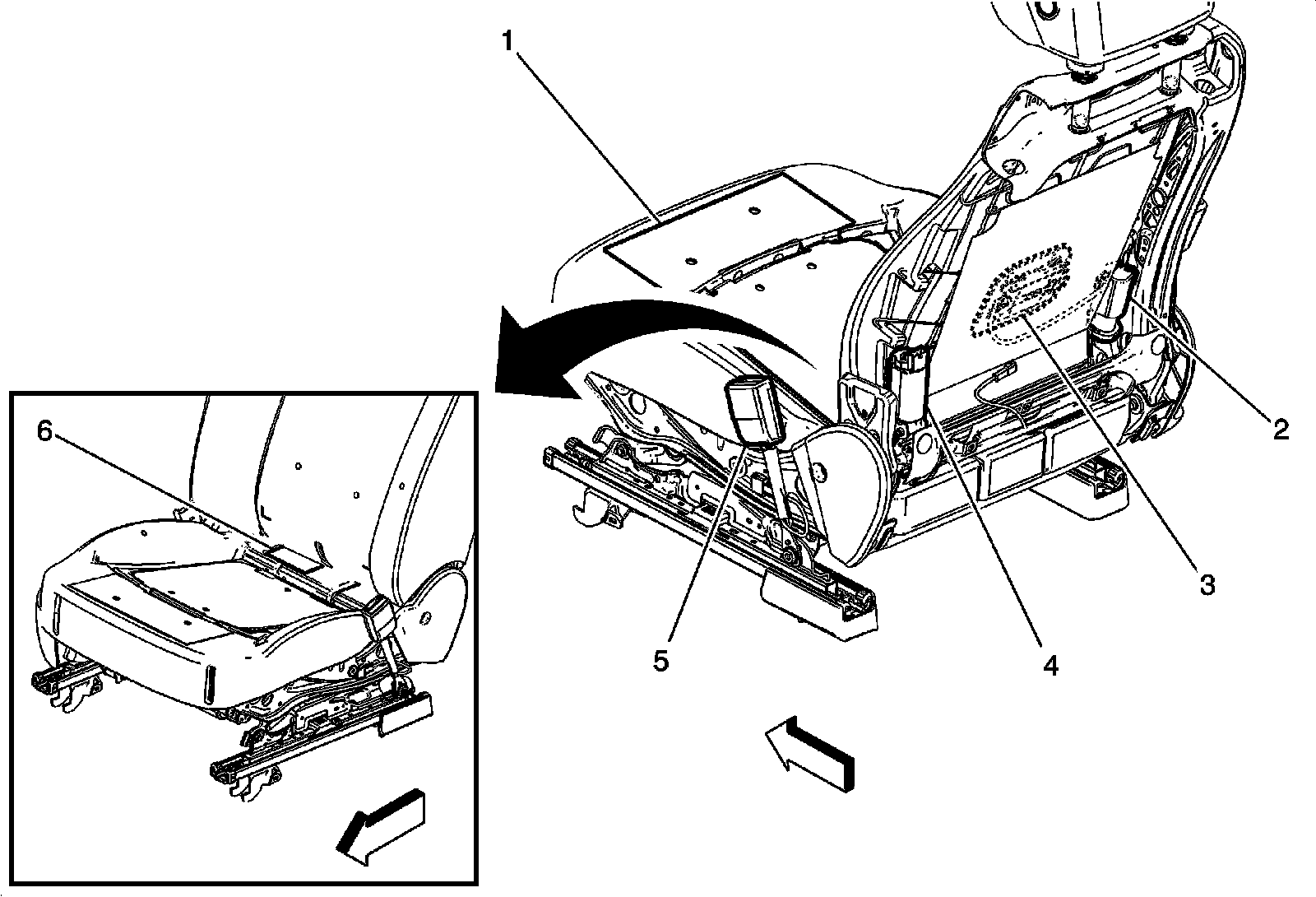

Rear of Passenger Seat Components





1 - E14D Seat Heating Element - Passenger Cushion (KA1)

2 - A14P Seat Lumbar Support Pump - Passenger (APH)

3 - Q51P Seat Lumbar Support Valve Assembly - Passenger (APH)

4 - M56P Seat Recline Motor - Passenger (AG2)

5 - B88P Seat Belt Switch - Passenger

6 - K85 Passenger Presence Detection Module
