Seat Belt Switch - Driver

Passenger Compartment/Roof Component Views

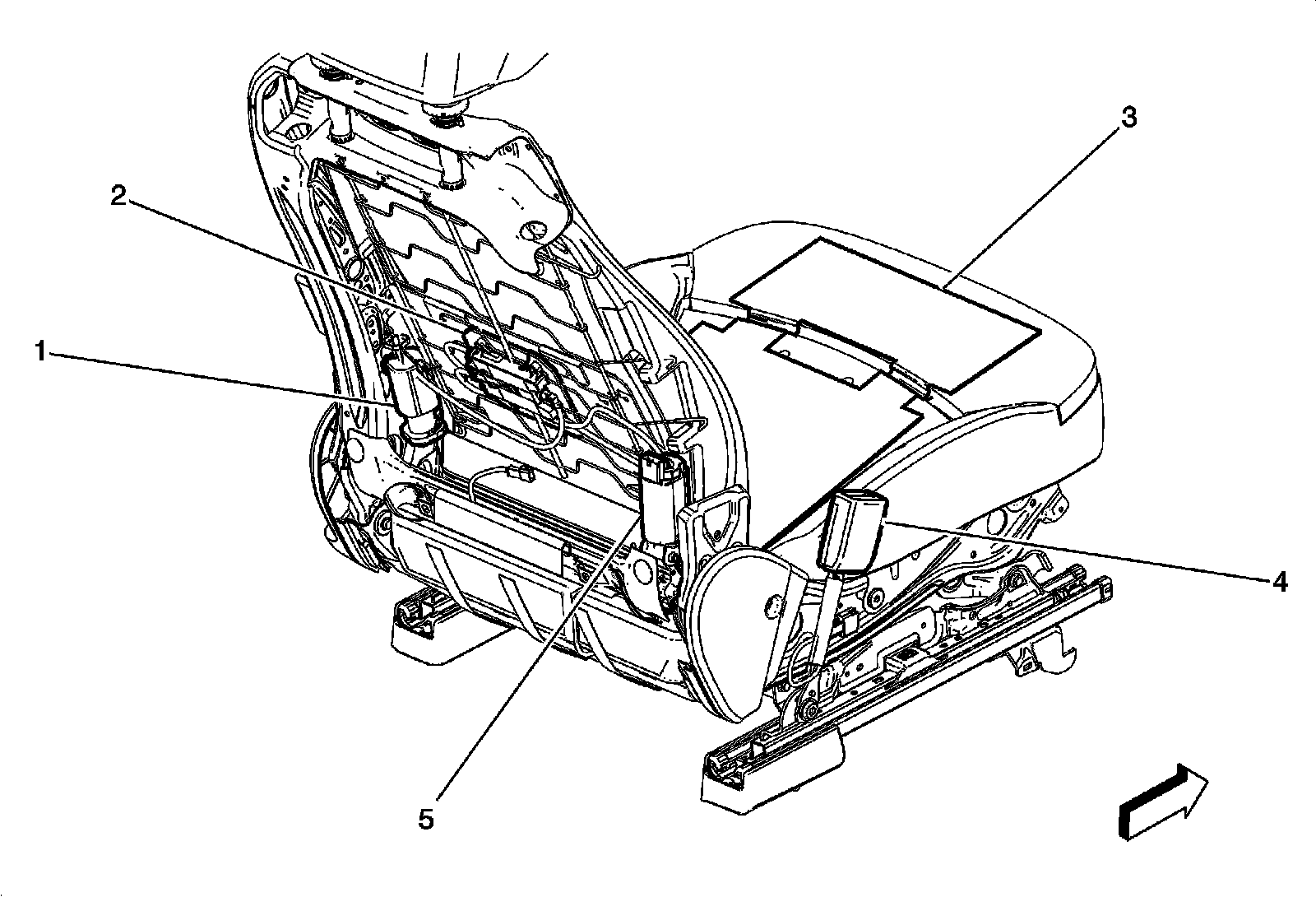

Rear of Driver Seat Components





1 - A14D Seat Lumbar Support Pump - Driver

2 - Q51D Seat Lumbar Support Valve Assembly - Driver

3 - E14B Seat Heating Element - Driver Cushion (KA1)

4 - B88D Seat Belt Switch - Driver

5 - M56D Seat Recline Motor - Driver
