Side Impact Sensor - Right Front




Passenger Compartment/Roof Component Views

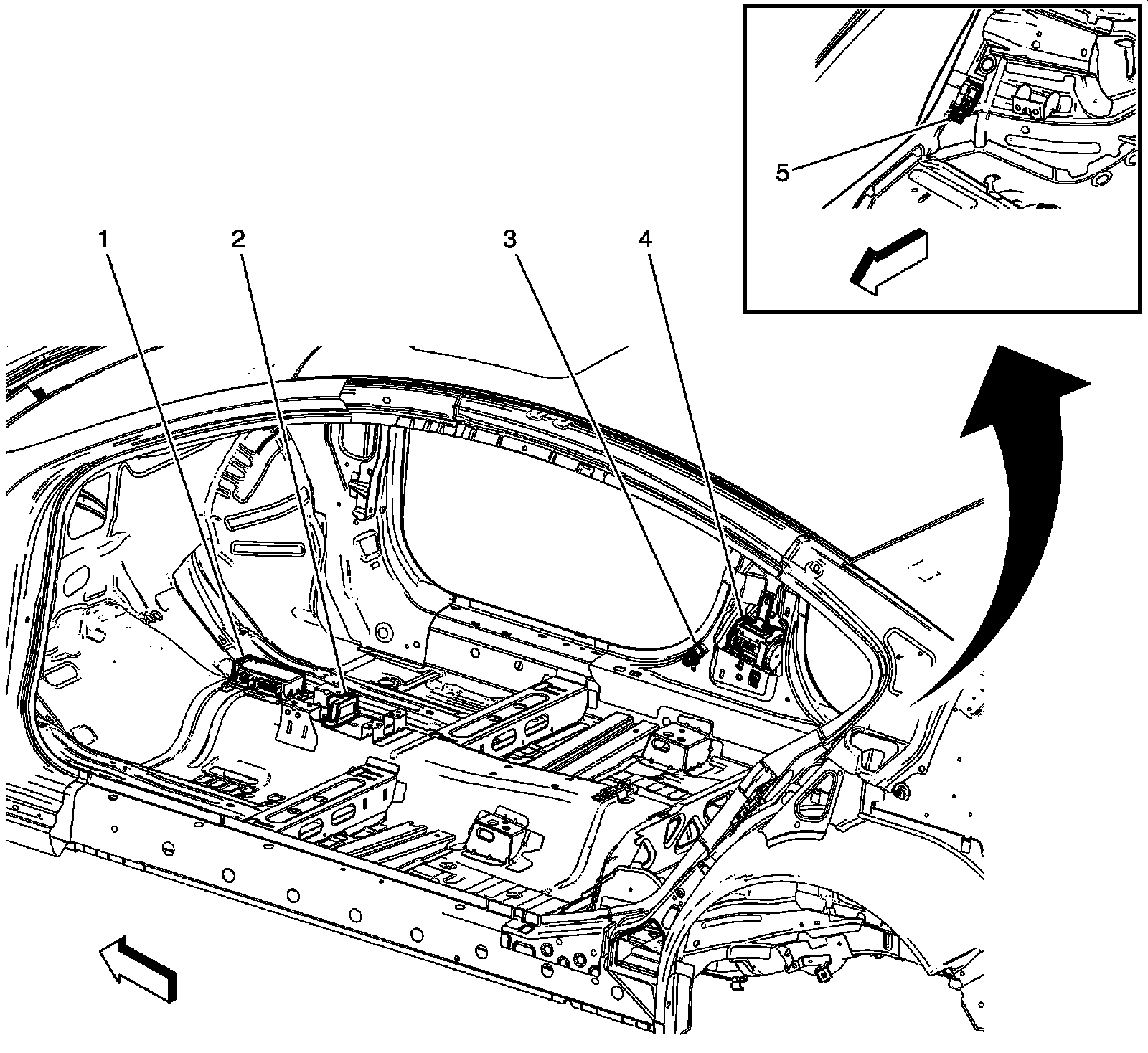

Center and Right Side of Passenger Compartment Components





1 - K36 Inflatable Restraint Sensing and Diagnostic Module

2 - B119 Multi-axis Acceleration Sensor

3 - B63RF Side Impact Sensor - Right Front

4 - F112P Seat Belt Retractor Pretensioner - Passenger

5 - B63RR Side Impact Sensor - Right Rear (AW7)
