Side Impact Sensor - Left Front

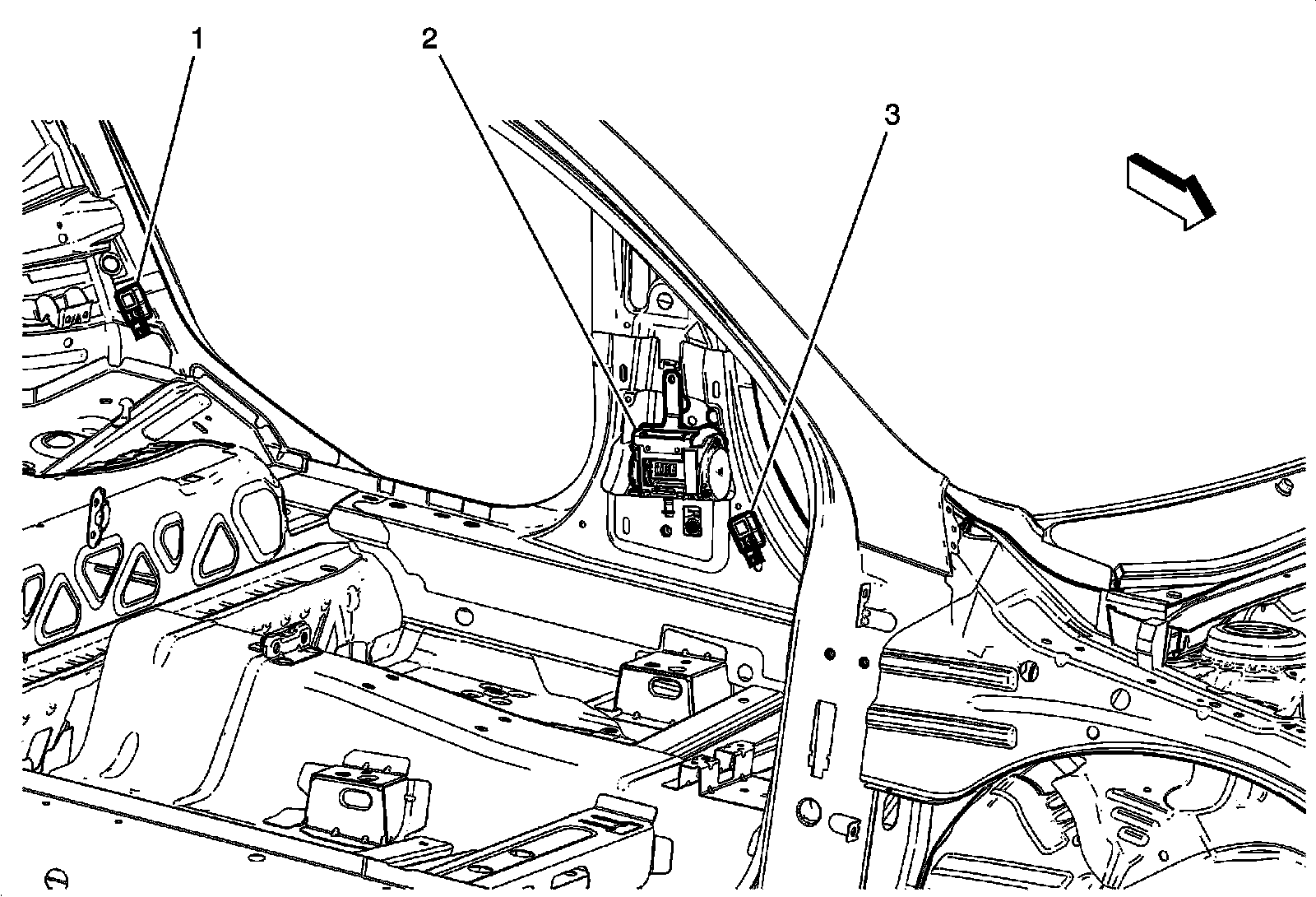

Passenger Compartment/Roof Component Views

Left Side of Passenger Compartment Components





1 - B63LR Side Impact Sensor - Left Rear (AW7)

2 - F112D Seat Belt Retractor Pretensioner - Driver

3 - B63LF Side Impact Sensor - Left Front
