Driver Information Display Replacement (UAG)

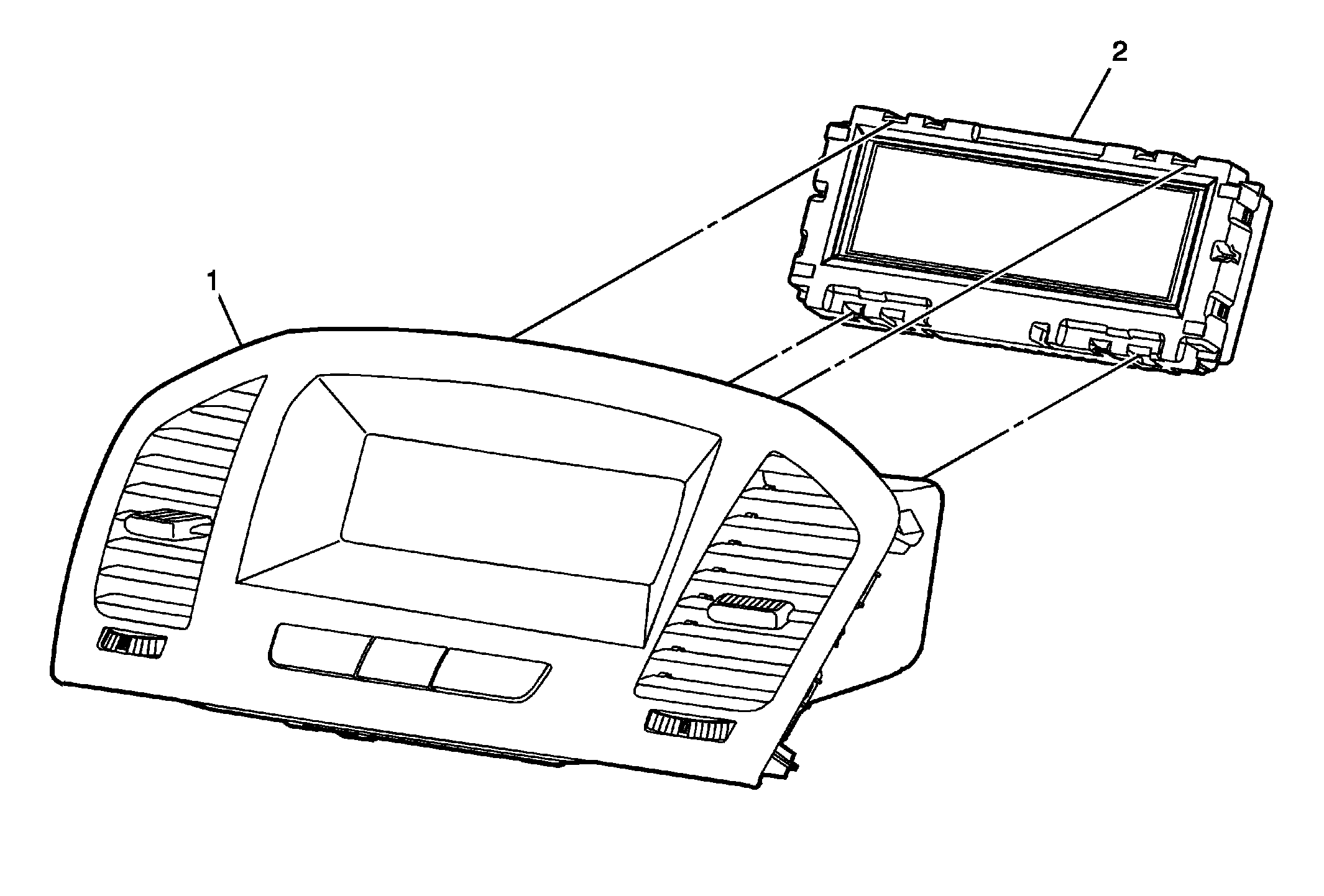

Fig 1: Driver Information Display (UAG)
GM2351292Courtesy of GENERAL MOTORS COMPANY
Driver Information Display Replacement (UAG)

Callout Component Name
1 Instrument Panel Upper Center Trim Panel
Refer to Instrument Panel Upper Center Trim Panel Replacement .
2 Drivers Information Display

Procedure

  1. Unsnap the drivers information display from the trim panel assembly.
  2. Refer to Control Module References for programming and setup information.
