Body Harness Routing- Near Liftgate

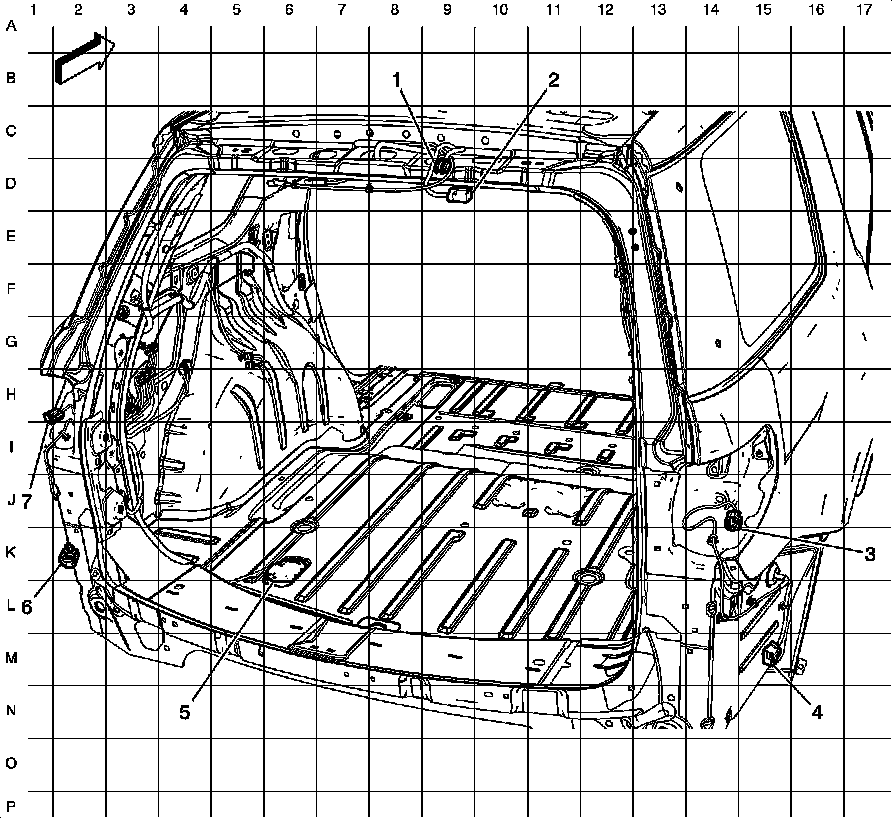

Harness Routing Views

Body Harness Routing- Near Liftgate





1 - X901

2 - X903

3 - X450 (W49 or X88)

4 - X442 (V92)

5 - X405

6 - X440 (UD7 or X88)

7 - X451 (W49 or X88)
