Front of the Vehicle (W49)

Front of Vehicle/Engine Compartment Component Views

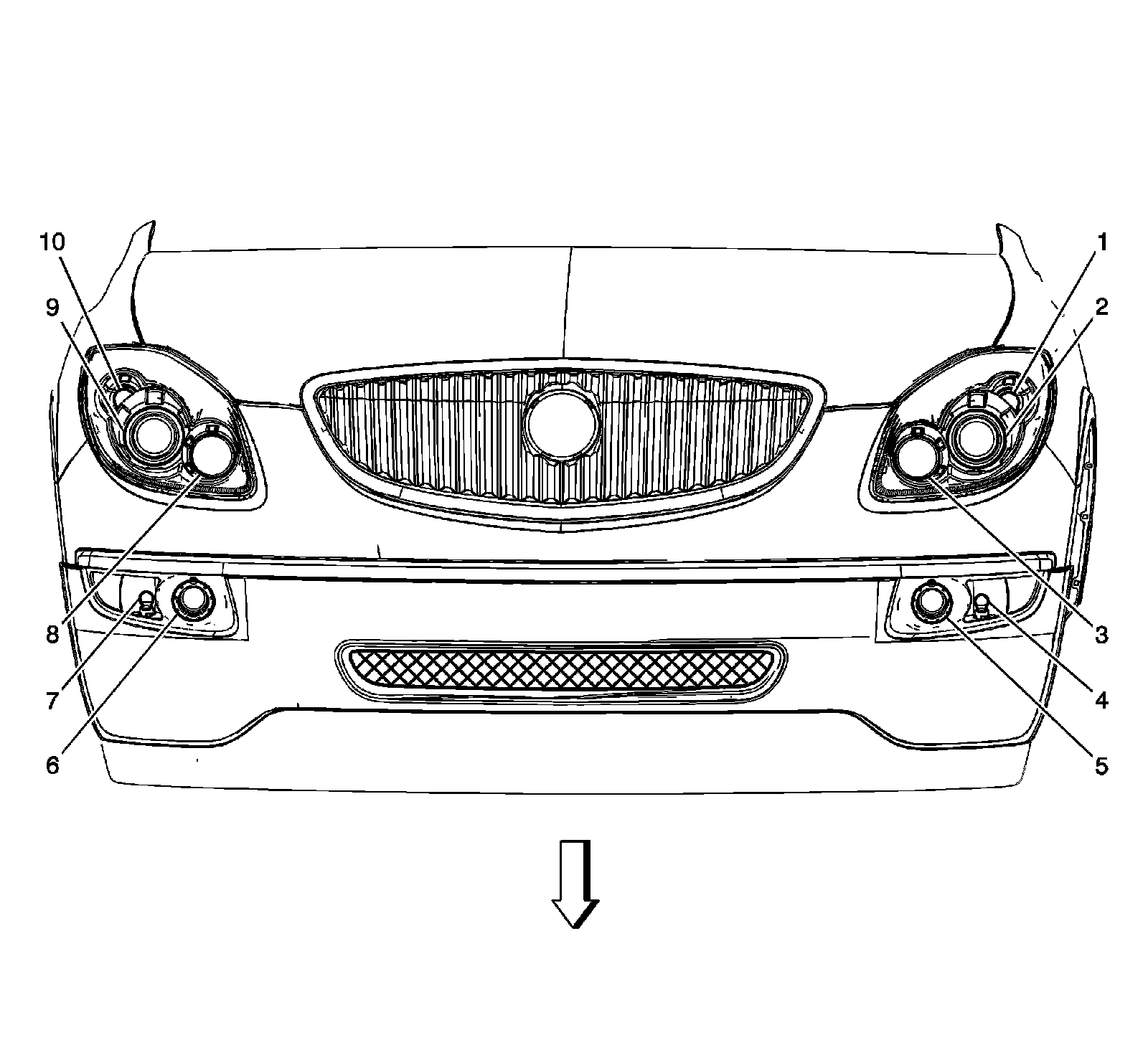

Front of the Vehicle (W49)





1 - Park/Side Marker Lamp - Left Front

2 - Headlamp - Left

3 - Turn Signal Lamp - Left Front

4 - Daytime Running Lamp (DRL) - Left (T61)

5 - Fog Lamp - Left Front (T96)

6 - Fog Lamp - Right Front (T96)

7 - Daytime Running Lamp (DRL) - Right (T61)

8 - Turn Signal Lamp - Right Front

9 - Headlamp - Right

10 - Park/Side Marker Lamp - Right Front
