Shift Interlock Solenoid: Locations




Instrument Panel/Center Console Component Views

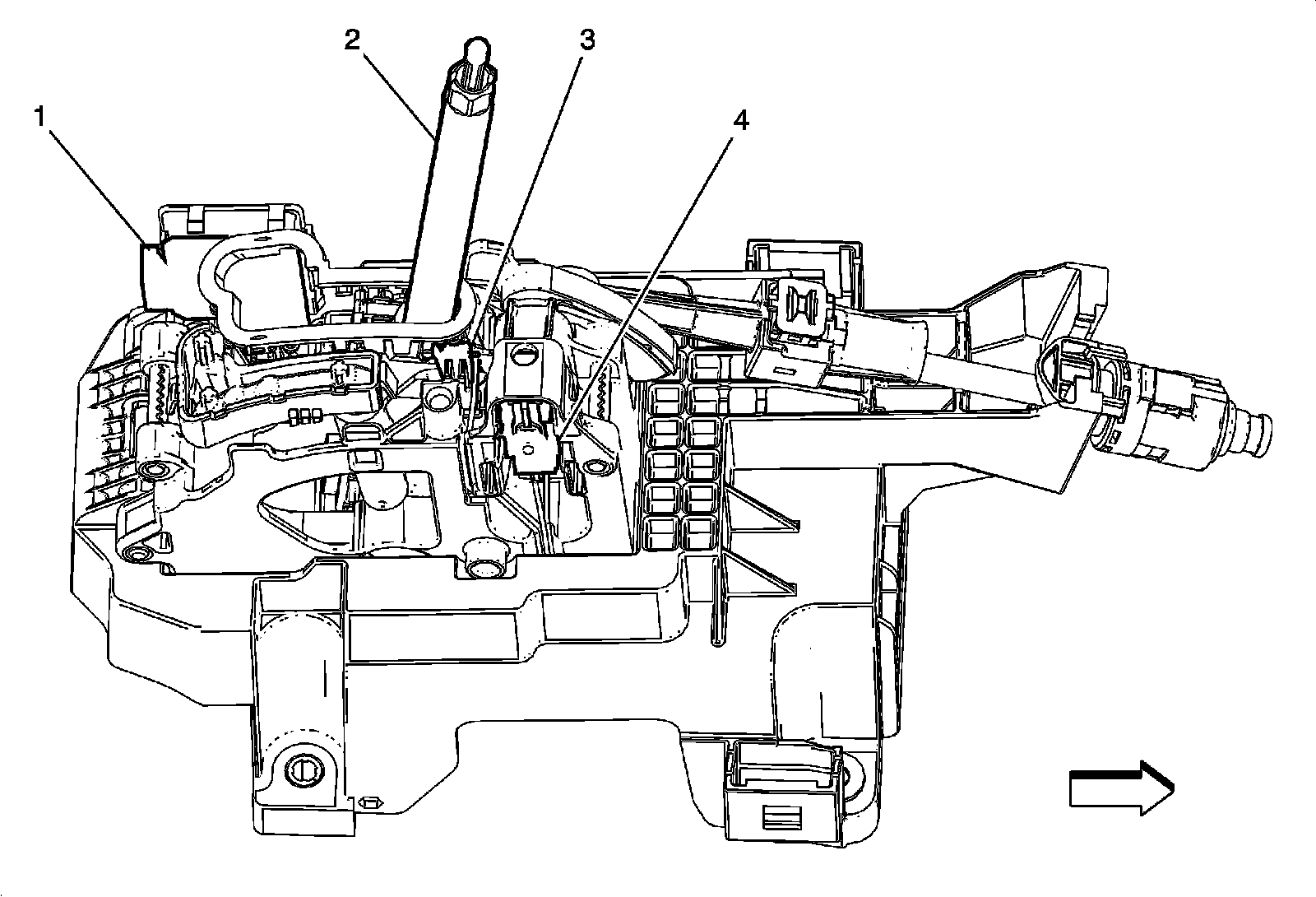

Automatic Transmission Shifter Components (MDK or MH7)




1 - S2 Transmission Manual Shift Switch
2 - S3 Transmission Shift Lever
3 - B81B Park Position Switch
4 - M7 Transmission Shift Lock Control Solenoid Actuator
