Fuse Block - Underhood




Electrical Center Identification Views

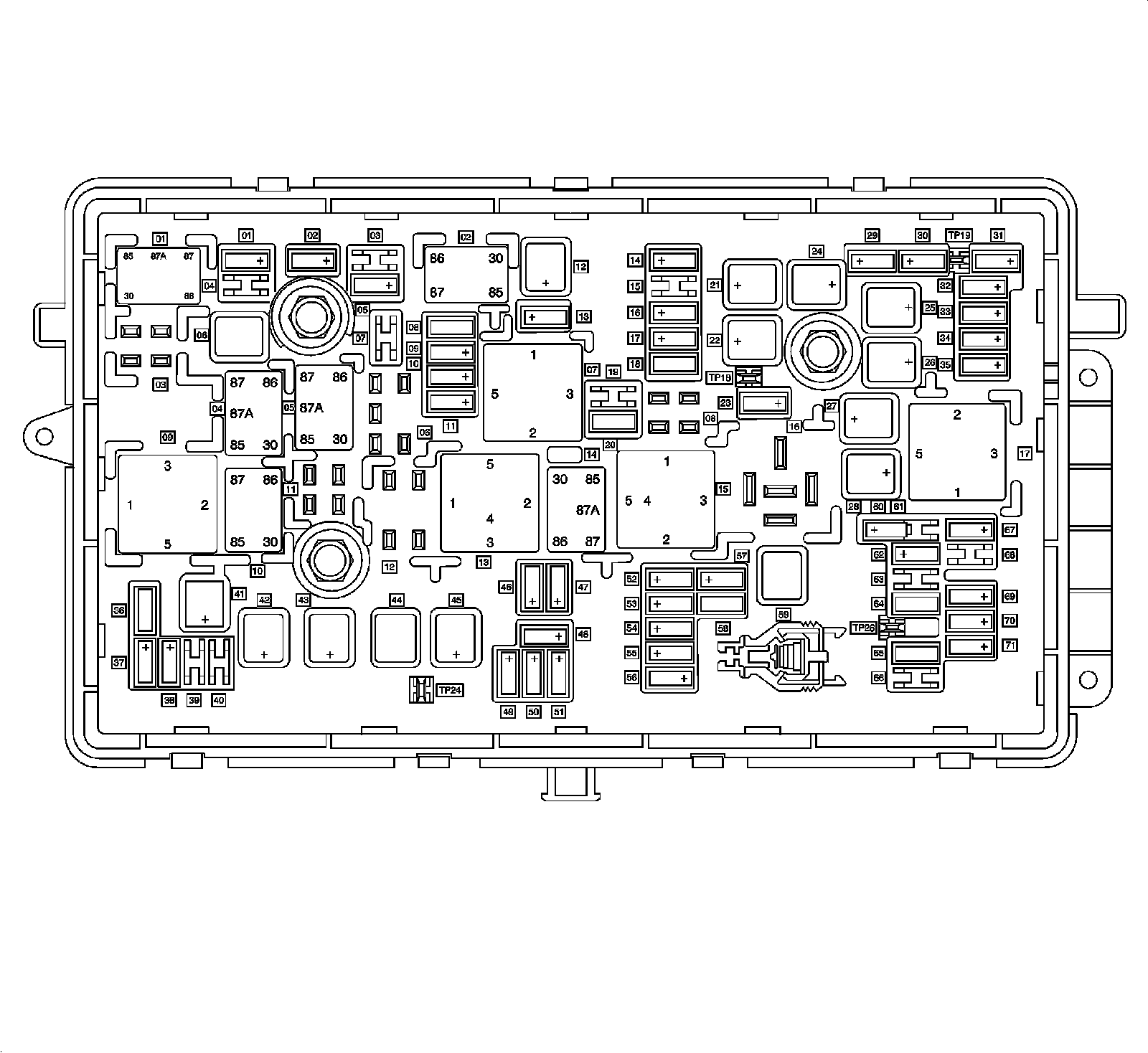

X50A Fuse Block - Underhood - Top View

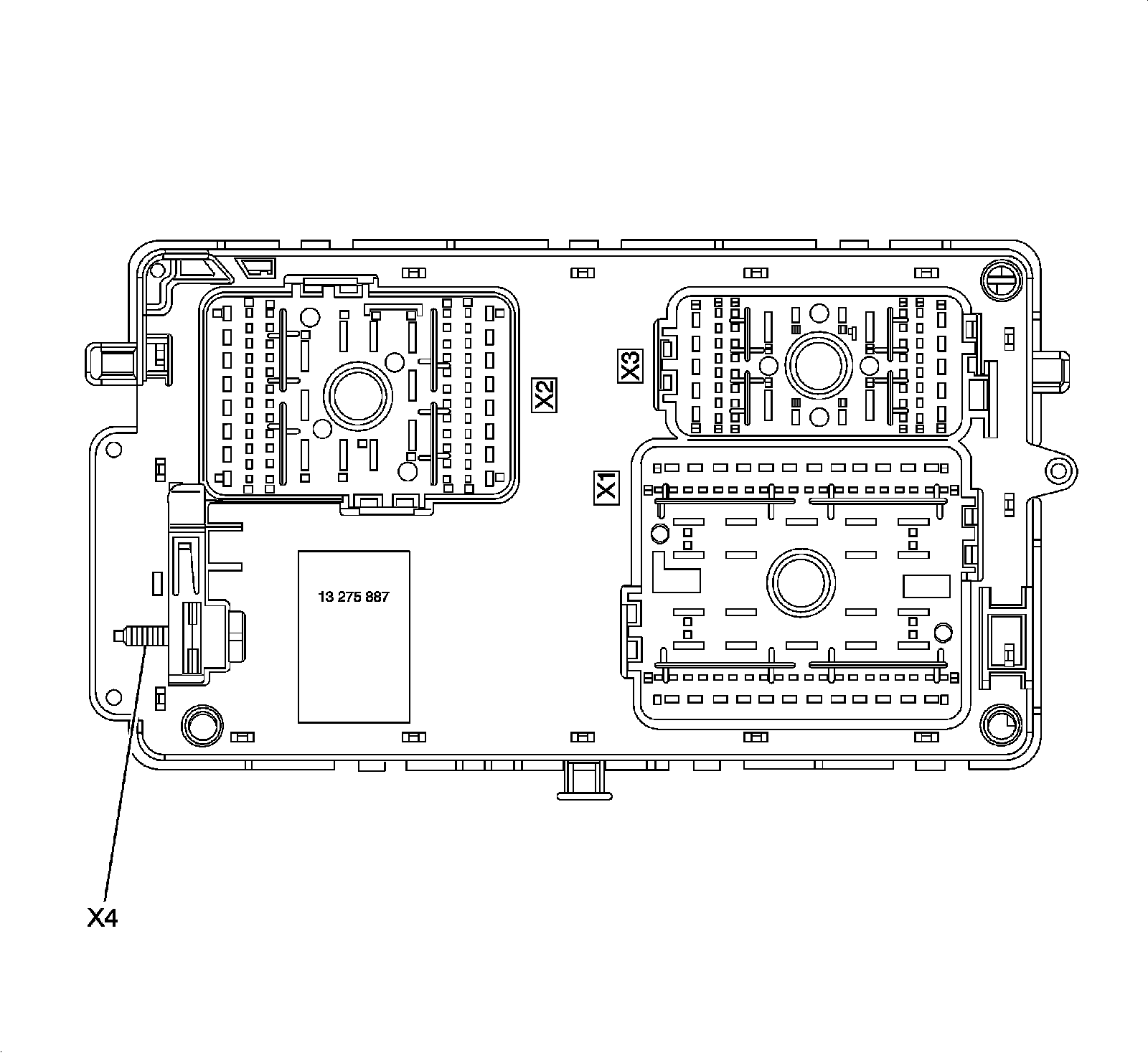

X50A Fuse Block - Underhood - Bottom View






X50A Fuse Block - Underhood - Label

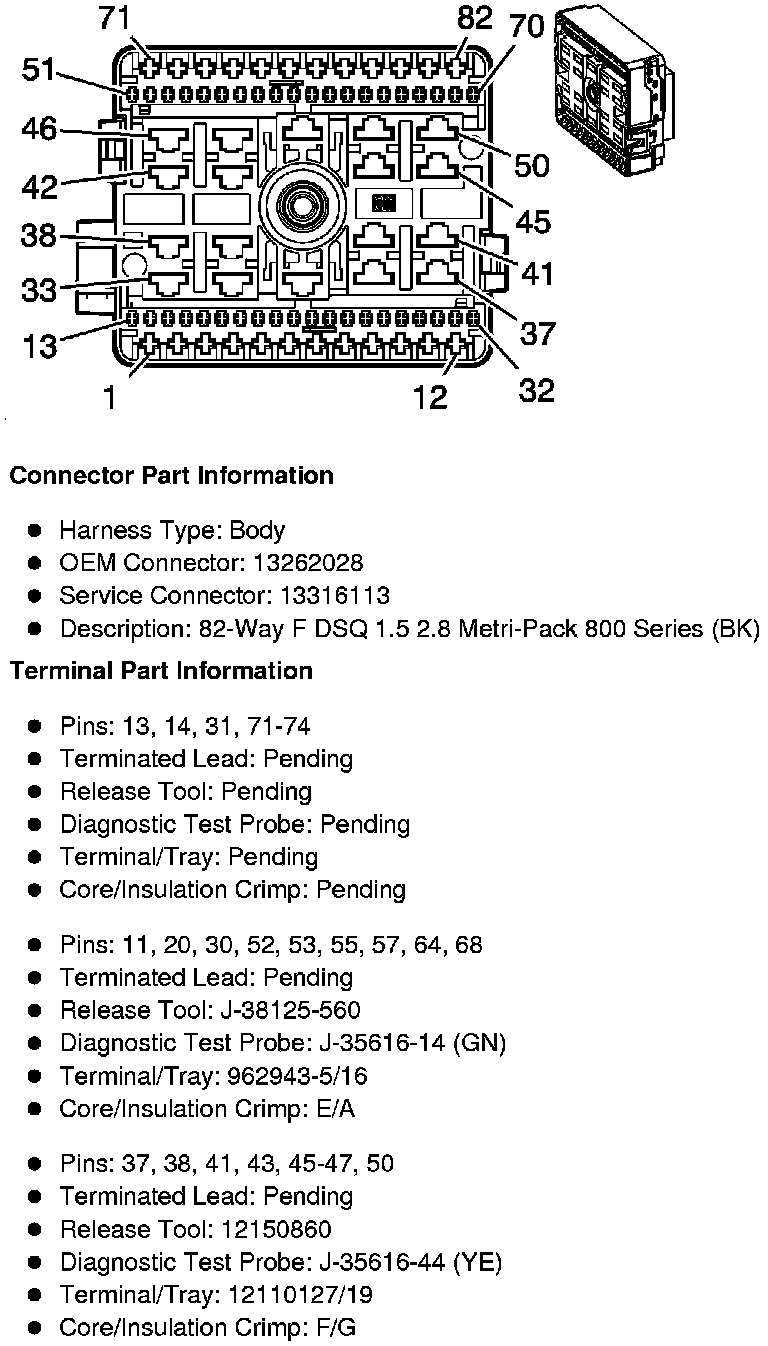

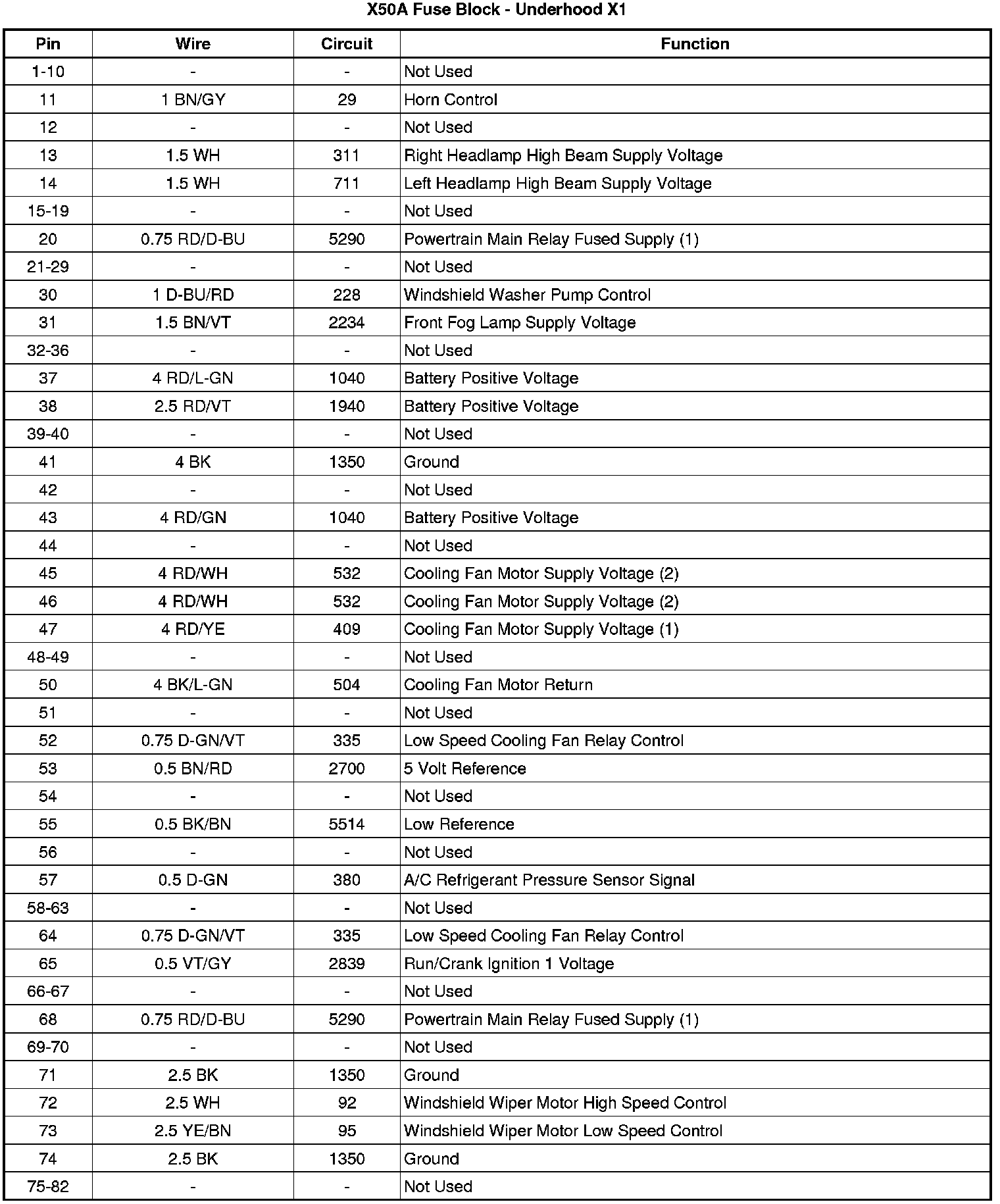

X50A Fuse Block - Underhood X1

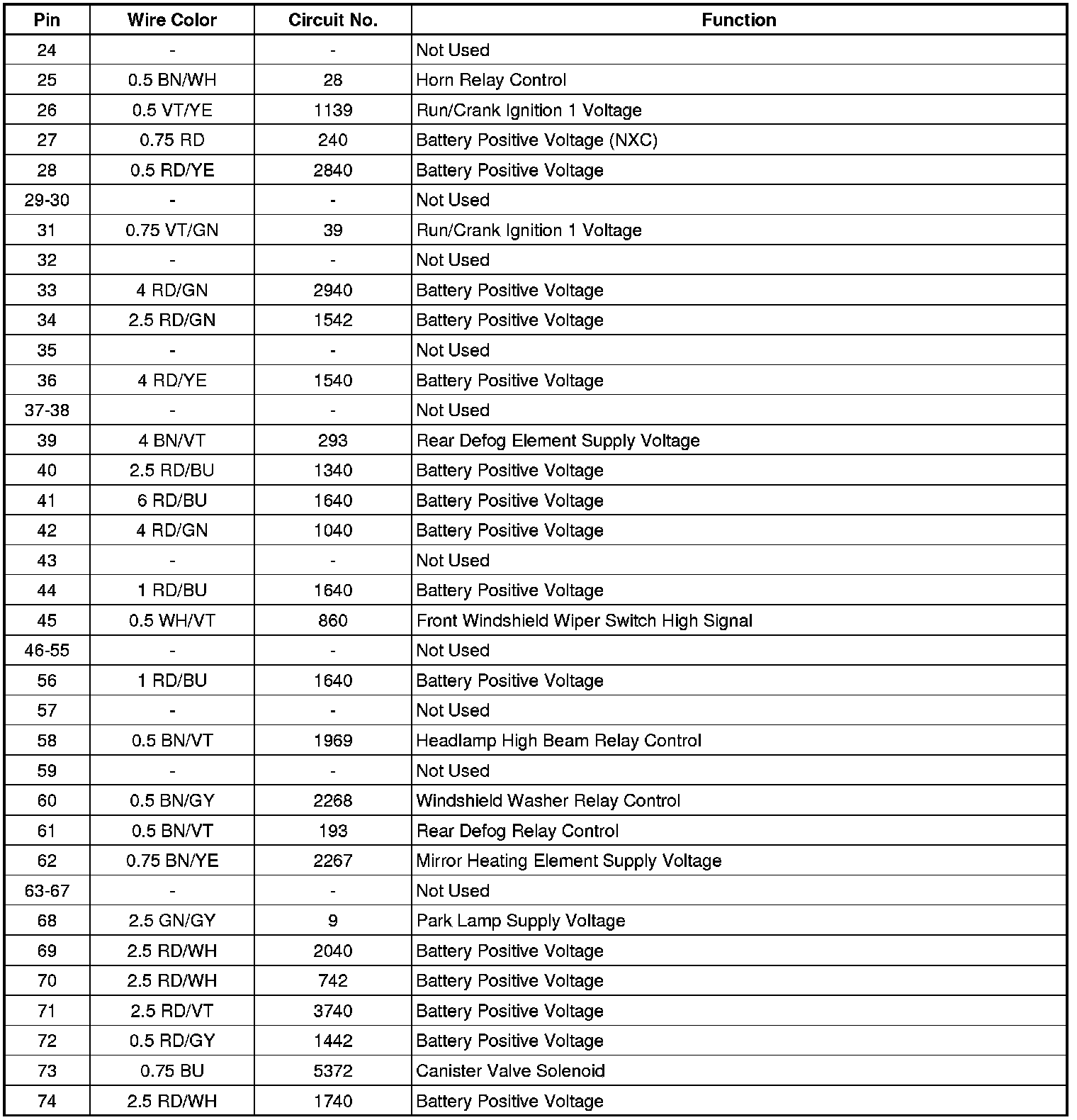

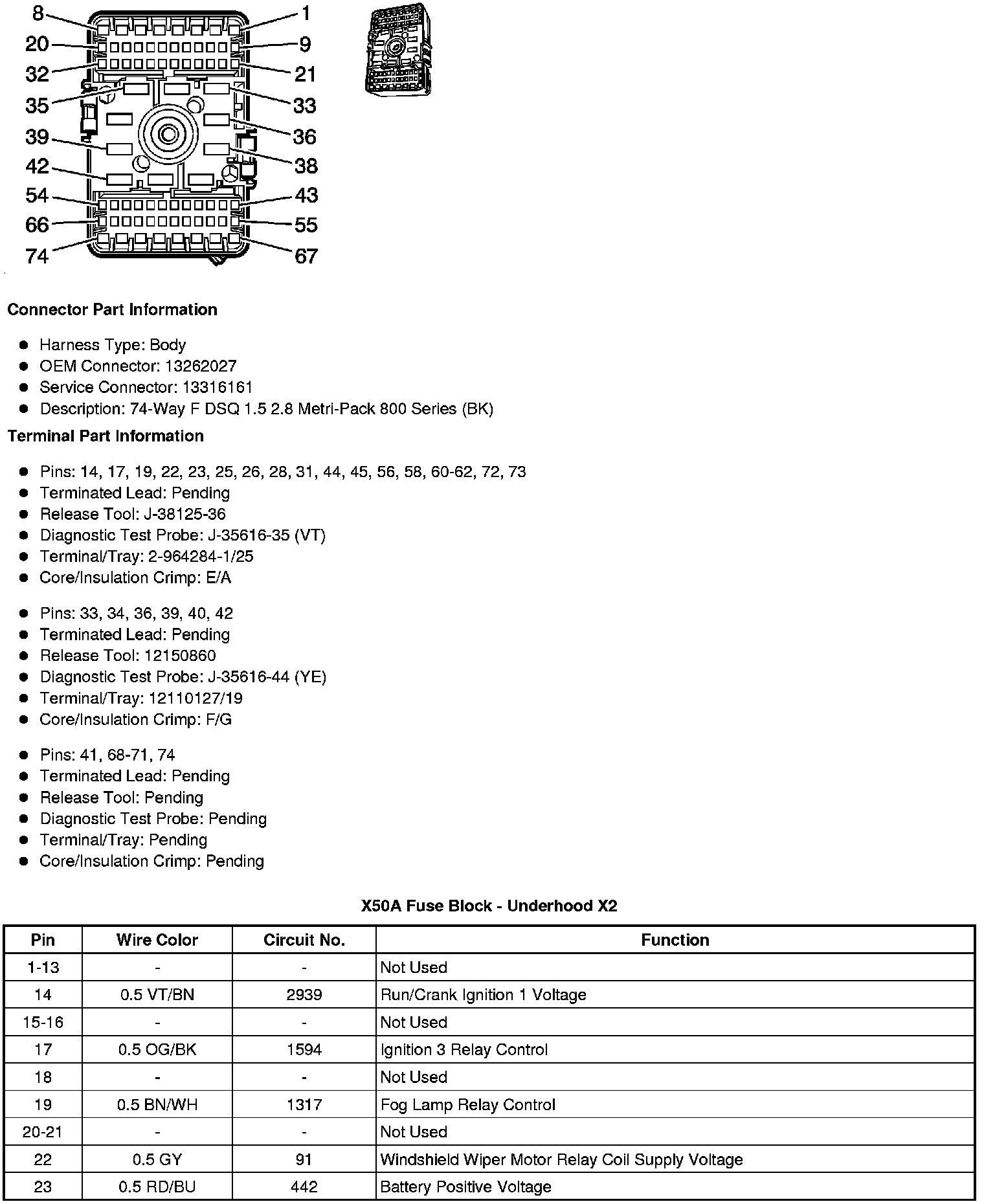

X50A Fuse Block - Underhood X2

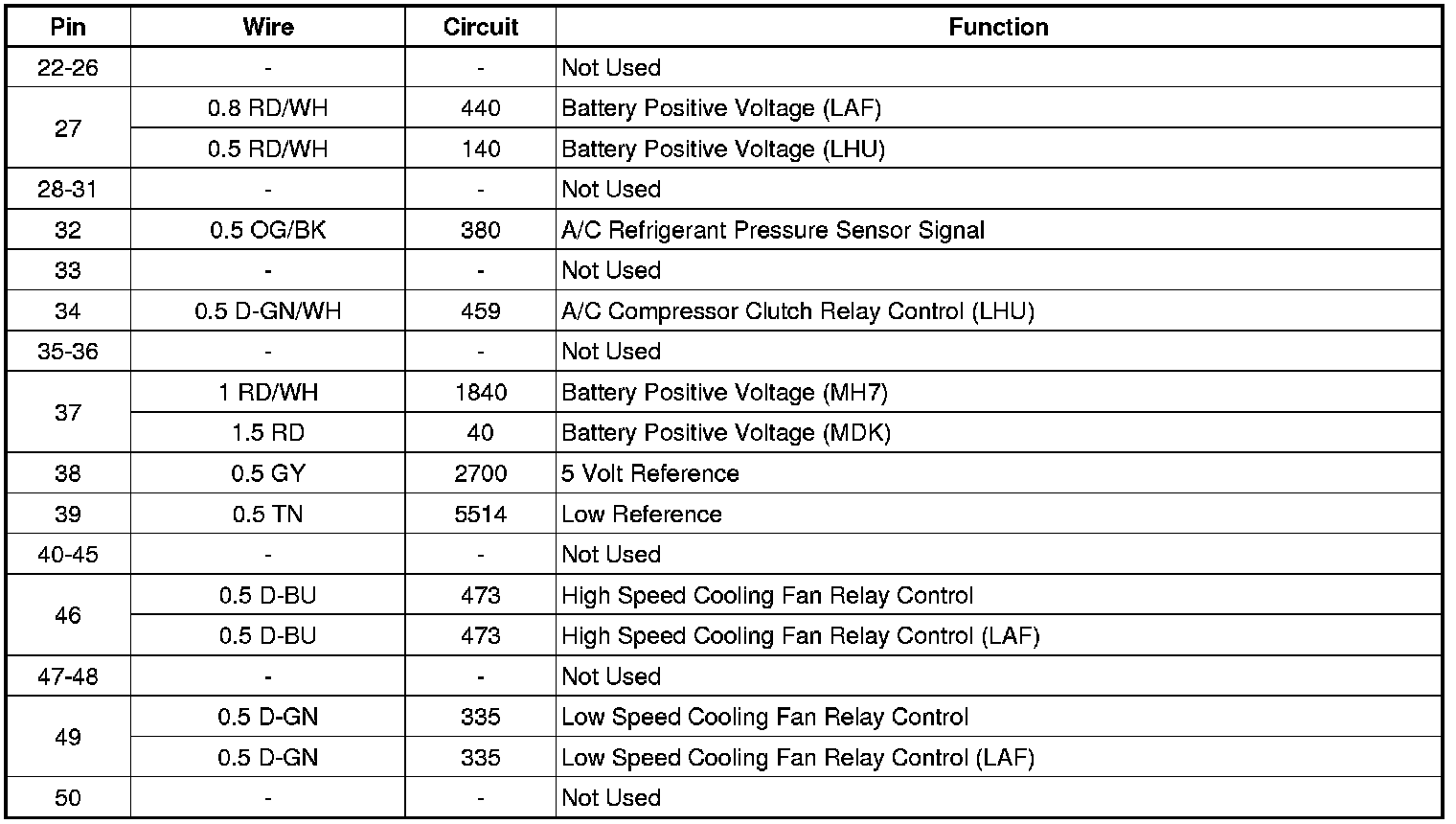

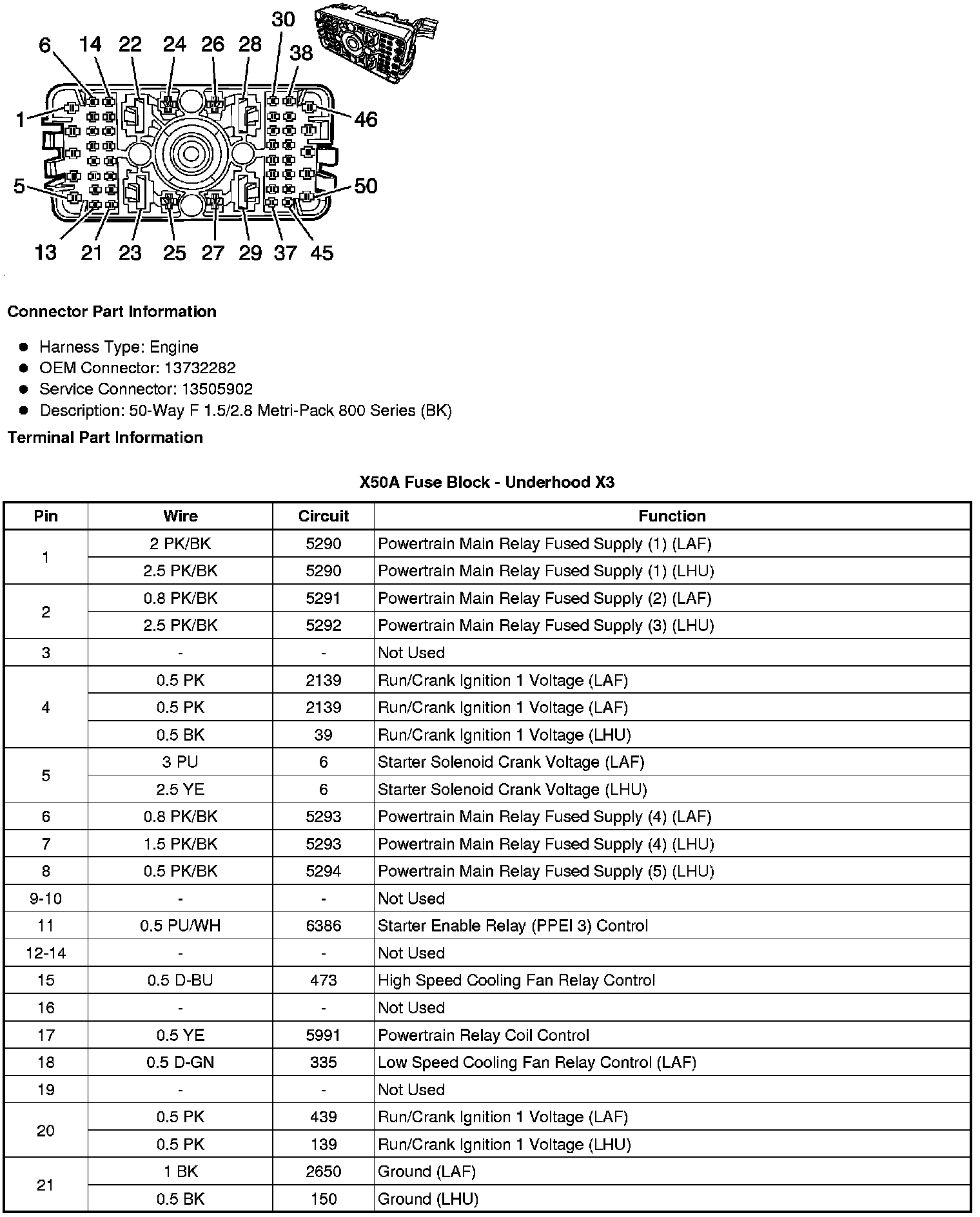

X50A Fuse Block - Underhood X3
