Left Side of Passenger Compartment Components




Passenger Compartment/Roof Component Views

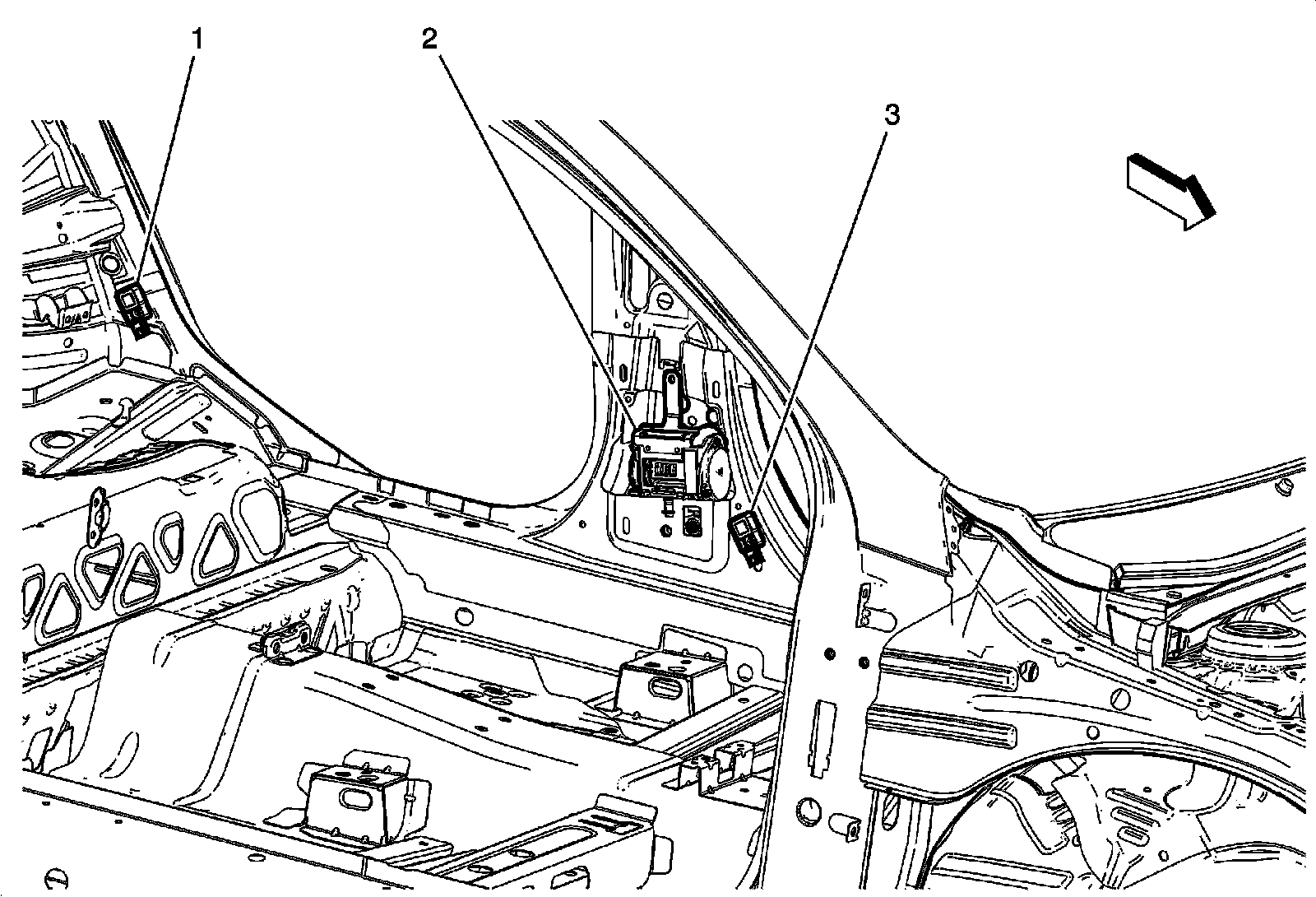

Left Side of Passenger Compartment Components




1 - B63LR Side Impact Sensor - Left Rear (AW7)
2 - F112D Seat Belt Retractor Pretensioner - Driver
3 - B63LF Side Impact Sensor - Left Front
