G103

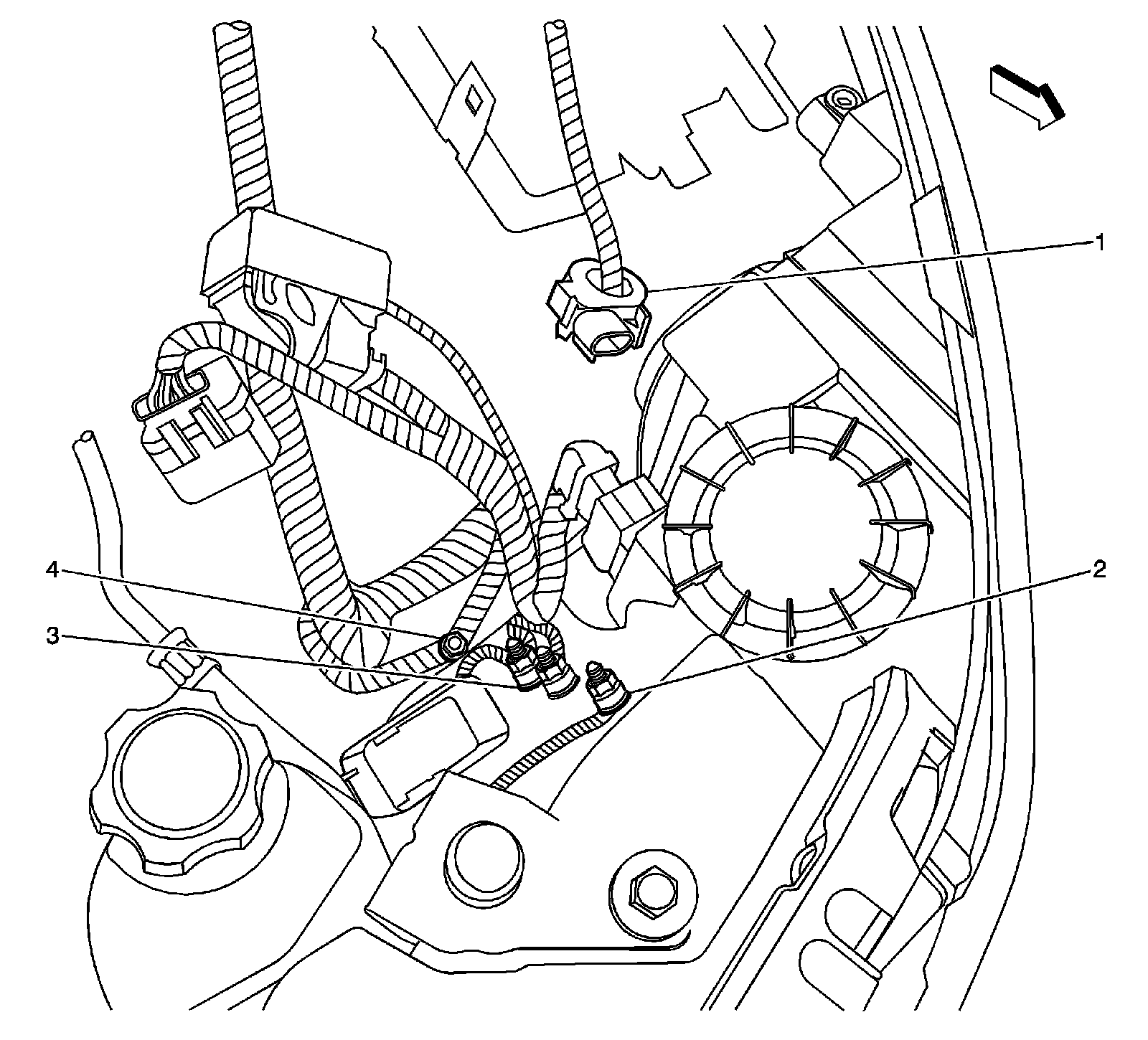

Ground Views

G103, G106, and G110




1 - B18 Battery Current Sensor
2 - G106
3 - G110
4 - G103
