Suspension Control ( Automatic - Electronic )




Electronic Suspension Control Schematics

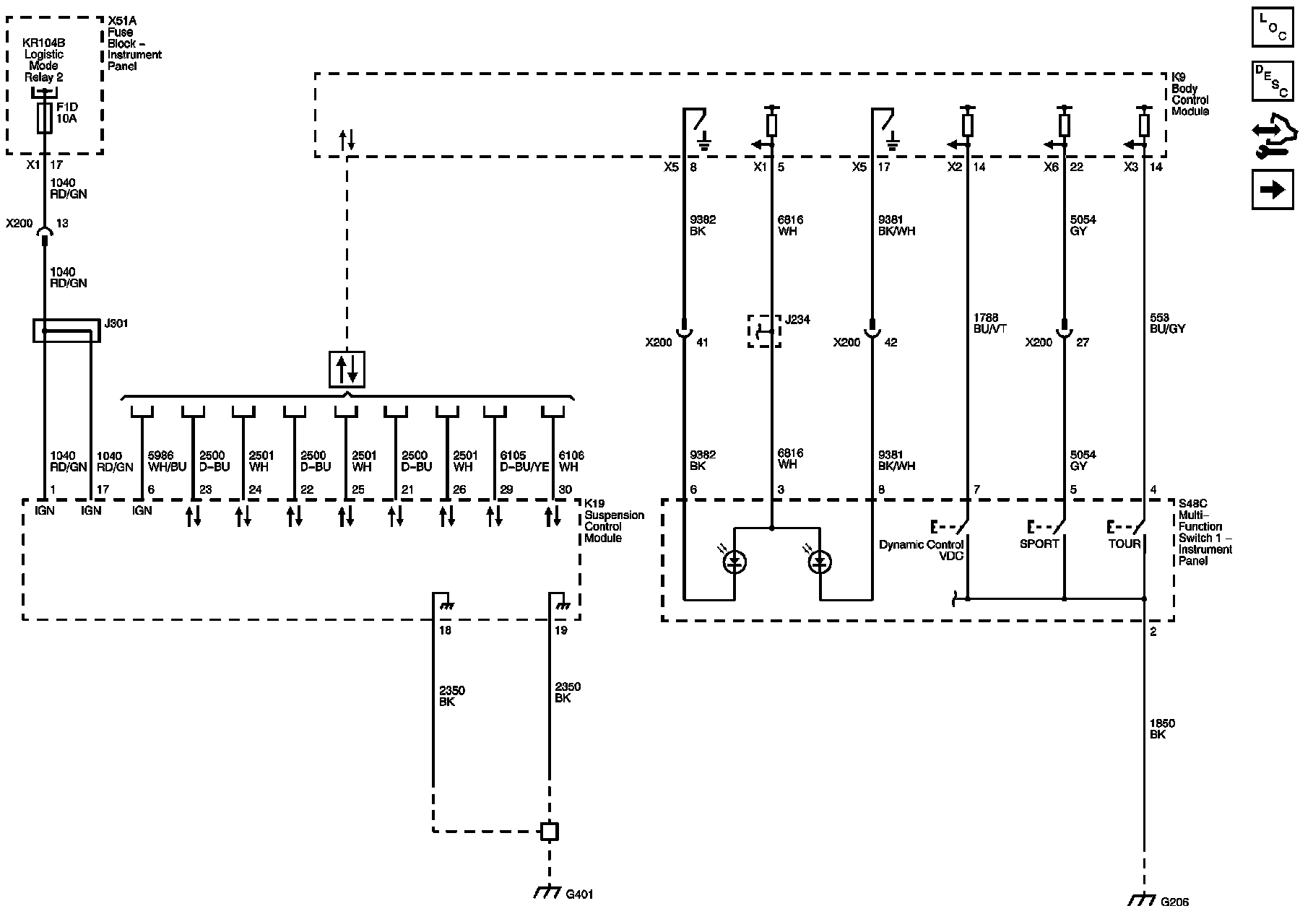

Power, Ground, and Serial Data

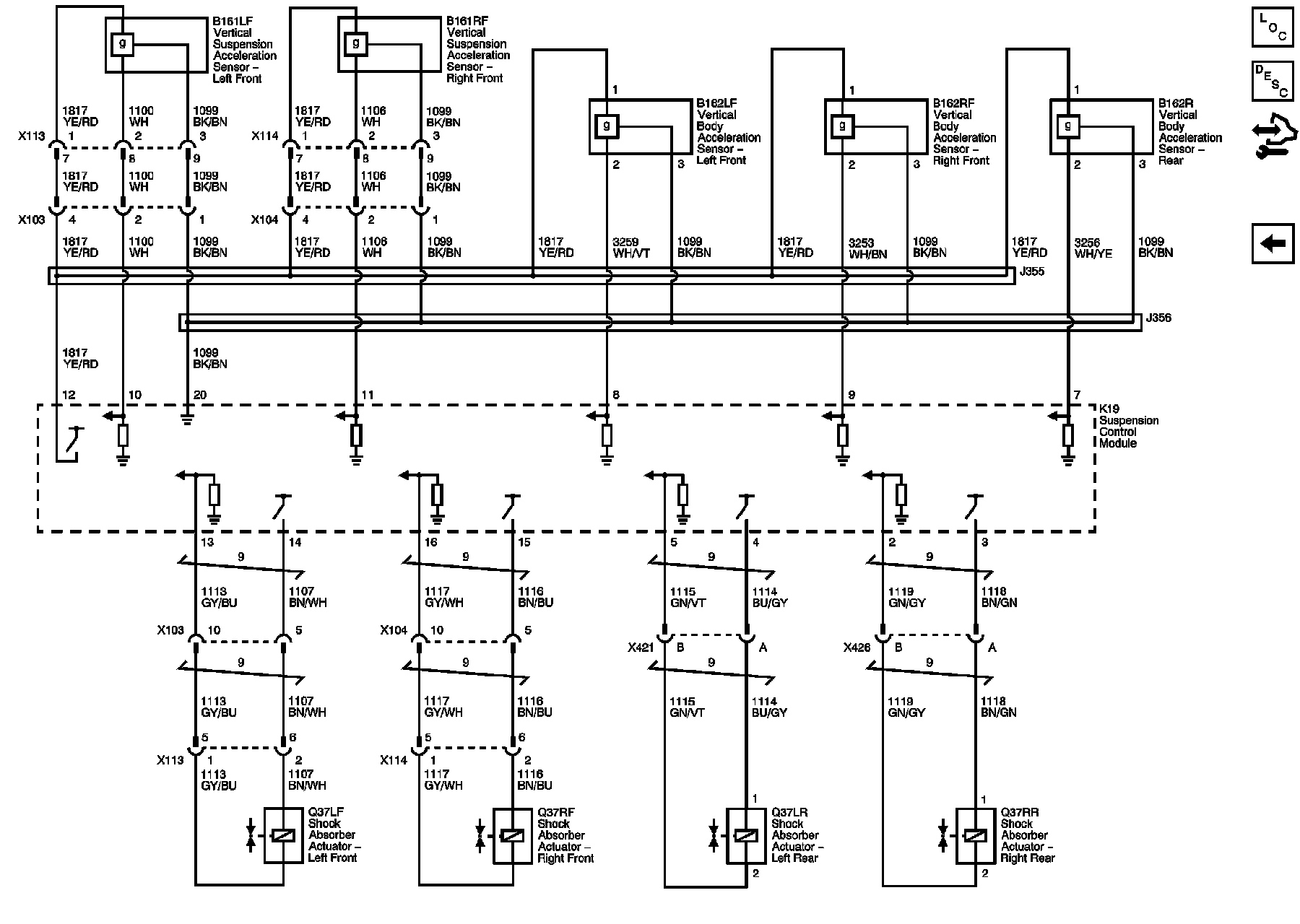

Sensors and Actuators
