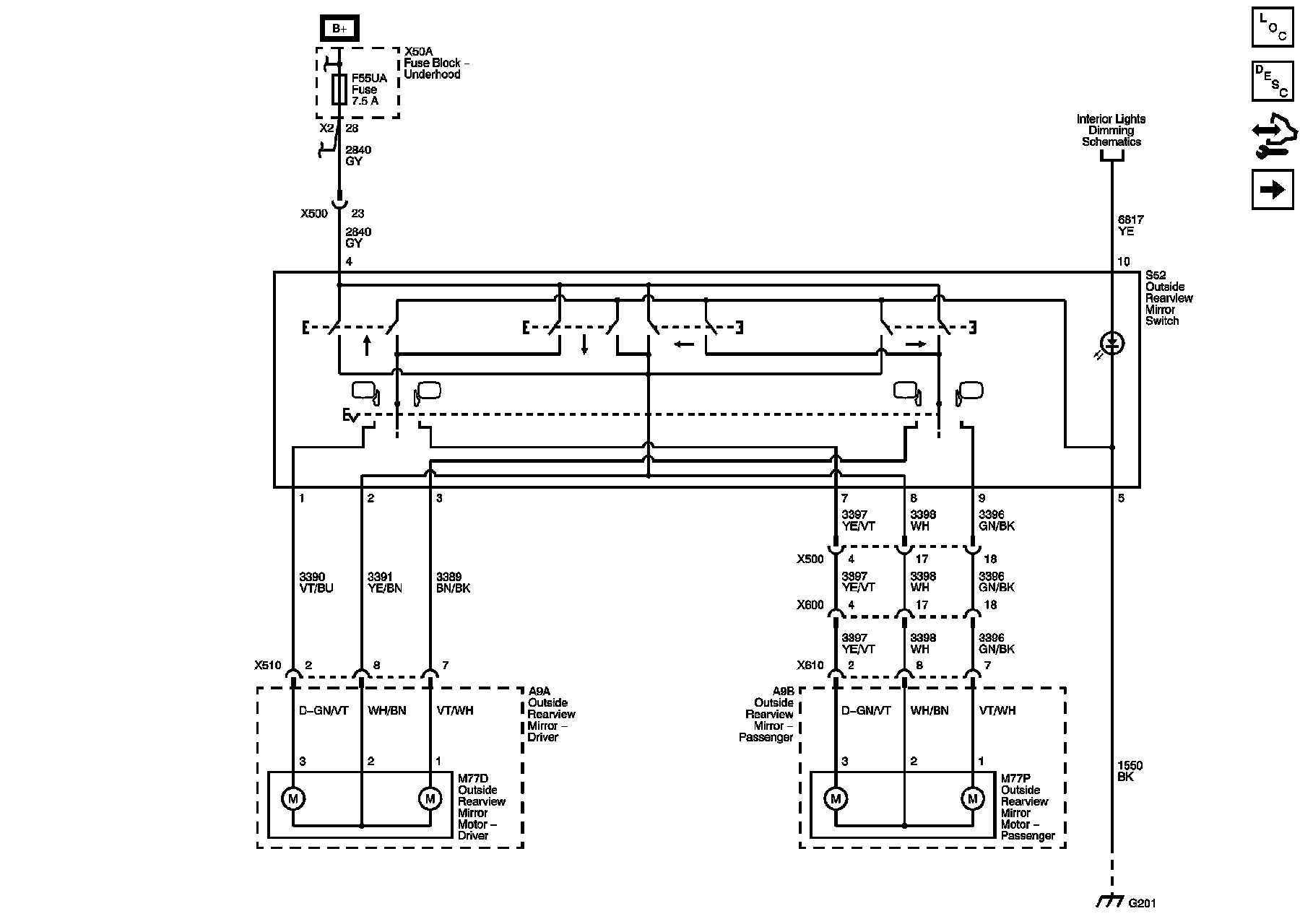

Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics
Outside Rearview Mirror Schematics
Controls and Motors
Heated Mirrors
