B5RR Wheel Speed Sensor - Right Rear
B5RR Wheel Speed Sensor - Right Rear

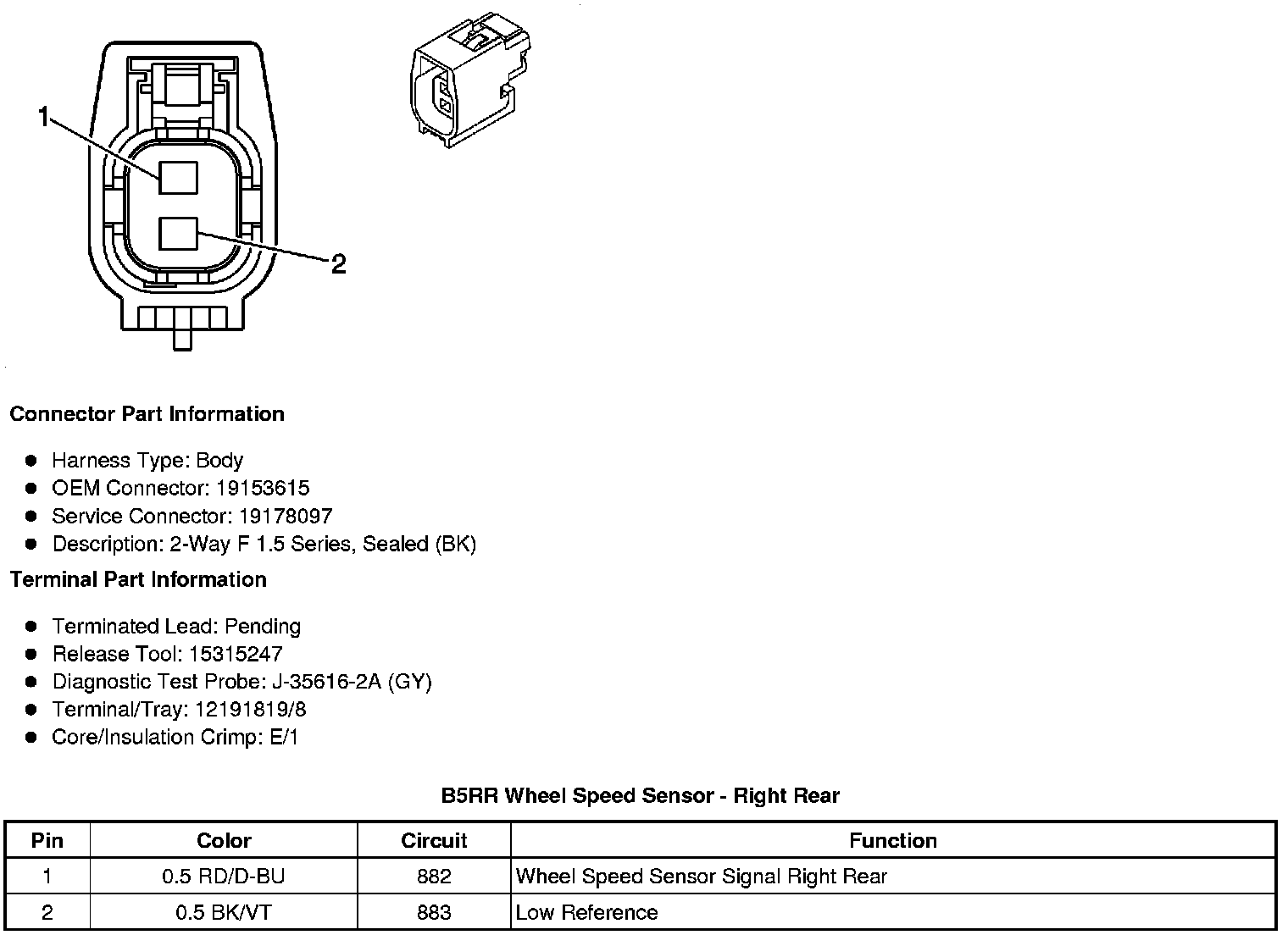

Component Connector End Views
B5RR
Wheel Speed Sensor
- Right Rear
