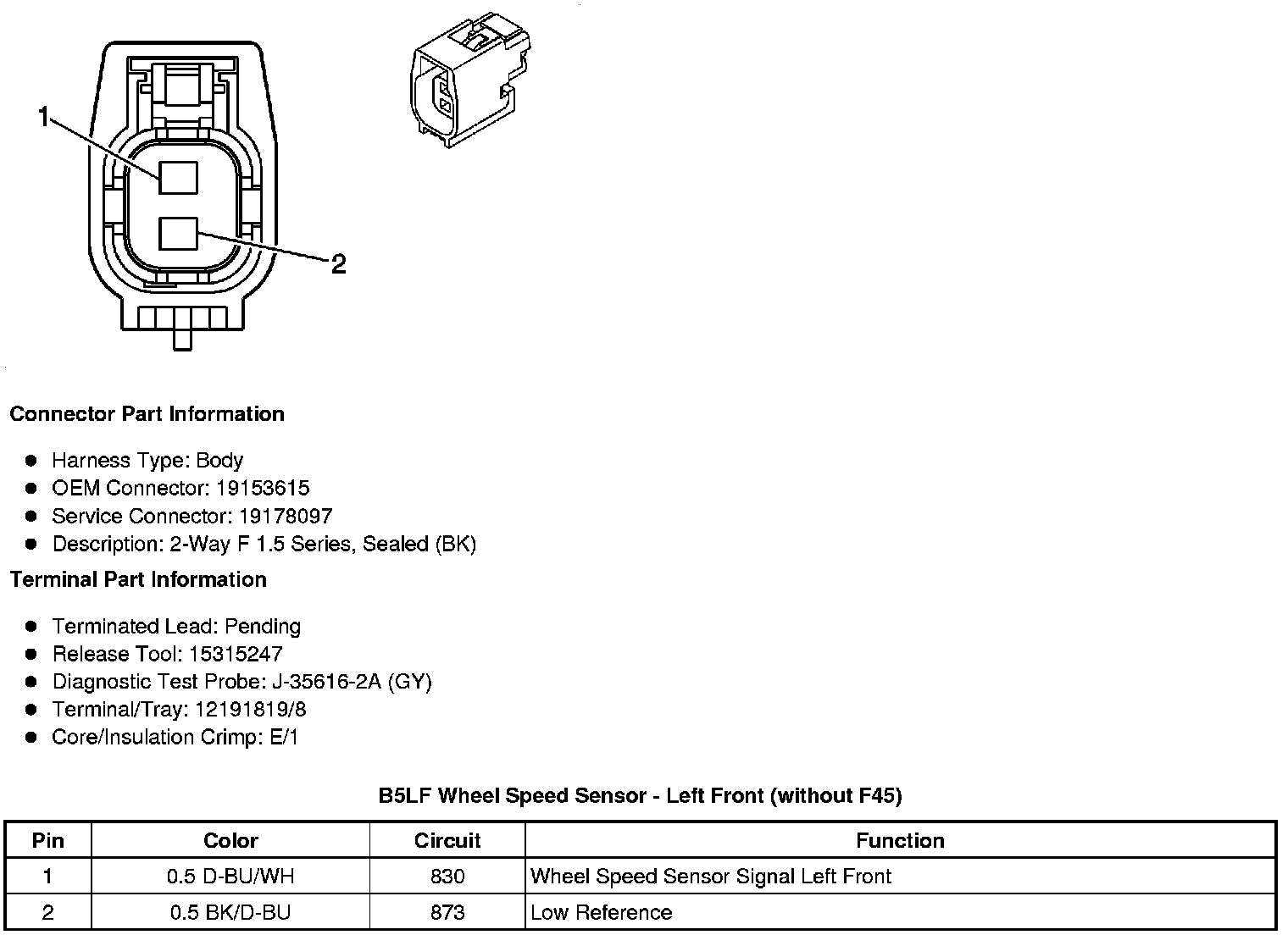

B5LF Wheel Speed Sensor - Left Front (without F45)
B5LF Wheel Speed Sensor - Left Front (without F45)
Component Connector End Views
B5LF
Wheel Speed Sensor
- Left Front (without F45)
