Q6F Camshaft Position Actuator Solenoid Valve - Intake
Q6F Camshaft Position Actuator Solenoid Valve - Intake

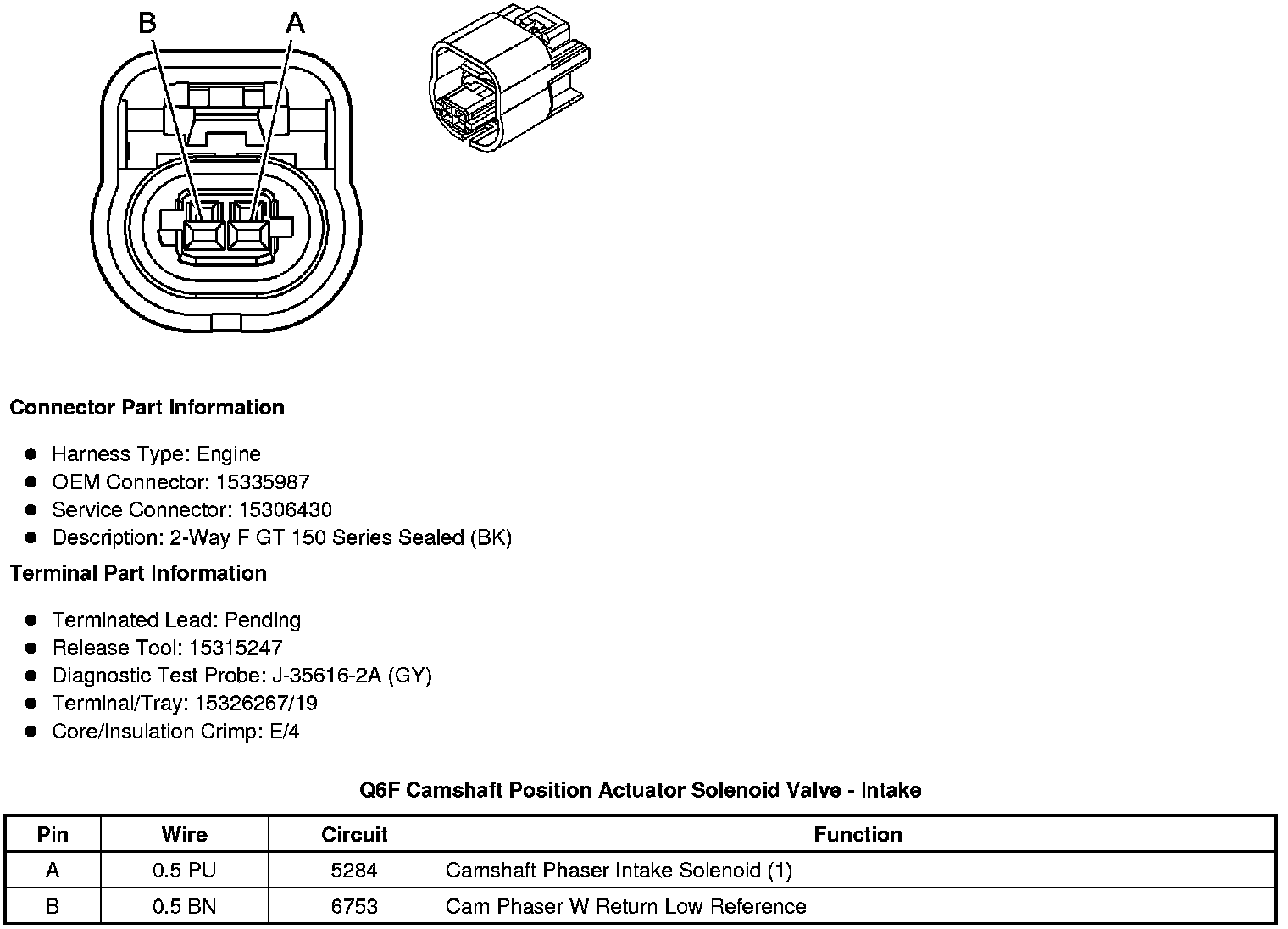

Component Connector End Views
Q6F Camshaft Position Actuator Solenoid Valve - Intake
