Sunroof / Moonroof Motor

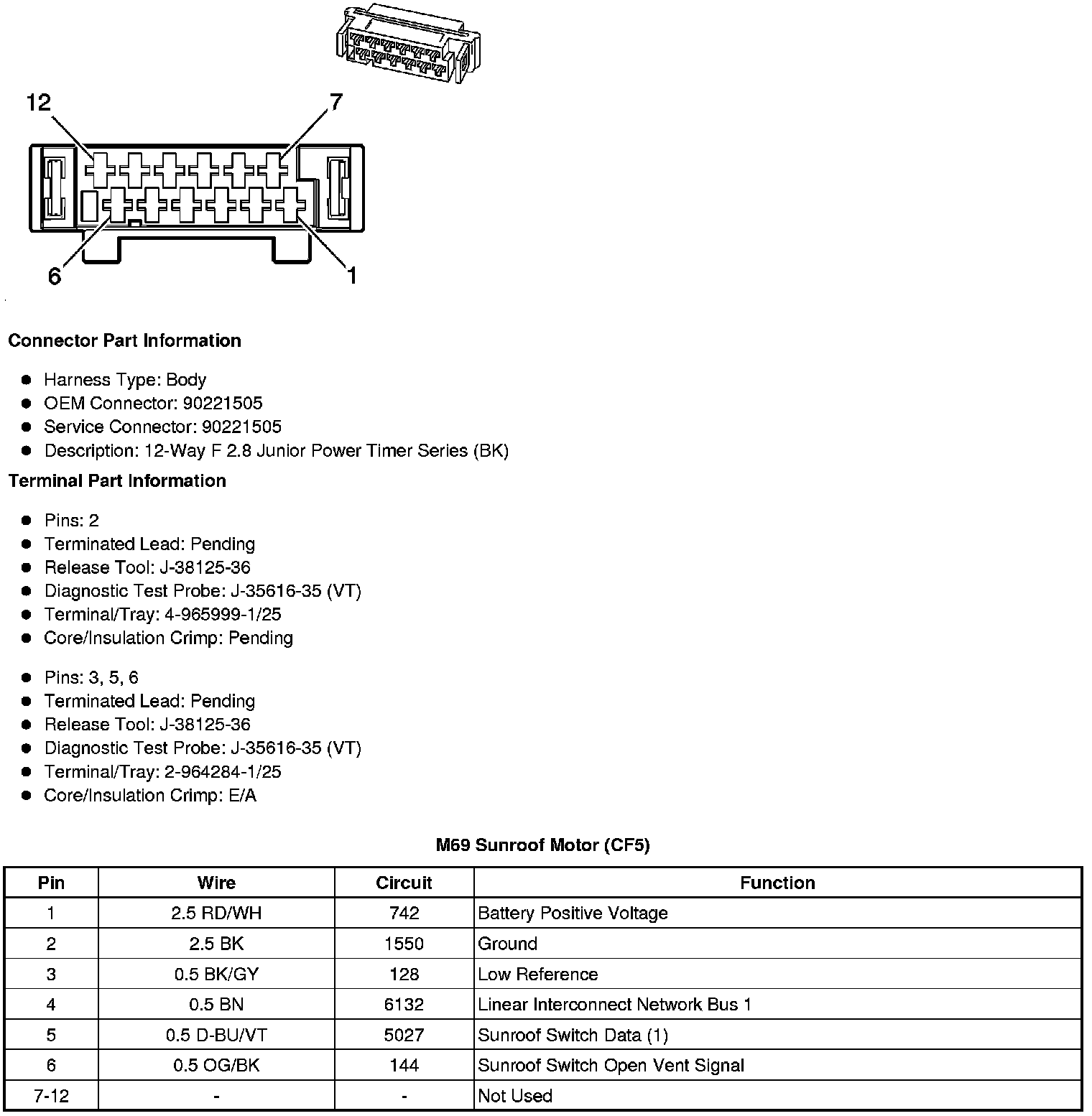

Sunroof / Moonroof Motor
Component Connector End Views
M69 Sunroof Motor (CF5)
