Seat Temperature Element
>>
E14A Seat Heating Element - Driver Back
E14A Seat Heating Element - Driver Back

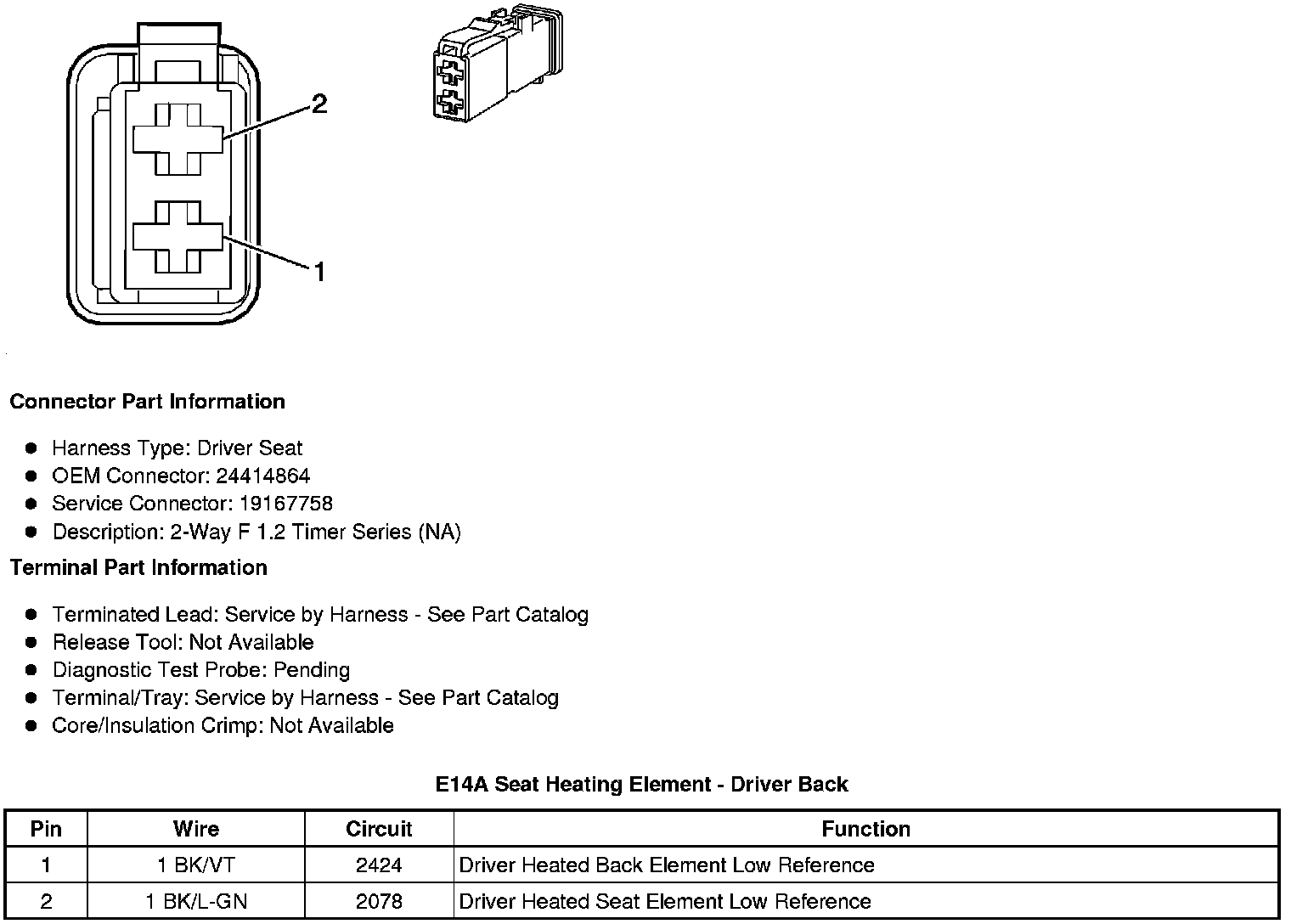

Component Connector End Views
E14A Seat Heating Element - Driver Back
