Seat Belt Tensioner
>>
F113P Seat Belt Anchor Pretensioner - Passenger
F113P Seat Belt Anchor Pretensioner - Passenger

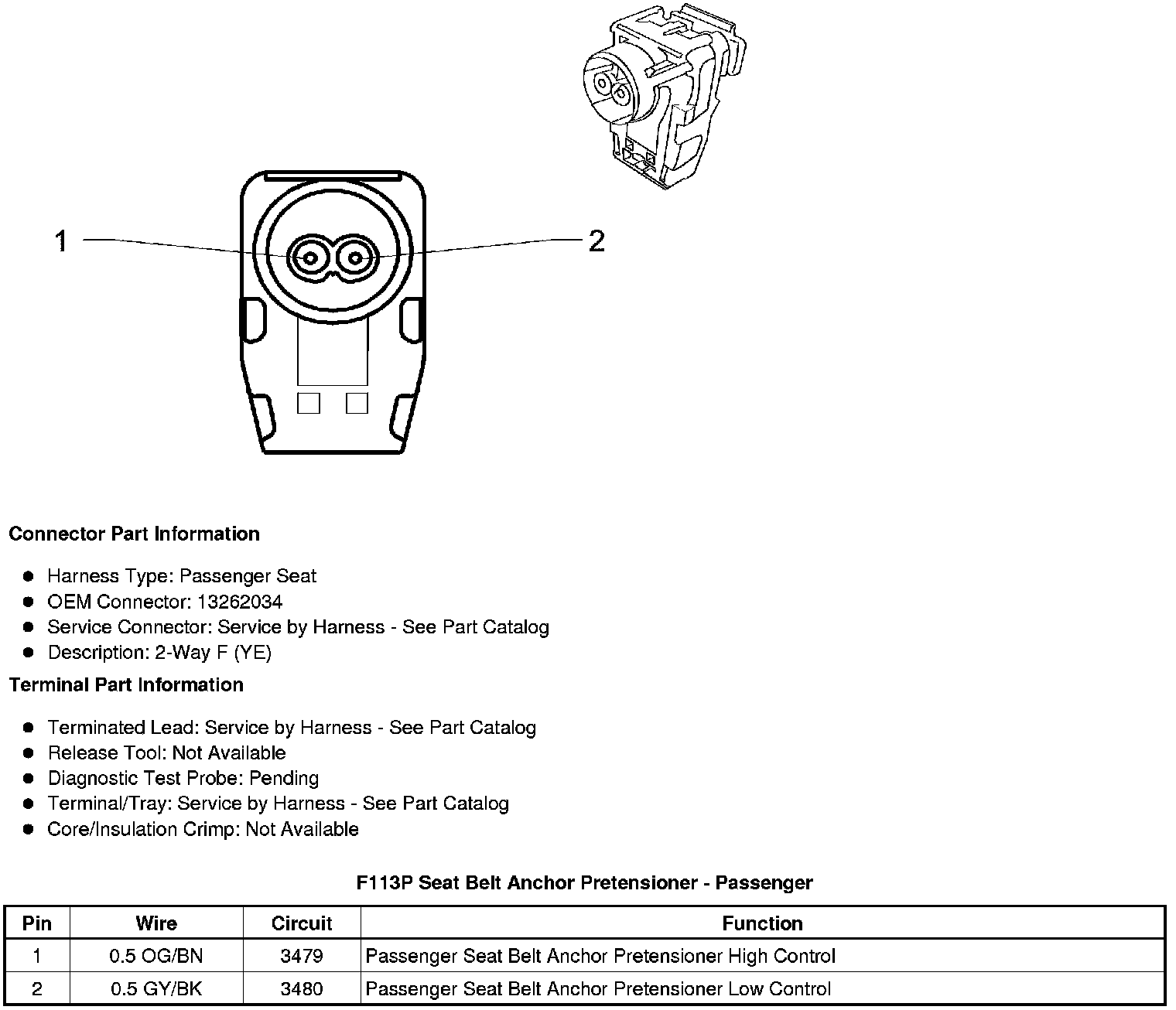

Component Connector End Views
F113P Seat Belt Anchor Pretensioner - Passenger
