Seat Belt Retractor
>>
F112P Seat Belt Retractor Pretensioner - Passenger
F112P Seat Belt Retractor Pretensioner - Passenger

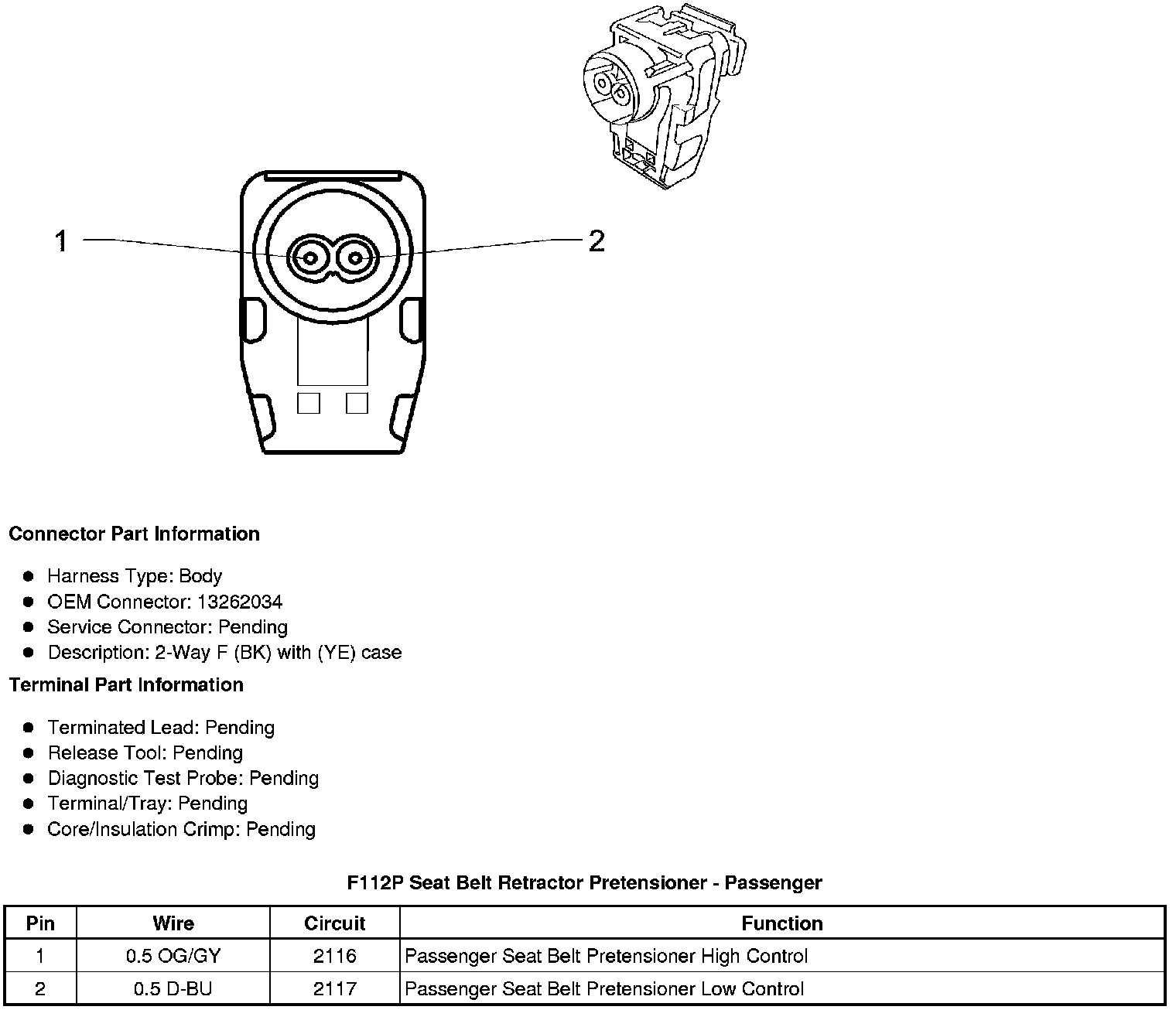

Component Connector End Views
F112P Seat Belt Retractor Pretensioner - Passenger
