Seat Belt Buckle Switch
>>
B88D Seat Belt Switch - Driver
B88D Seat Belt Switch - Driver

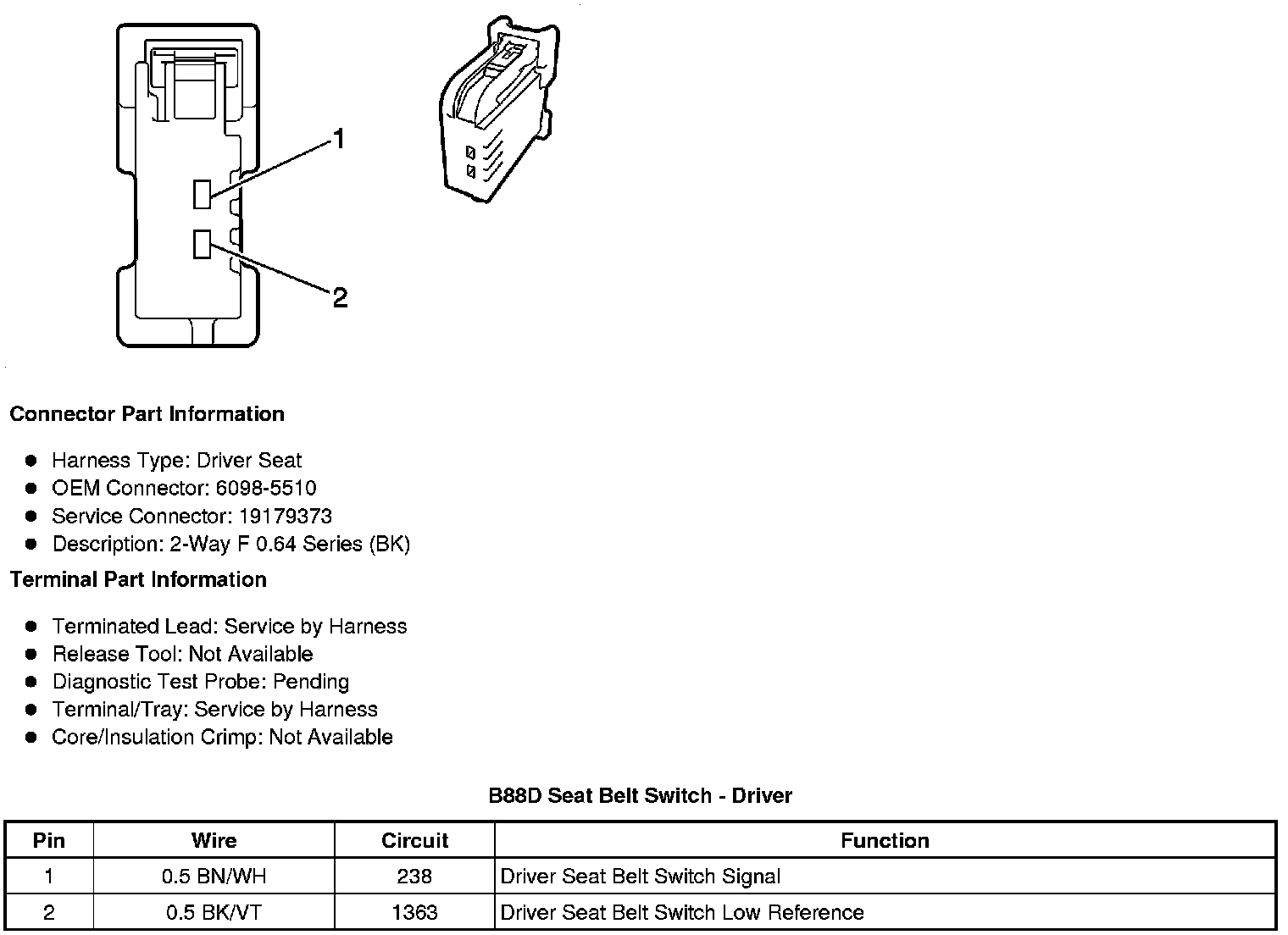

Component Connector End Views
B88D Seat Belt Switch - Driver
