Power Window Motor
>>
M74LR Window Motor - Left Rear
M74LR Window Motor - Left Rear

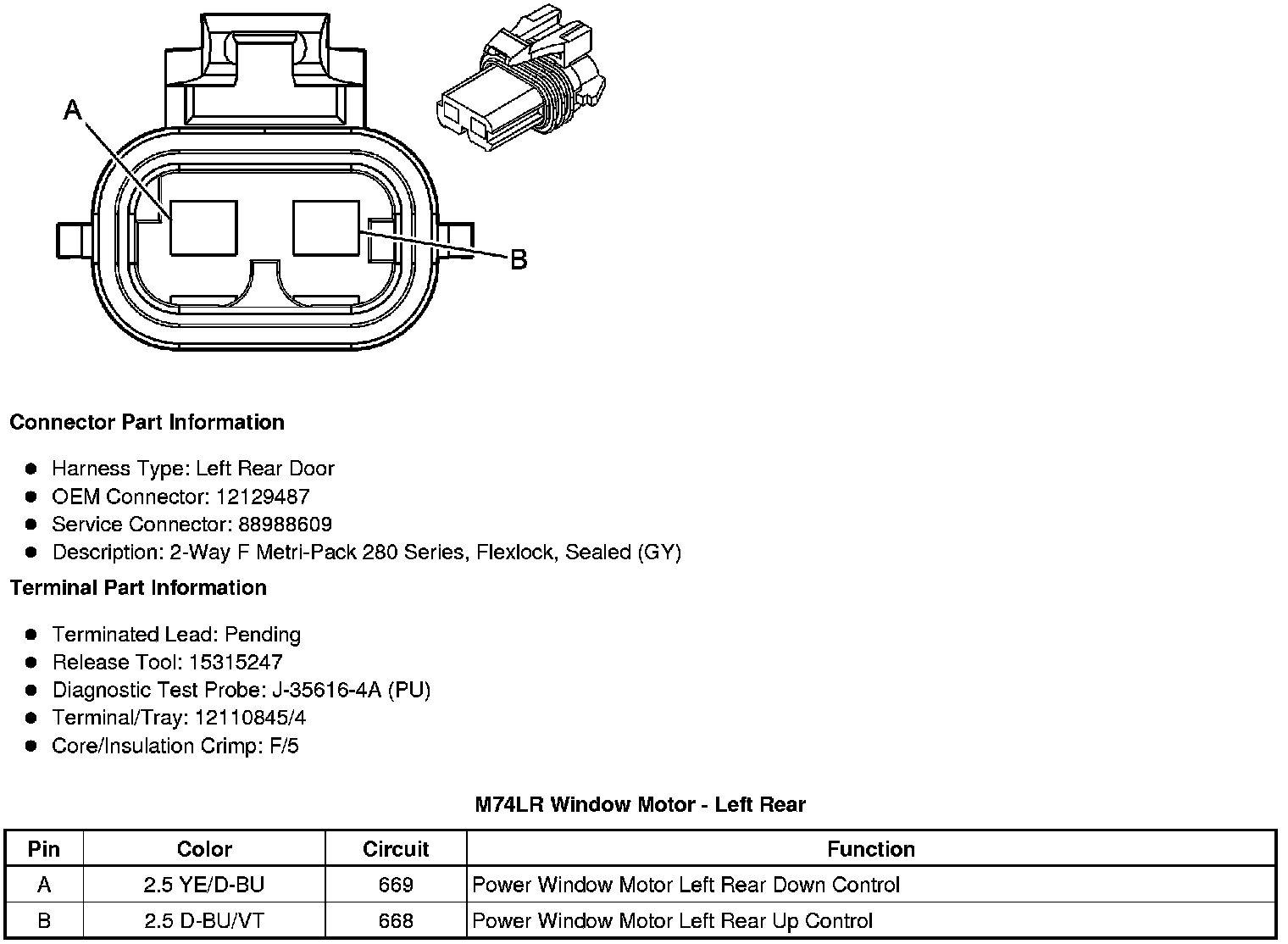

Component Connector End Views
M74LR Window Motor - Left Rear
