Power Window Motor
>>
M74D Window Motor - Driver

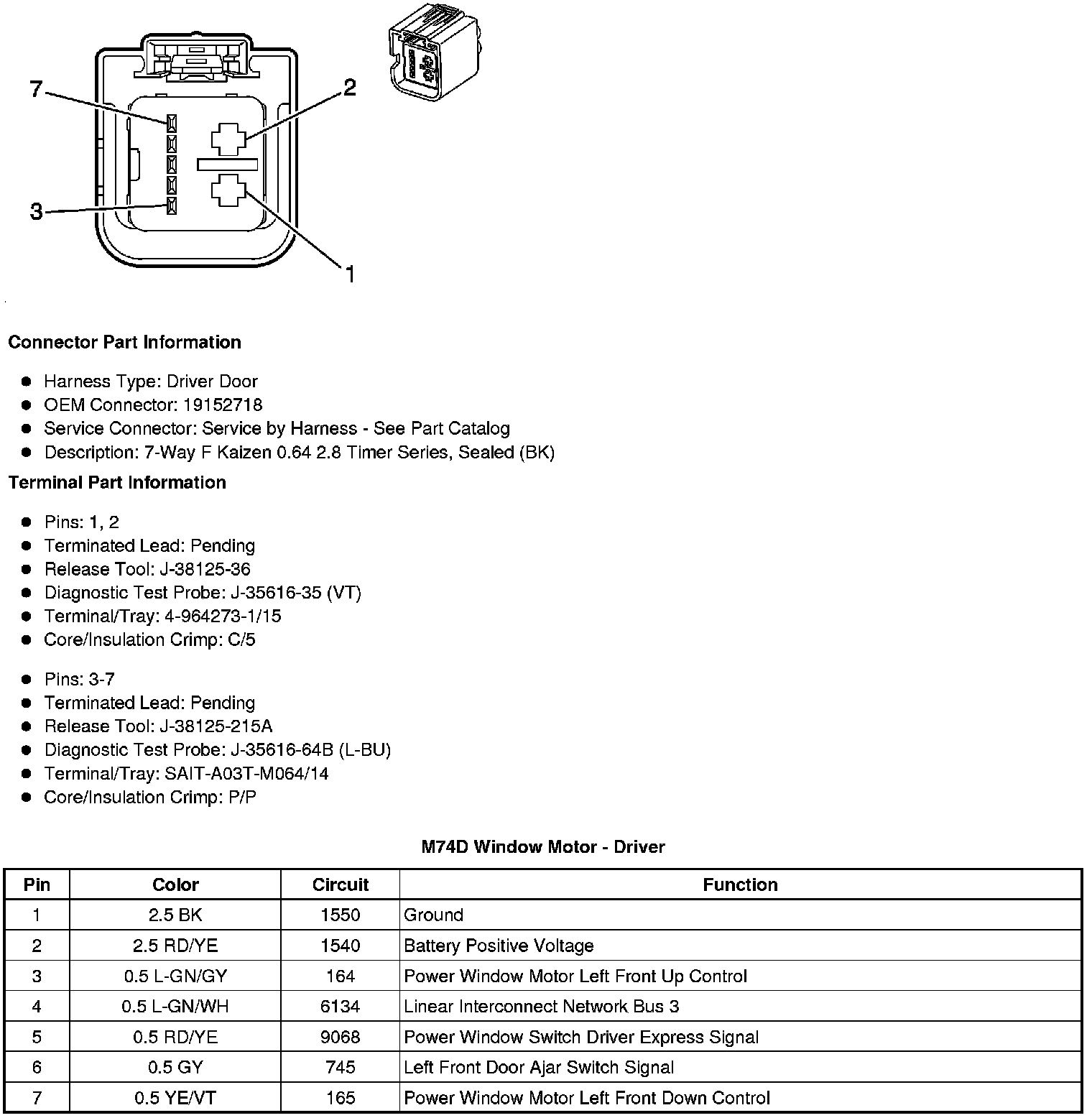

M74D Window Motor - Driver
Component Connector End Views
M74D Window Motor - Driver
