Power Seat Switch
>>
S65P Seat Lumbar Support Switch - Passenger (APH)
S65P Seat Lumbar Support Switch - Passenger (APH)

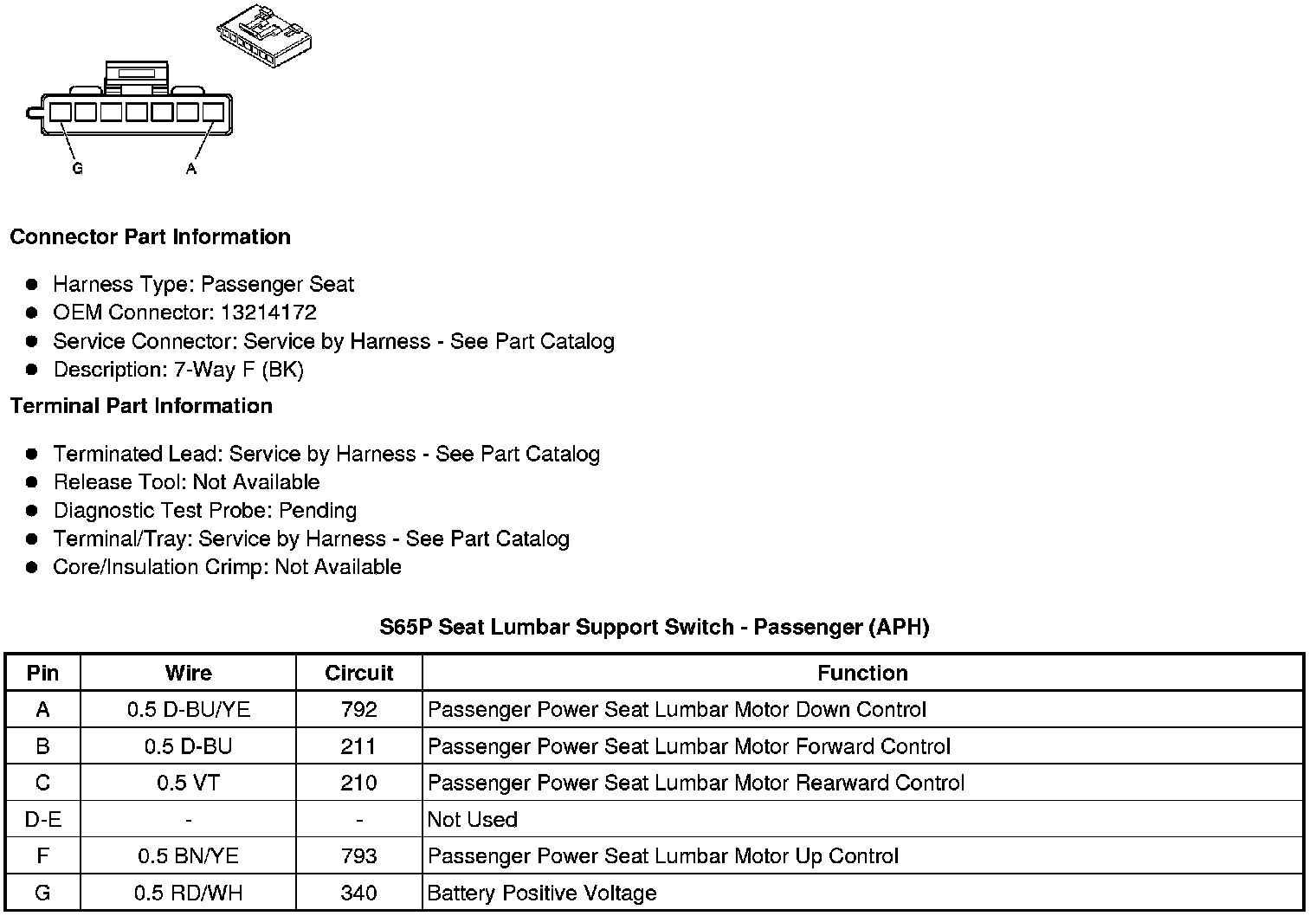

Component Connector End Views
S65P Seat Lumbar Support Switch - Passenger (APH)
