S65D Seat Lumbar Support Switch - Driver
S65D Seat Lumbar Support Switch - Driver

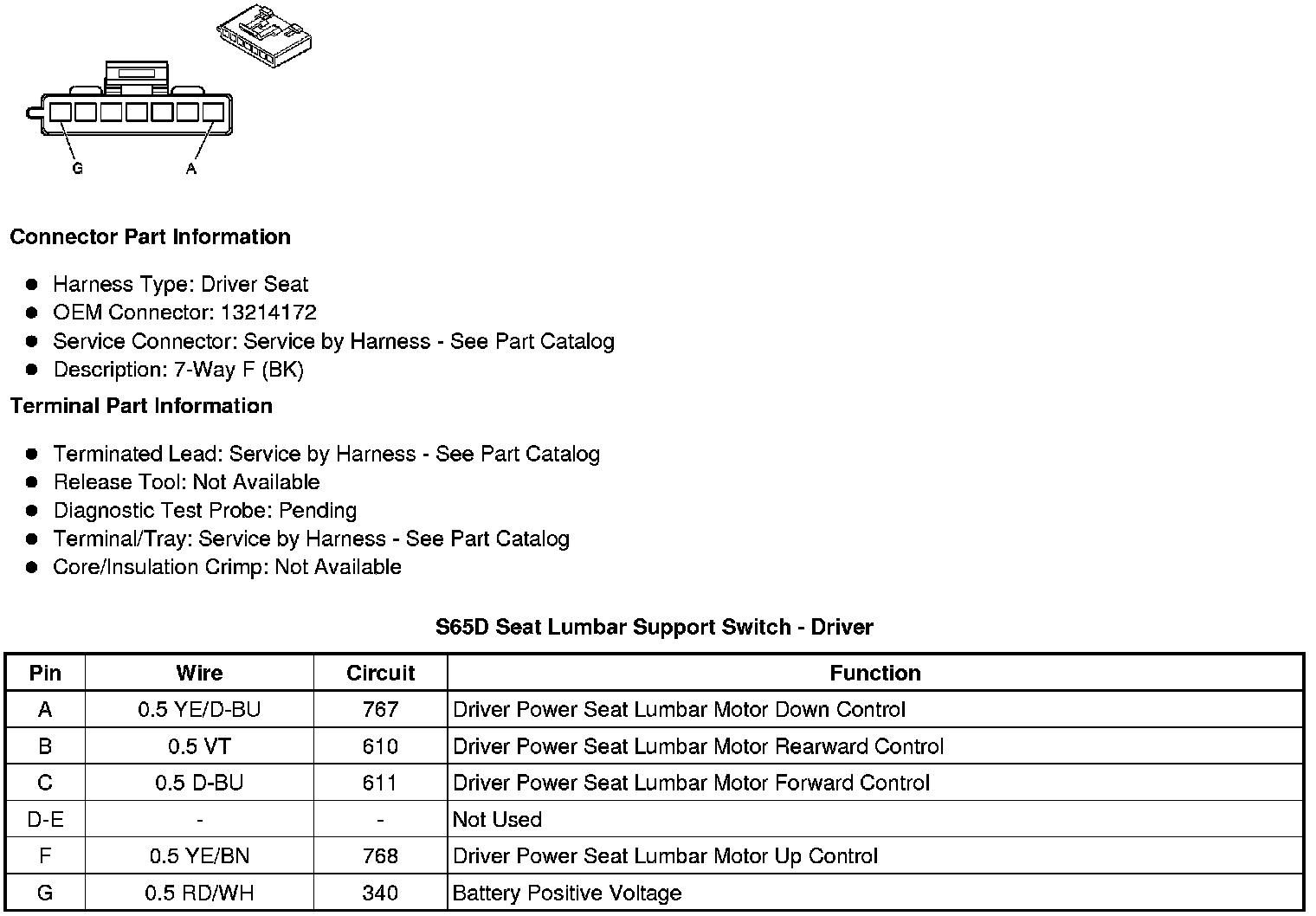

Component Connector End Views
S65D Seat Lumbar Support Switch - Driver
