LEMON Manuals
: Even more car manuals for everyone
Home
>>
Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>
Q51D Seat Lumbar Adjuster Valve Assembly - Driver
Q51D Seat Lumbar Adjuster Valve Assembly - Driver

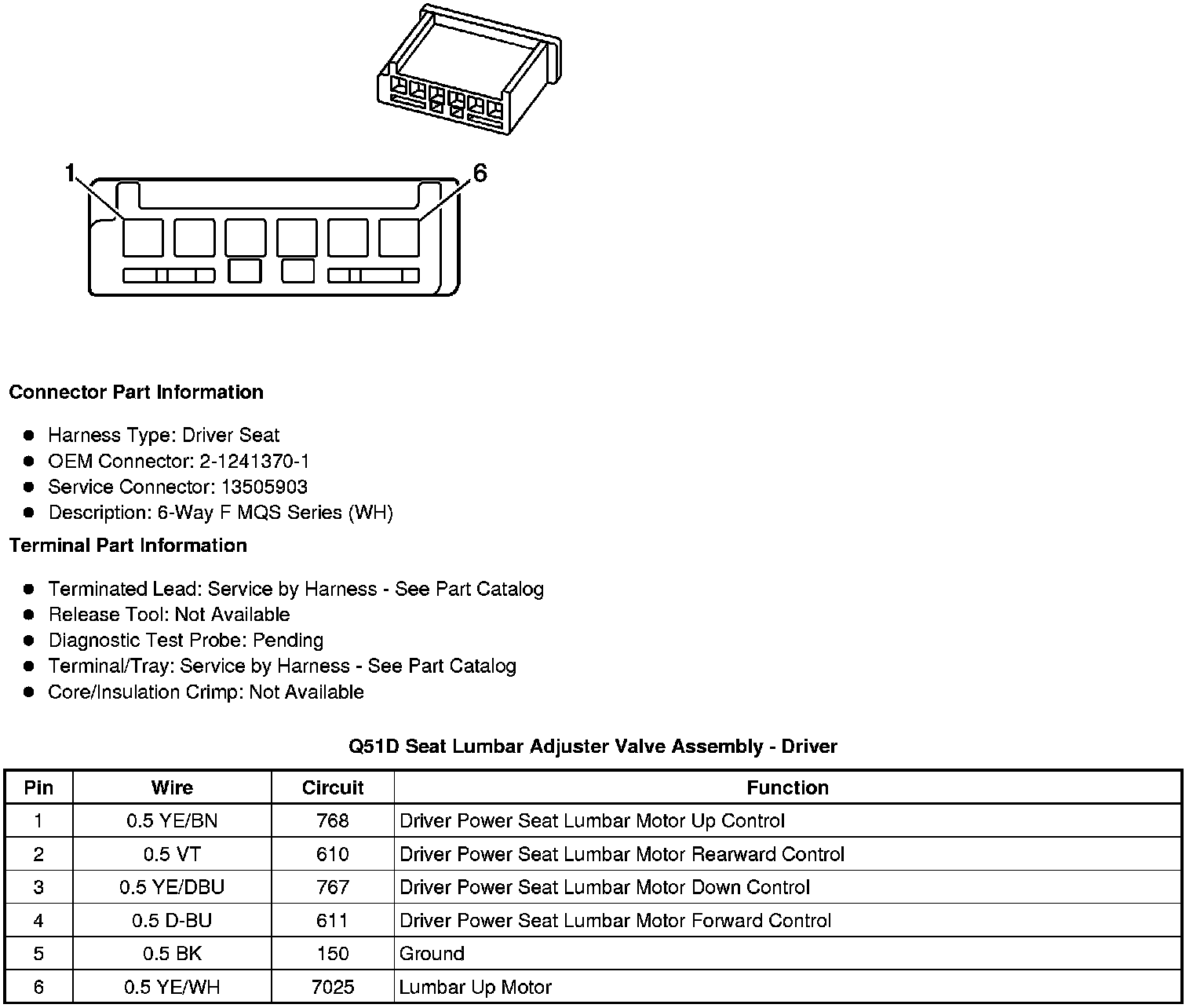

Component Connector End Views
Q51D Seat Lumbar Adjuster Valve Assembly - Driver
