B78H Rear Object Sensor - Right Outer (UD7)
B78H Rear Object Sensor - Right Outer (UD7)

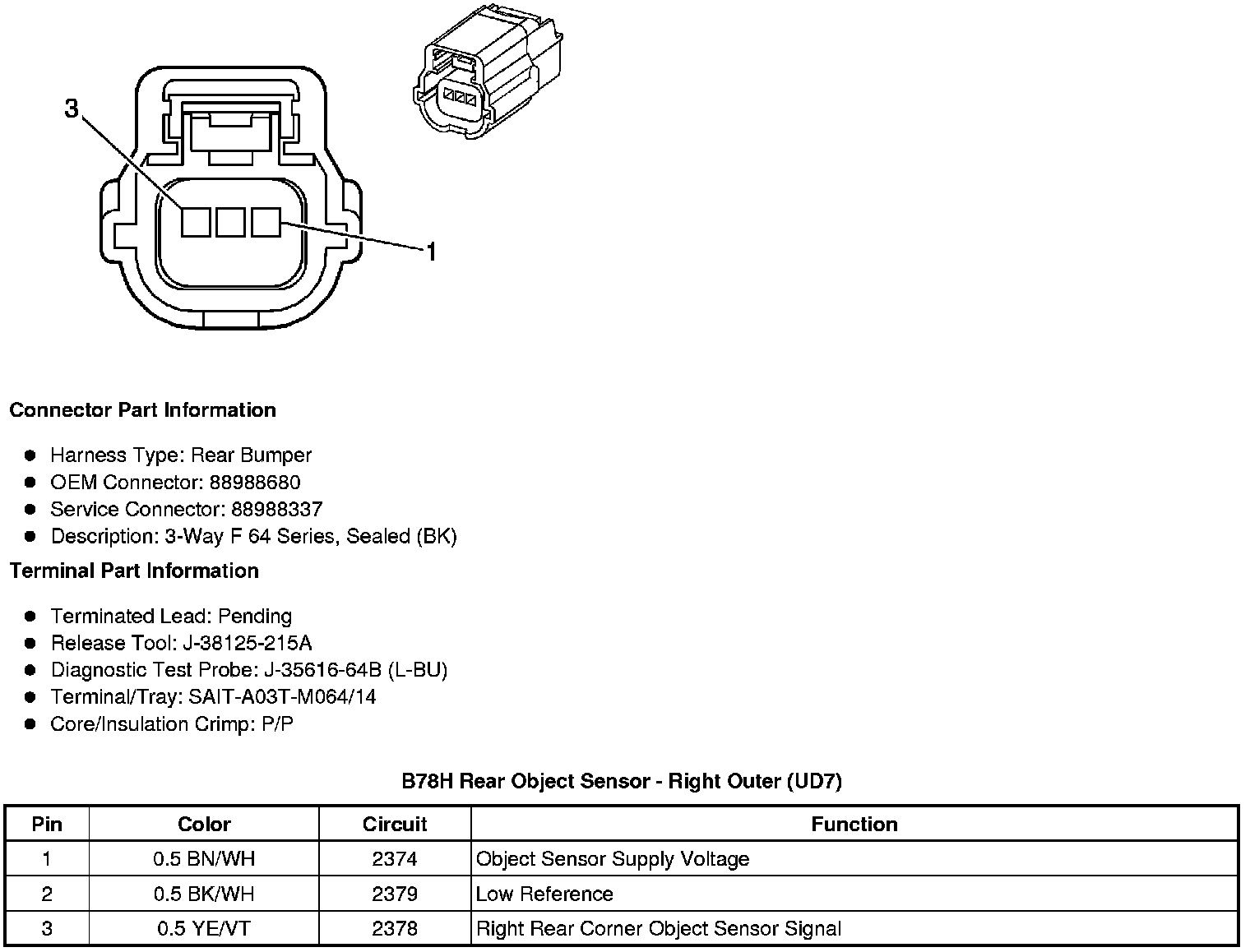

Component Connector End Views
B78H Rear Object Sensor - Right Outer (UD7)
