Home
>>
Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>

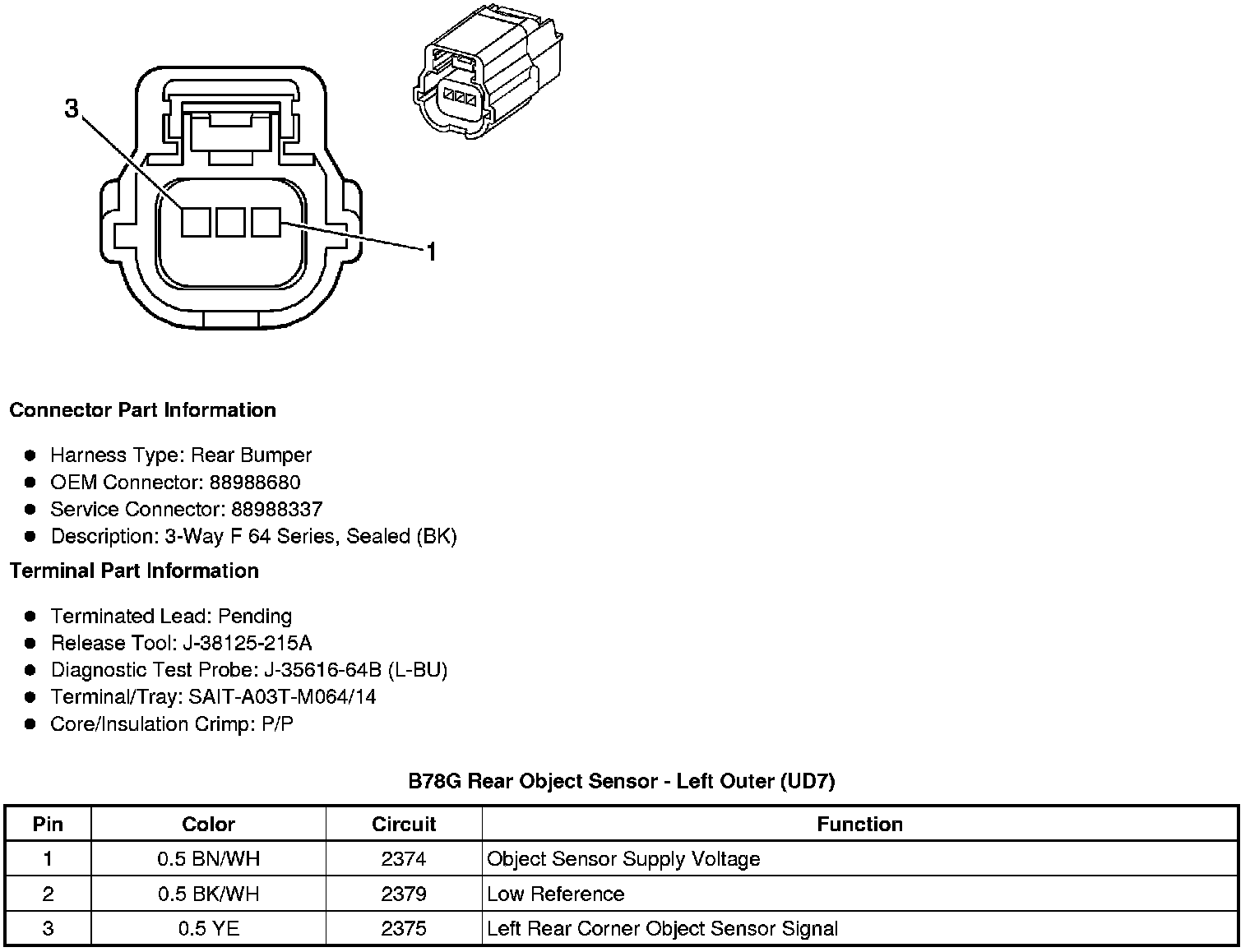

B78G Rear Object Sensor - Left Outer (UD7)
B78G Rear Object Sensor - Left Outer (UD7)
Component Connector End Views
B78G Rear Object Sensor - Left Outer (UD7)
