B78F Rear Object Sensor - Right Middle (UD7)
B78F Rear Object Sensor - Right Middle (UD7)

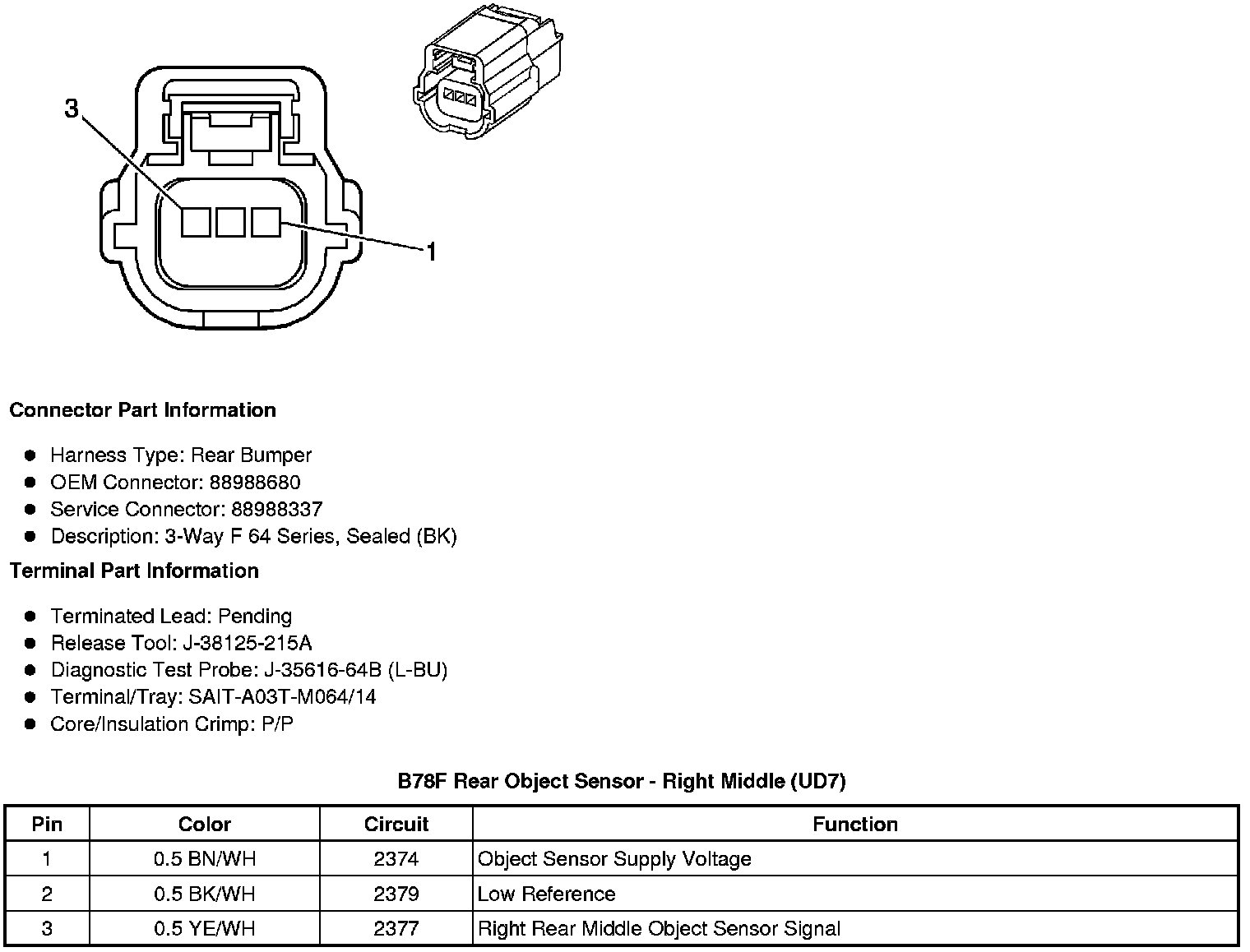

Component Connector End Views
B78F Rear Object Sensor - Right Middle (UD7)
