Oxygen Sensor
>>

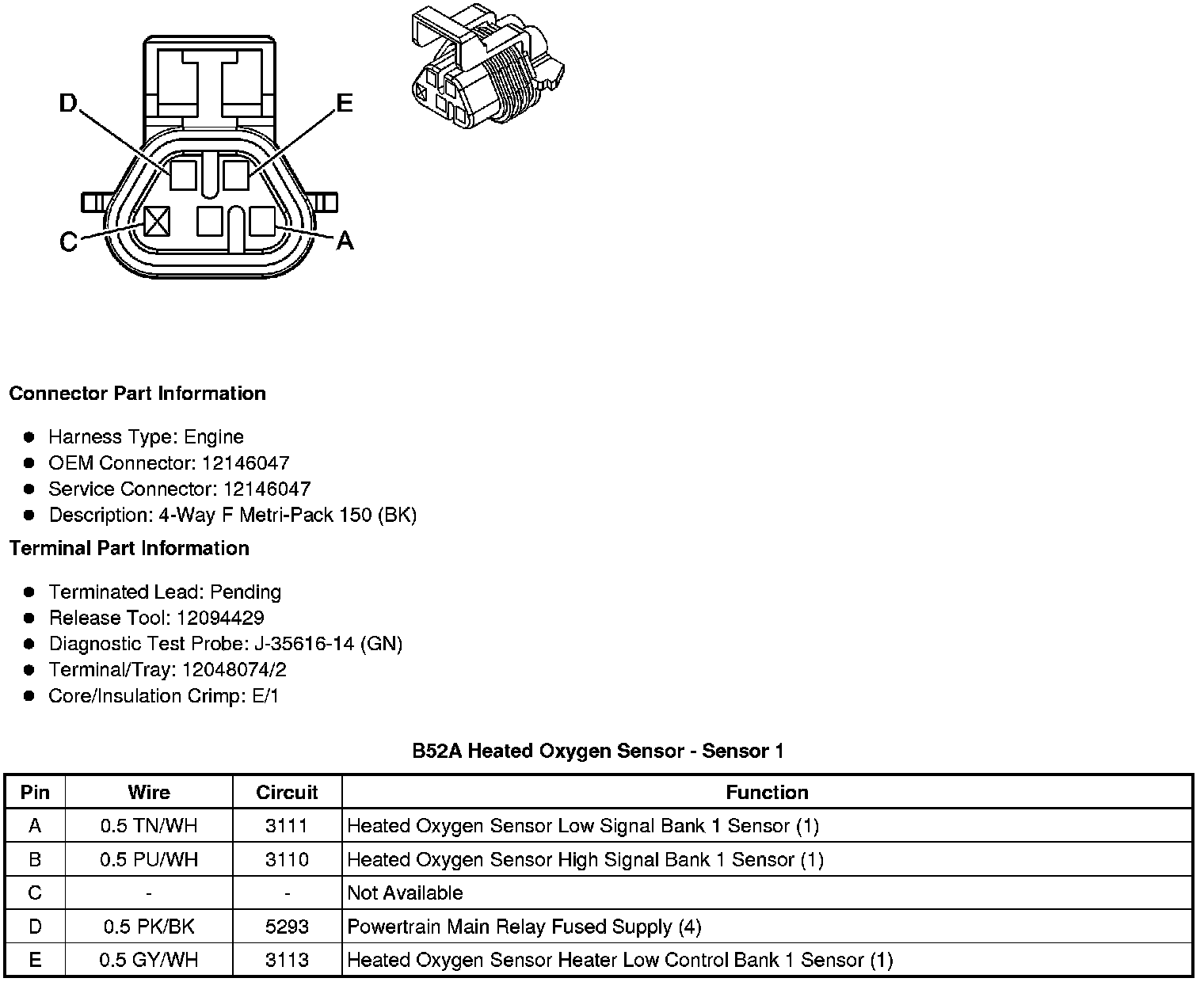

B52A Heated Oxygen Sensor - Sensor 1
B52A Heated Oxygen Sensor - Sensor 1
Component Connector End Views
B52A Heated Oxygen Sensor - Sensor 1
