Multiple Junction Connector
>>
Connector End Views By Name
>>

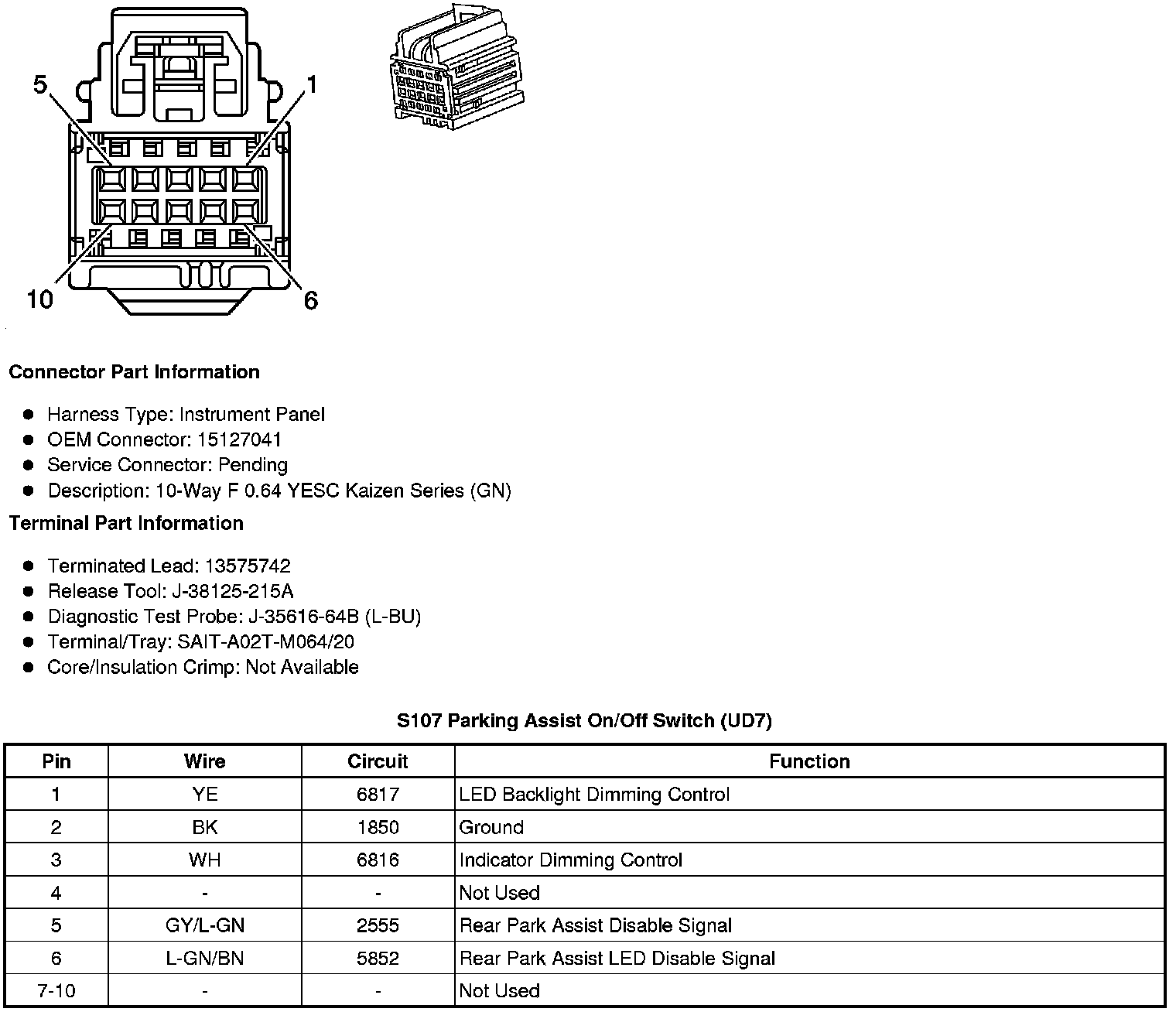

S107 Parking Assist On/Off Switch (UD7)
S107 Parking Assist On/Off Switch (UD7)
Component Connector End Views
S107 Parking Assist On/Off Switch (UD7)
