Multiple Junction Connector
>>
Connector End Views By Name
>>
Q51P Seat Lumbar Adjuster Valve Assembly - Passenger (APH)
Q51P Seat Lumbar Adjuster Valve Assembly - Passenger (APH)
Component Connector End Views

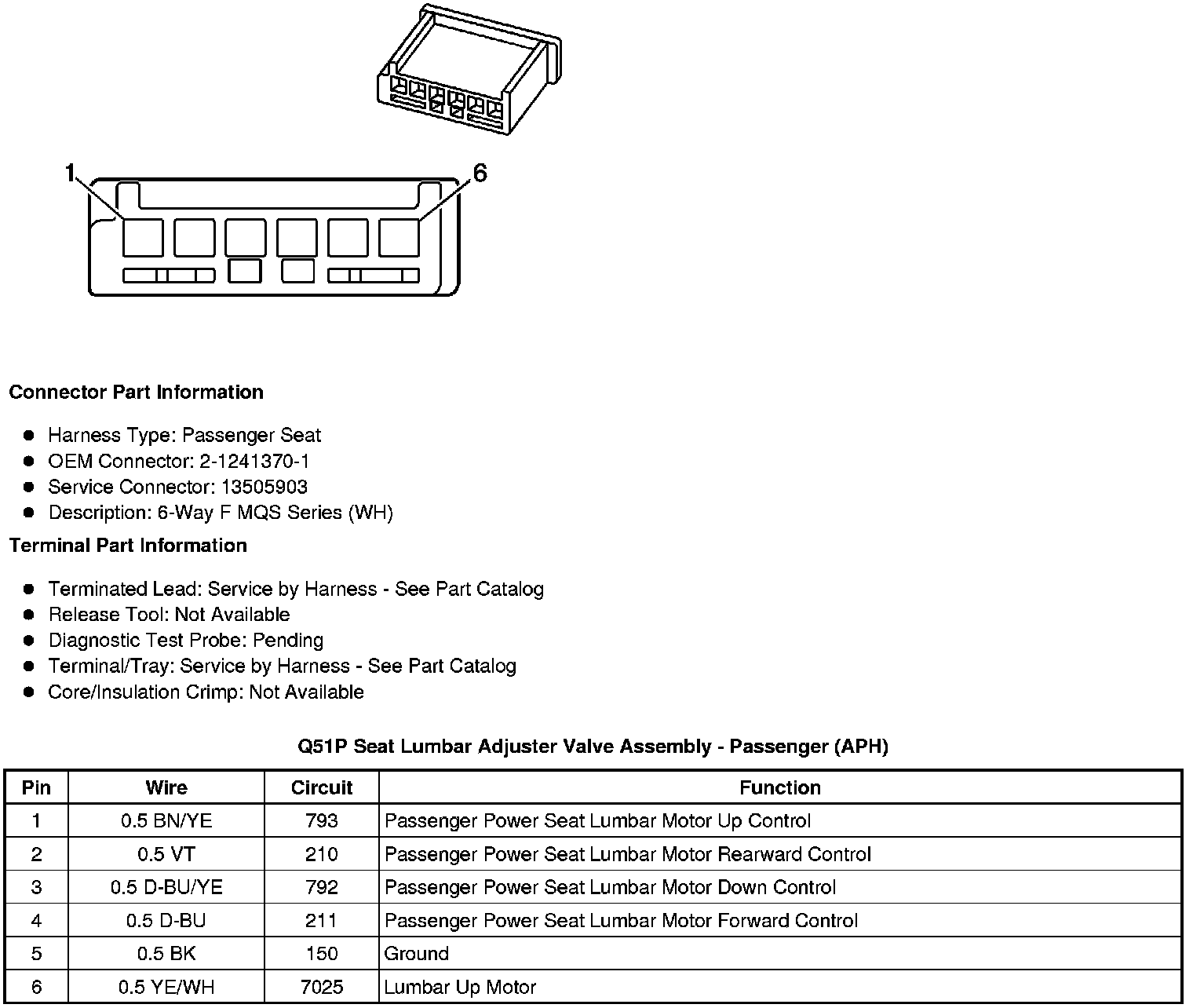

Q51P Seat Lumbar Adjuster Valve Assembly - Passenger (APH)
