K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)

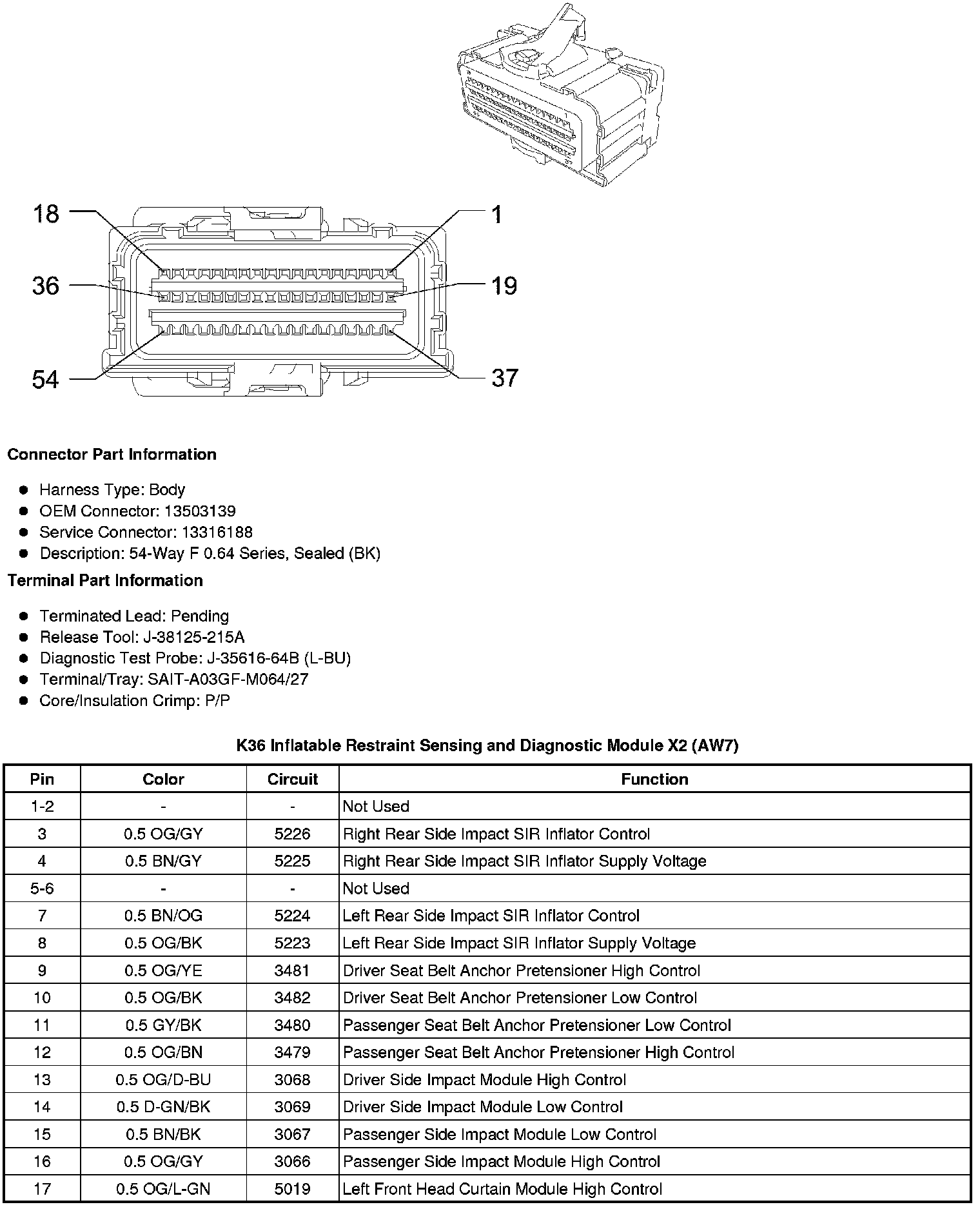

Component Connector End Views

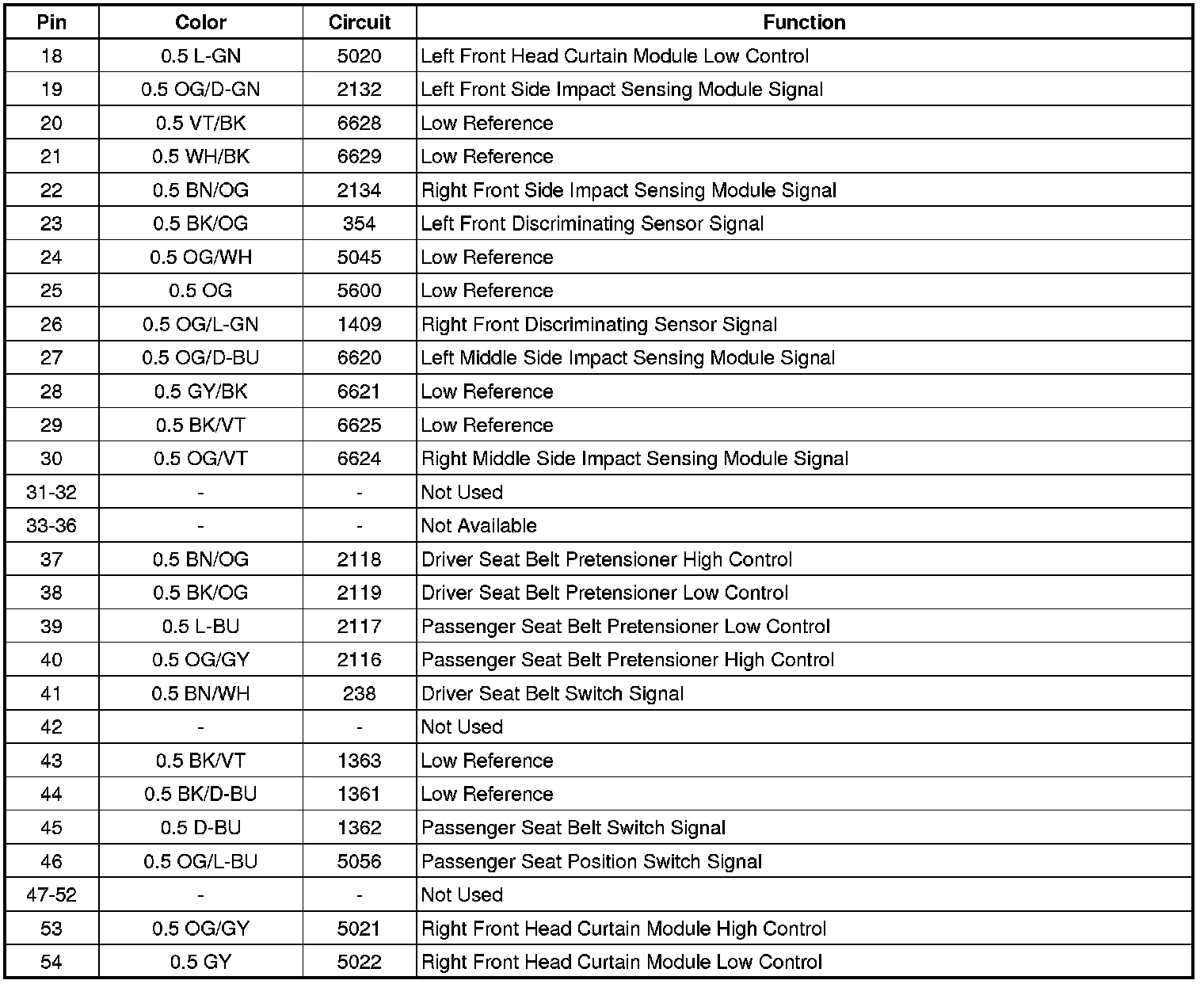

K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AW7)
