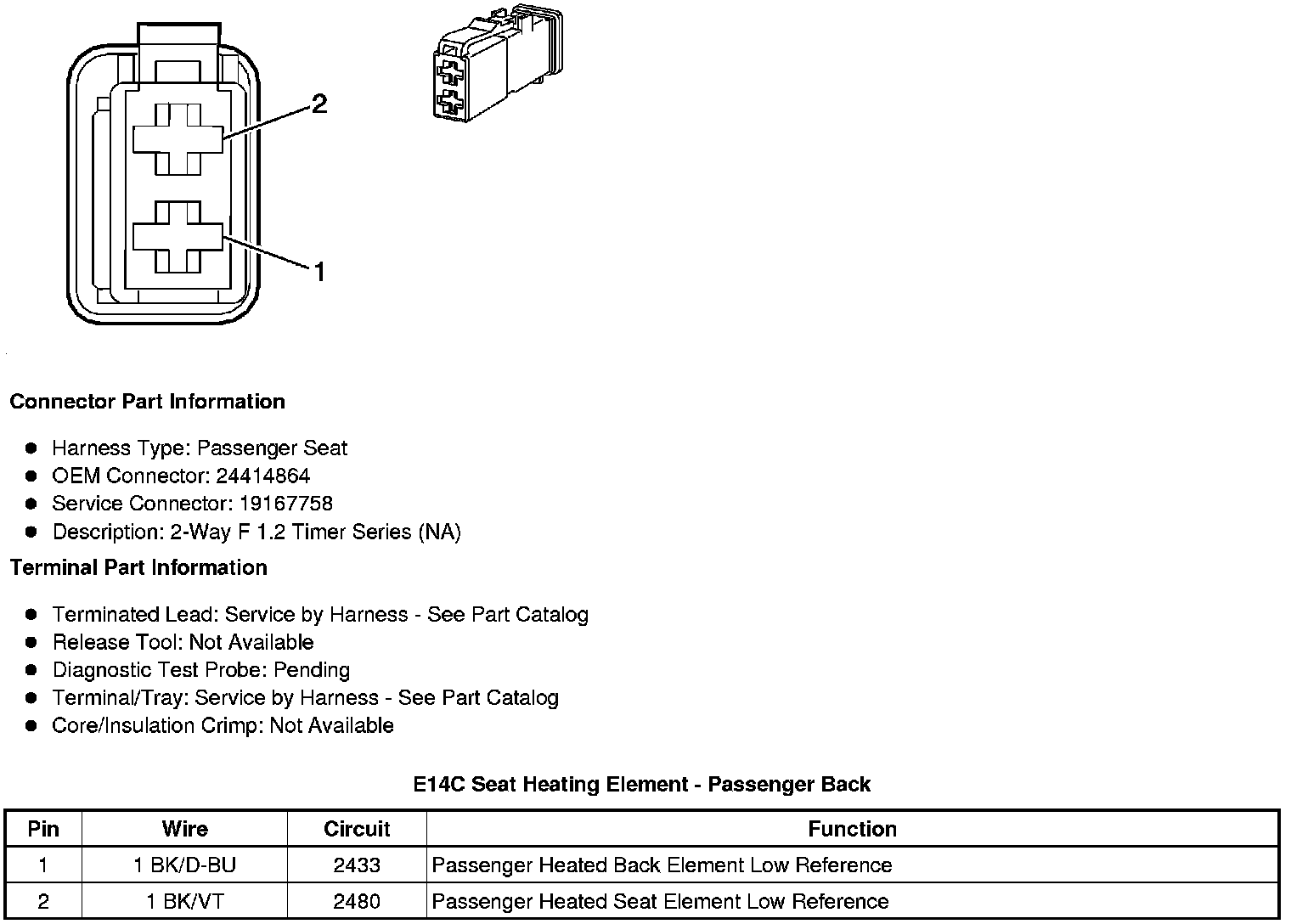

E14C Seat Heating Element - Passenger Back
E14C Seat Heating Element - Passenger Back
Component Connector End Views
E14C Seat Heating Element - Passenger Back
