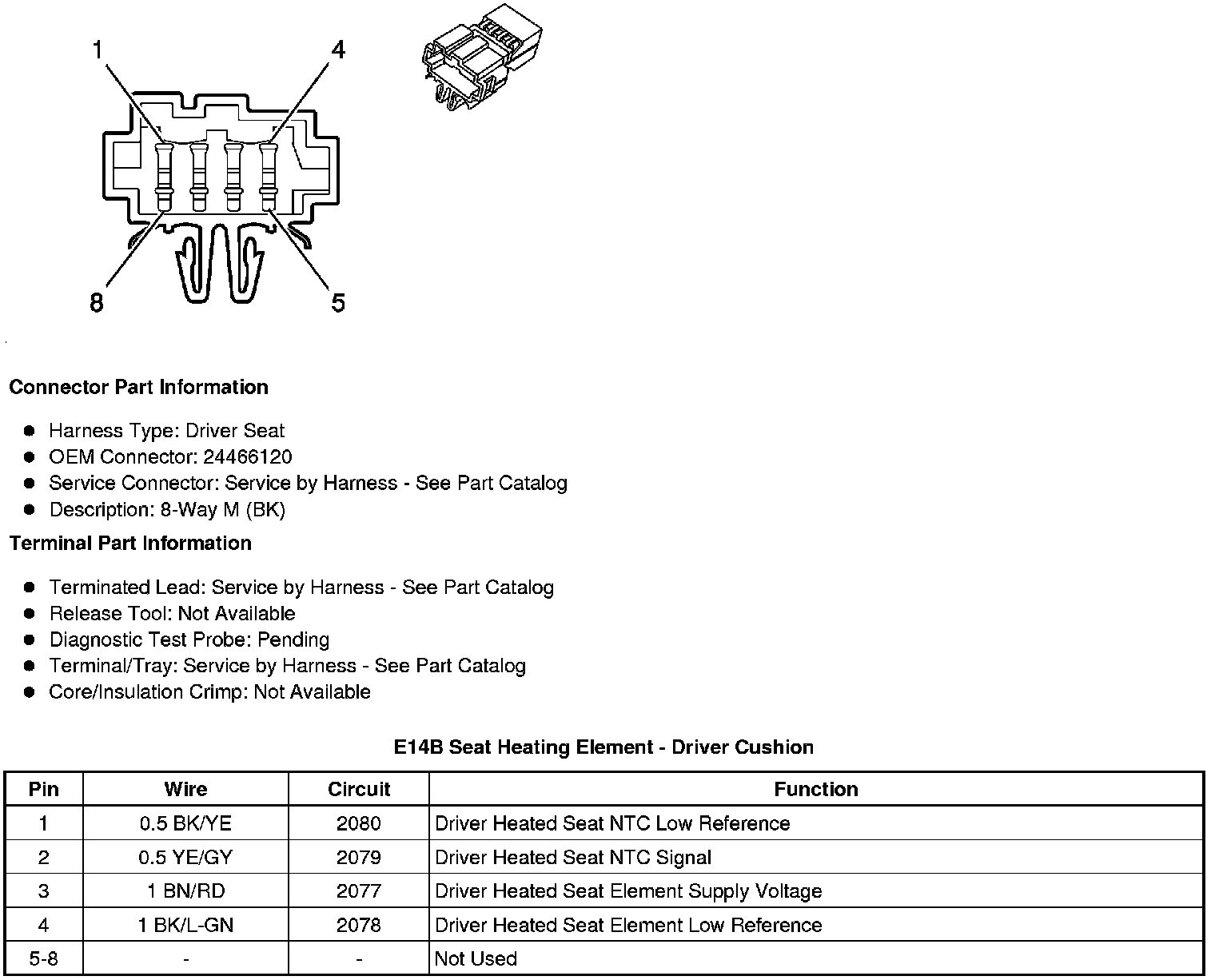

E14B Seat Heating Element - Driver Cushion
E14B Seat Heating Element - Driver Cushion
Component Connector End Views
E14B Seat Heating Element - Driver Cushion
