A10 Inside Rearview Mirror
A10 Inside Rearview Mirror

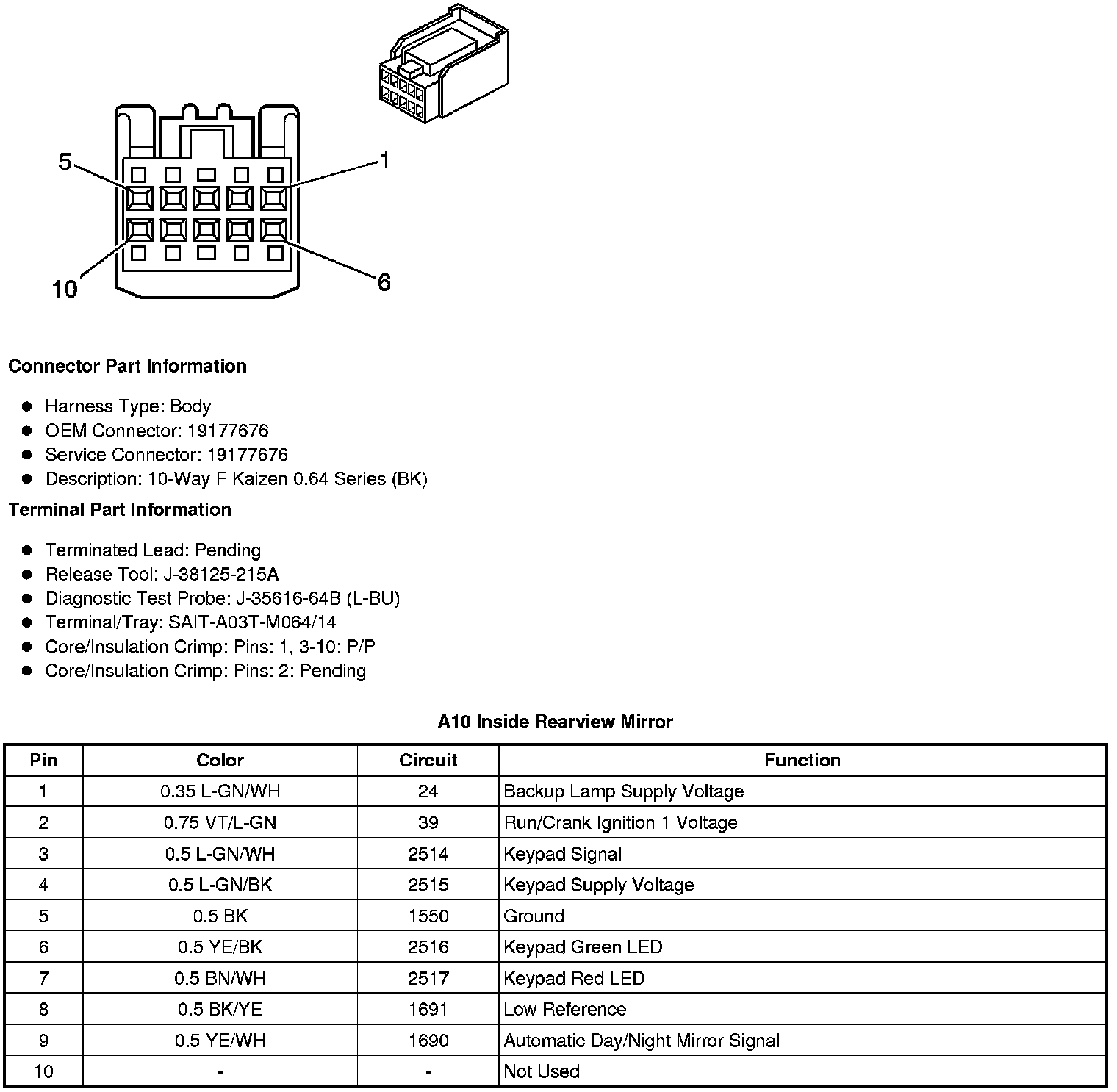

Component Connector End Views
A10 Inside Rearview Mirror
