Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Marker Lamp
>>
E2LF Side Marker Lamp - Left Front (TT4)
E2LF Side Marker Lamp - Left Front (TT4)

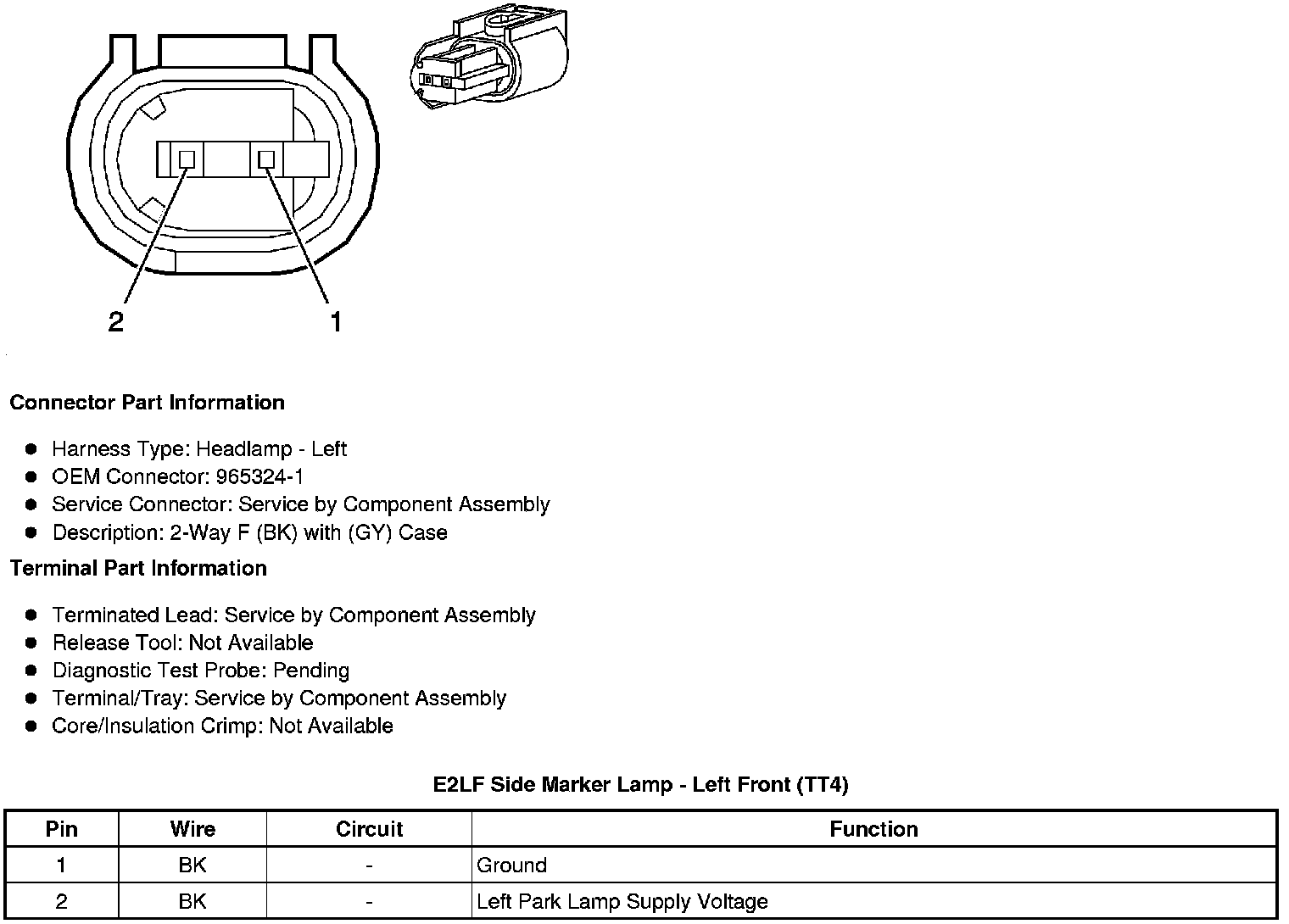

Component Connector End Views
E2LF Side Marker Lamp - Left Front (TT4)
