License Plate Lamp
>>
E7R License Plate Lamp - Right
E7R License Plate Lamp - Right

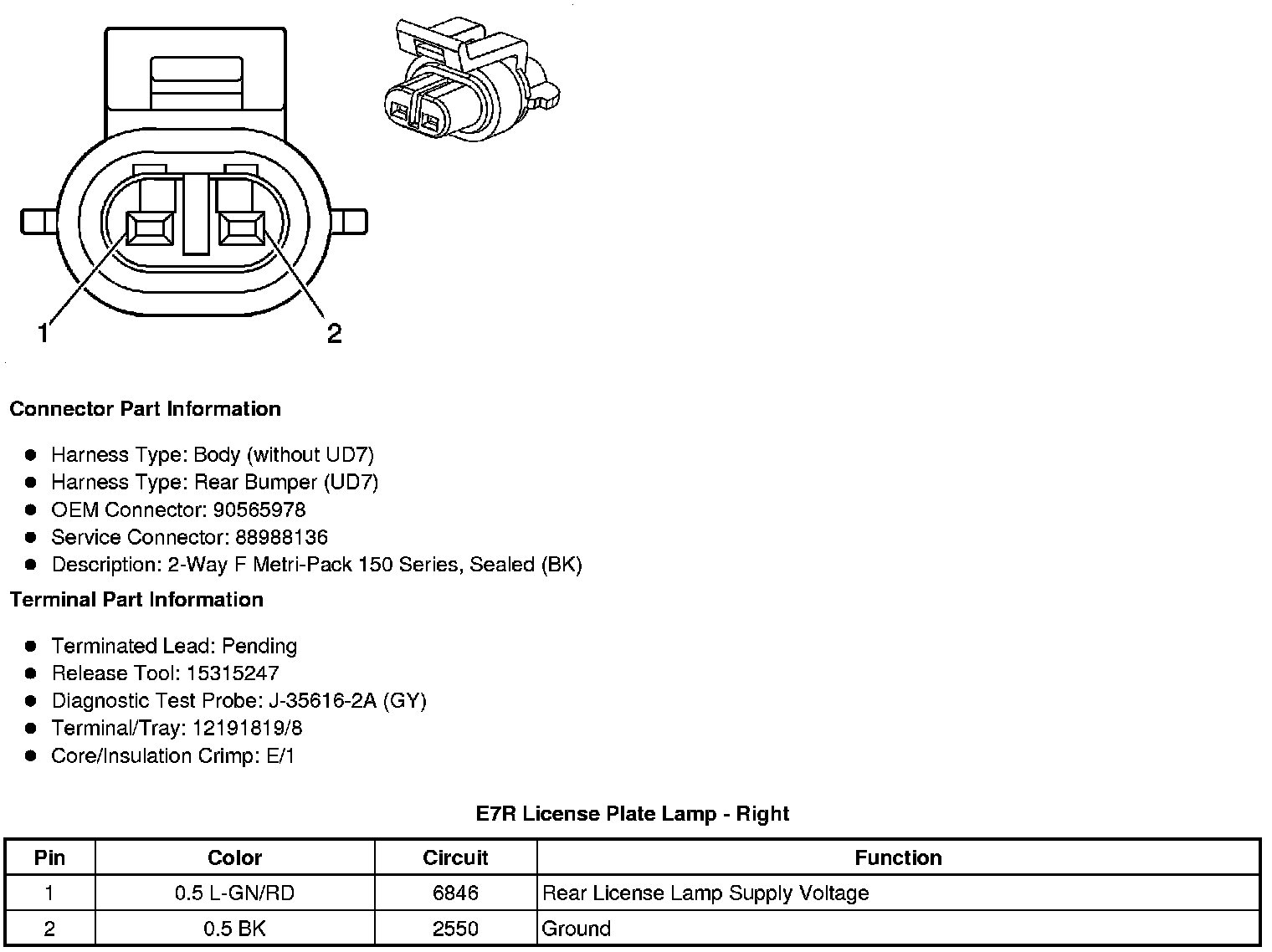

Component Connector End Views
E7R License Plate Lamp - Right
