Buick
>>
2011
>>
Regal L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>

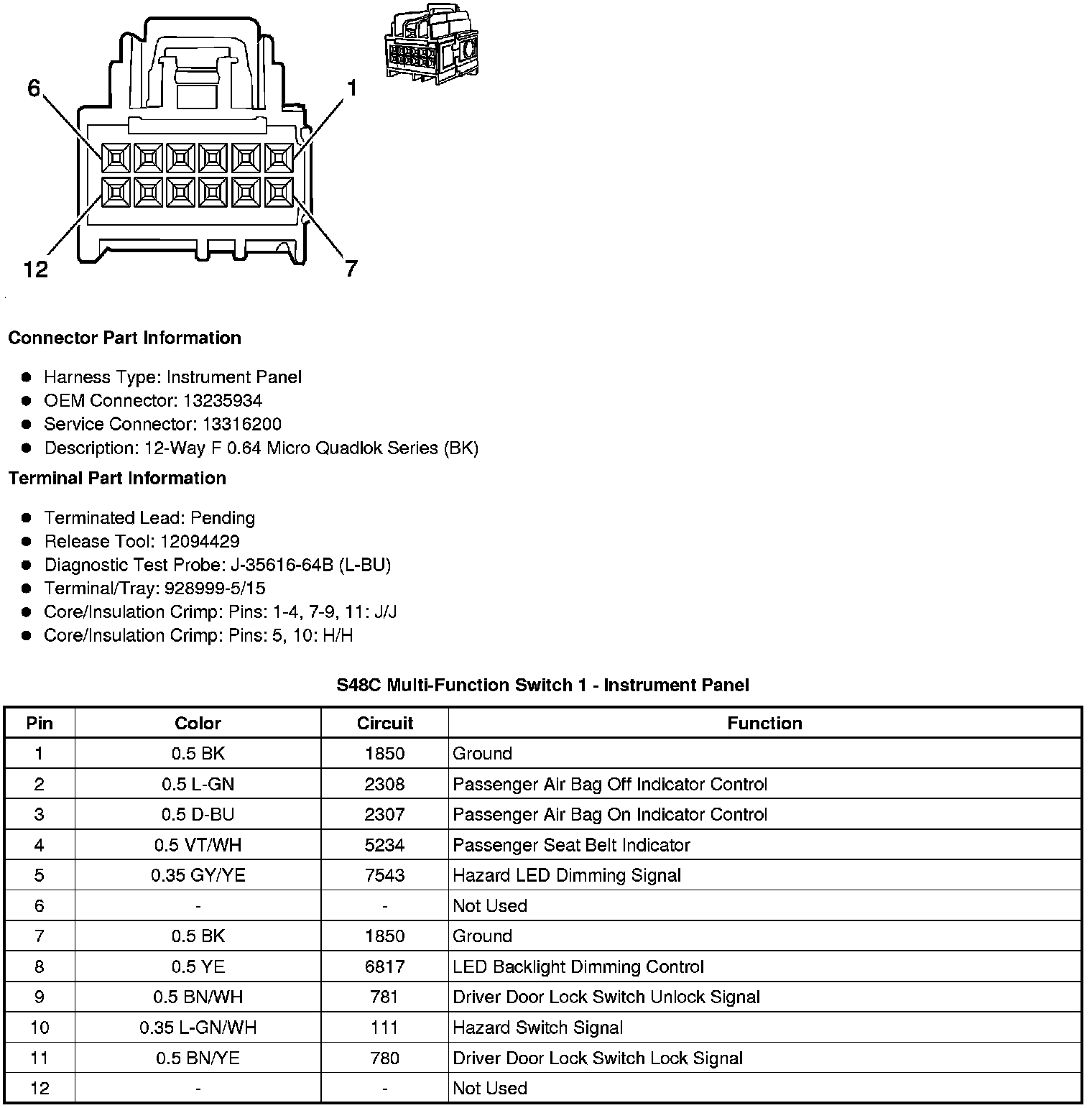

S48C Multi-Function Switch 1 - Instrument Panel
S48C Multi-Function Switch 1 - Instrument Panel
Component Connector End Views
S48C Multi-Function Switch 1 - Instrument Panel
