Instrument Cluster / Carrier
>>
P16 Instrument Cluster
P16 Instrument Cluster

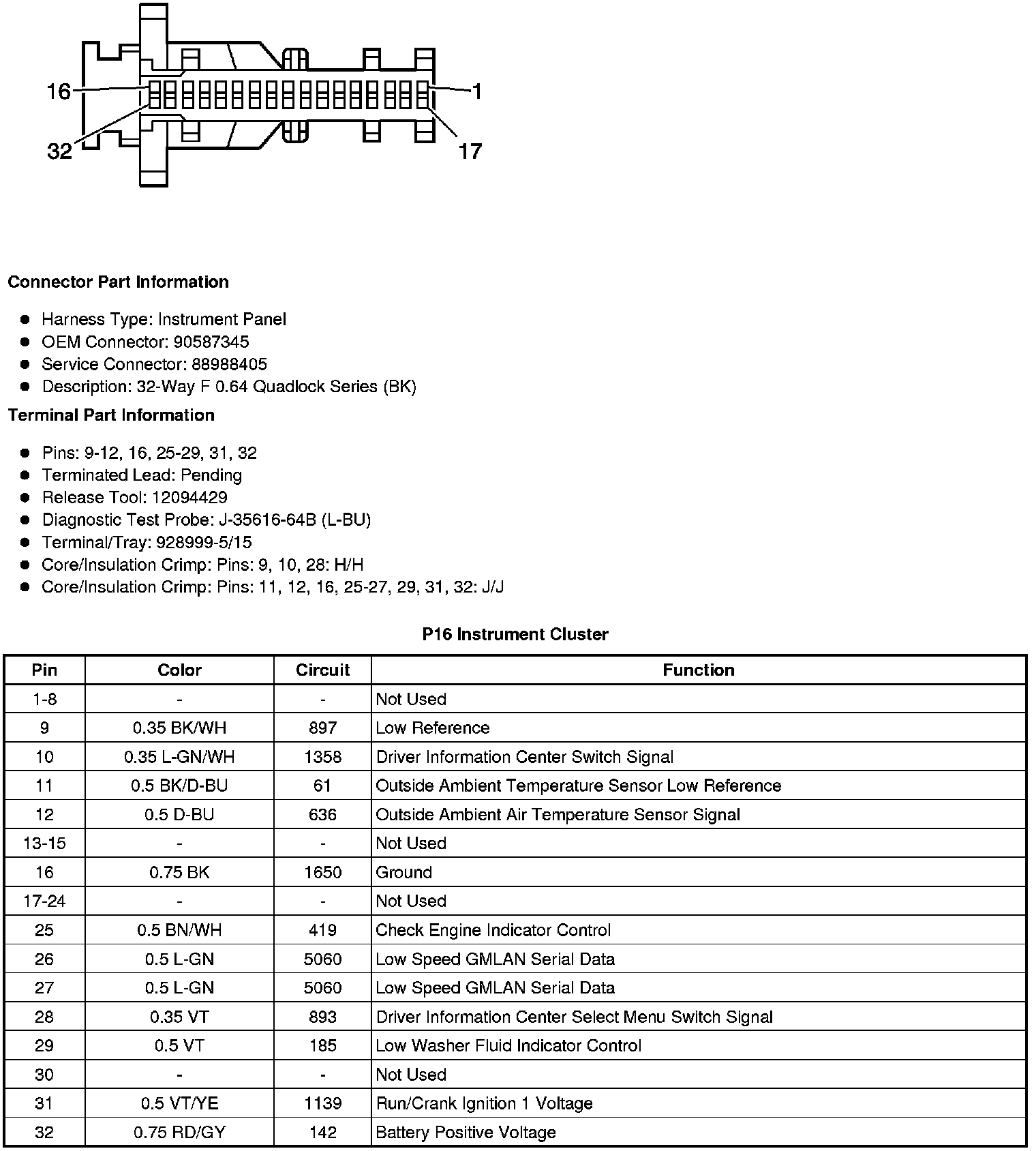

Component Connector End Views
P16 Instrument Cluster
